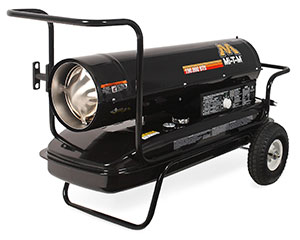

Mi-T-M Portable Heaters

190,000 BTU Kerosene Forced Air

Uses:

  • Workshops
  • Garages
  • Construction Sites
  • Farms with proper ventilation


Product Specs

Model No: MH-0190-0M10
Heat Output: 190,000 BTU
Hot-Air Flow: 630 CFM
Air Pump Pressure: 7.5 PSI
AC Power: 120 Volt/60Hz/2.7 Amp
Motor Size: 1/4 HP
Fuel Tank Capacity: 13.0 gallons
Fuel Consumption: 1.42 gal./hr.
Max. Operating Hours: 9.1 hours
Heating Area: 4,300 sq. ft.
Multi-Fuel Capable: Yes

Product Features

Frame:

  • Rugged steel body
  • Extension cord wrap
  • Powder coated hood and fuel tank
  • Powder coated steel handles for easy lifting
  • 10-inch pneumatic tires
  • Spare parts storage system (located on back of unit)
  • Fuel drain plug

Burner Head:

  • Clamped hoses
  • Secured photo cell
  • 1-piece cast aluminum
  • Secured fully insulated ignition connection

Motor:

  • Heavy-duty, high quality cast aluminum enclosed electric motor

Components:

  • Built-in temperature control thermostat with control dial and digital temperature read-out
  • High performance fan
  • Power switch
  • Secured internal components
  • Integral overheat and flame-out safety
  • Fuel gauge
  • Integrated fuel pressure gauge
  • Oversized fuel cap
  • High limit temperature shut-off
  • Sure start ignition for cold temperature starts
  • Dual connector ignitor
  • Error indicator read-out

Factory tested for multiple fuels:

  • Kerosene, JP8/Jet A fuel, No. 1 or No. 2 fuel oil and No. 1 or No. 2 diesel fuel
