WSA-120-0M30

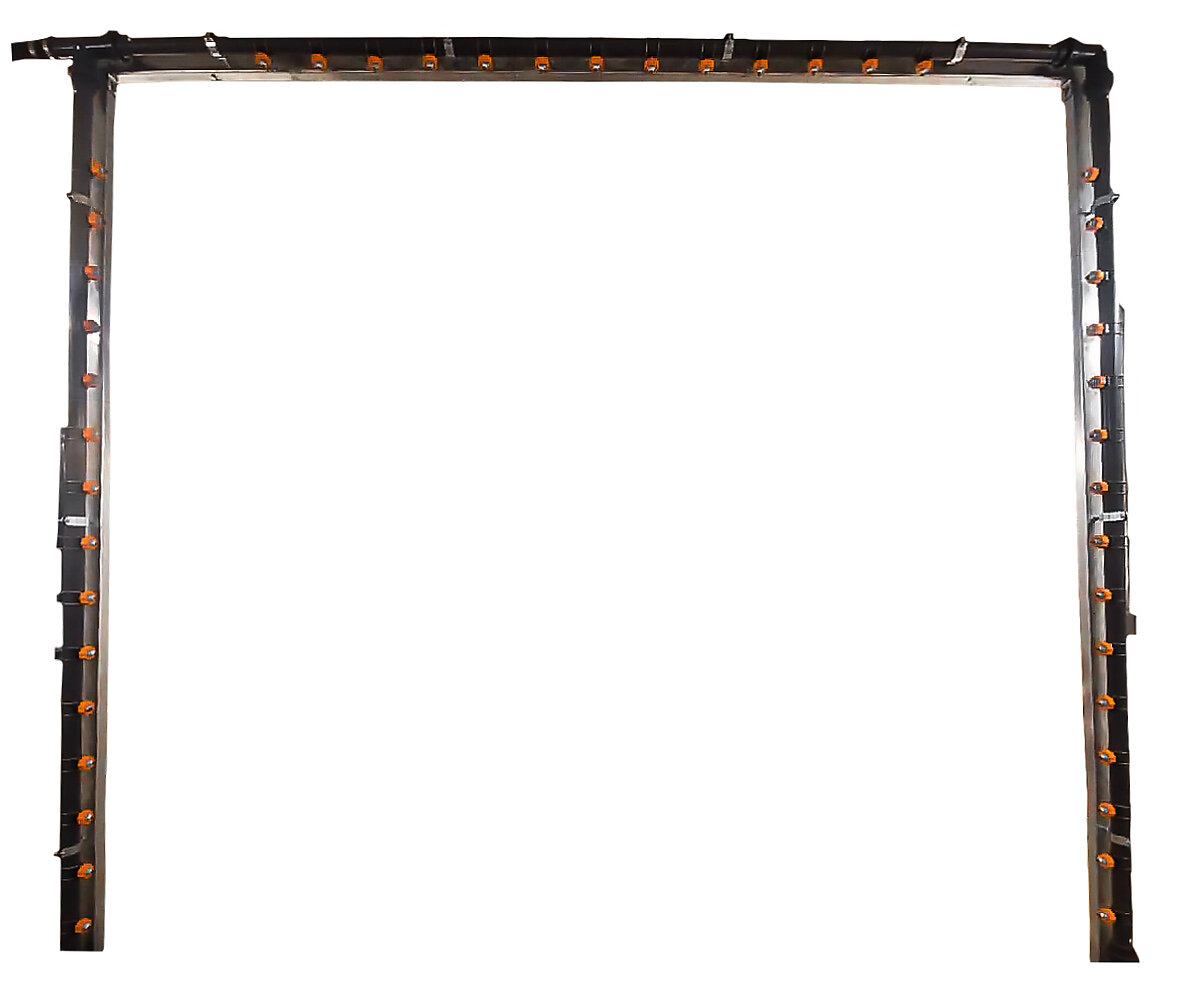

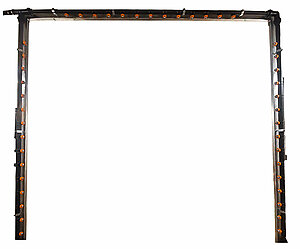

Constructed with aluminum frames, undercarriage spray bar and embedded spray nozzles, this system is customizable and designed for all types of drive-through vehicle wash systems.

Features
·Photo-eye controls
·Aluminum frames and undercarriage spray bar
·Embedded spray nozzles
·250-gallon holding tanks
·Customizable builds

Specifications

  • Soap Arch GPM @ PSI

    40 @ 30

  • Wash Arch GPM @ PSI

    120 @ 60

  • Undercarriage GPM @ PSI

    35 @ 110

  • Rinse Arch GPM @ PSI

    70 @ 22

  • Pump

    Custom

  • Power Requirements

    230V/460V, 3Ø

  • Spray Bar Dimensions

    Custom

  • Pump Frame Dimensions (LxWxH)

    45 x 21 x 67 in.

  • Holding Tank Dimensions (WxH)

    36 x 62 in.

Weights & Dimensions

  • Net Weight

    0.00 lbs.

  • Shipping Weight

    0.00 lbs.

  • Length

    0.00 in.

  • Width

    0.00 in.

  • Height

    0.00 in.

Options

  • No options
