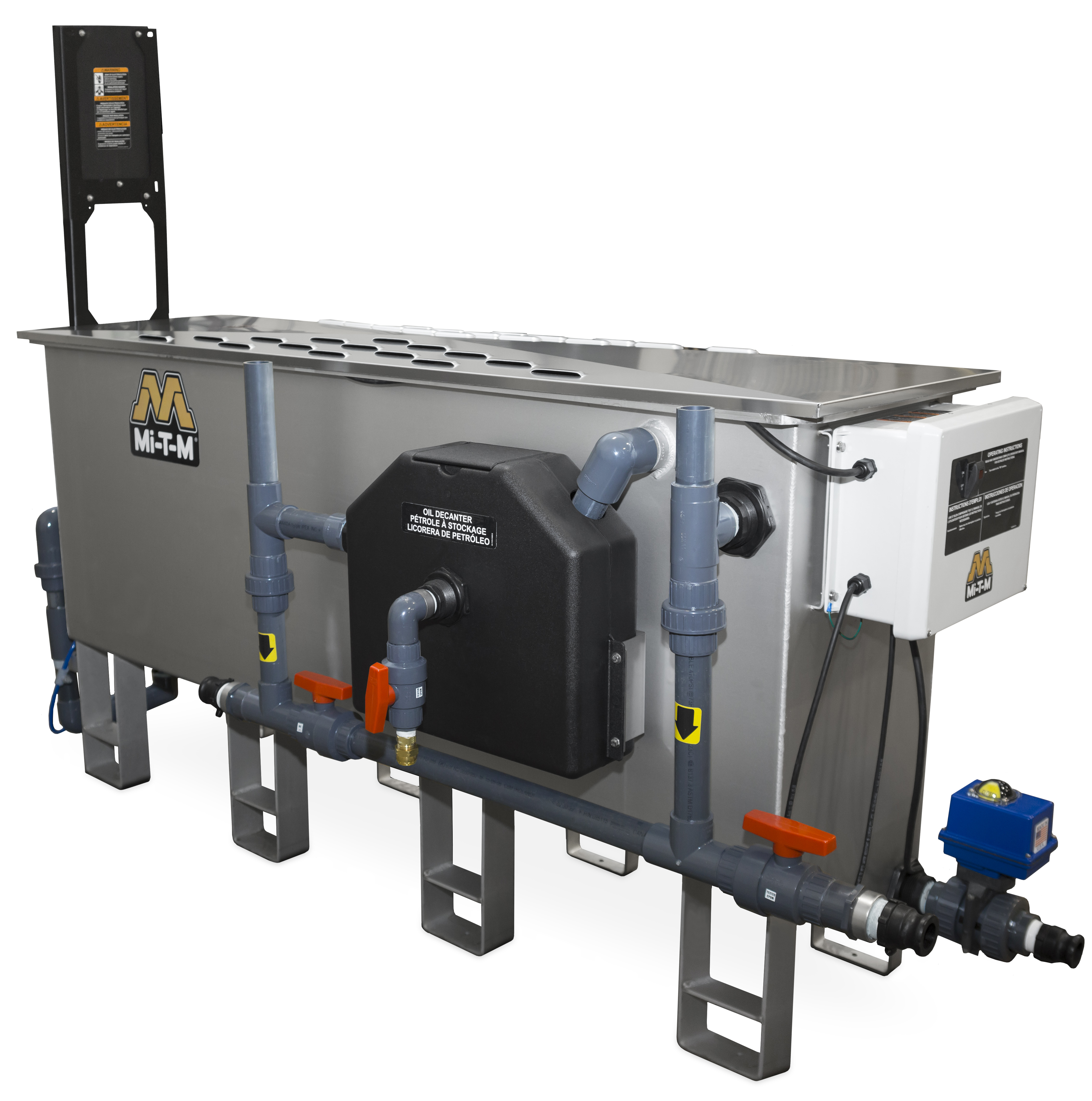

Above-Ground Water/Oil/Solids Separators - WOS-30Series

Get Started

WOS-30Series

Designed to remove free oils from wash water before discharging to a sanitary sewer, the water/oil/solids separators will reduce the amount of suspended solids while removing hydrocarbons.

Features
·Corona discharge ozone system
·Oil skimmer/decanter
·Discharge port
·Oil coalescing media
·1.0 HP surface-mount sump pump
·3-stage stainless-steel tank with sloped bottom design for easier solids removal
·ETL listed NEMA-4 rated corrosion-proof control panel

Recommended Applications
·Rental Yards
·Heavy Equipment Dealers
·Trucking Facilities
·Military Bases
·Truck Rental Fleets
·Diesel Repair Facilities
·Forklift Washing Operations
·Aircraft Maintenance and Restoration
·Shipyards
·Municipalities/State DOTs
·Oil Fields
·Engine Rebuilders and Manufacturers

Models Available
WOS-30-0M10 – 120V, 1Ø, 15.0A; 1.0 HP, 120V In-line strainer pump
WOS-30-0M30 – 208-230V, 3Ø, 5.0A; 1.0 HP, 230V In-line strainer pump

The Importance of a Proper Pit System
Once equipment is washed, the untreated wash water flows into your pit system. A proper pit system for your application is the first step in proper wash water treatment and a critical element in any wash water recycle system.

Consult Mi-T-M Corporation or your local distributor to determine the pit system configuration that works best for your application.

Specifications

Flow Rate

0-30 GPM
Coalescing Media

1,152 sq. ft.
Tank Holding Capacity

340 gallon

Weights & Dimensions

Net Weight

0.00 lbs.
Shipping Weight

865.00 lbs.
Length

97.00 in.
Width

50.00 in.
Height

44.00 in.

Options

WX-0001 Continuous Recirculation

Recirculates back to the pit to prevent water from becoming stagnant
WX-0059 230V, 1Ã˜

Upgrades 120V model to operate at 230V
WX-0060 460V, 3Ã˜

Upgrades 208-230V model to operate at 460V
