Undercarriage Wash System - WCU

Undercarriage Wash System
expand-icon

Resources

Find A Local Dealer

Get Started

WCU

The ideal accessory for any wash bay, this system helps to remove mud and grime build up under vehicles and small equipment. The durable steel frame ensures longevity even in harsh conditions.

Features

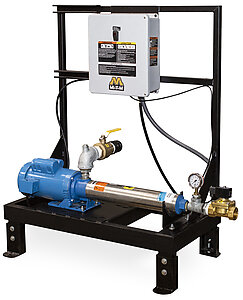

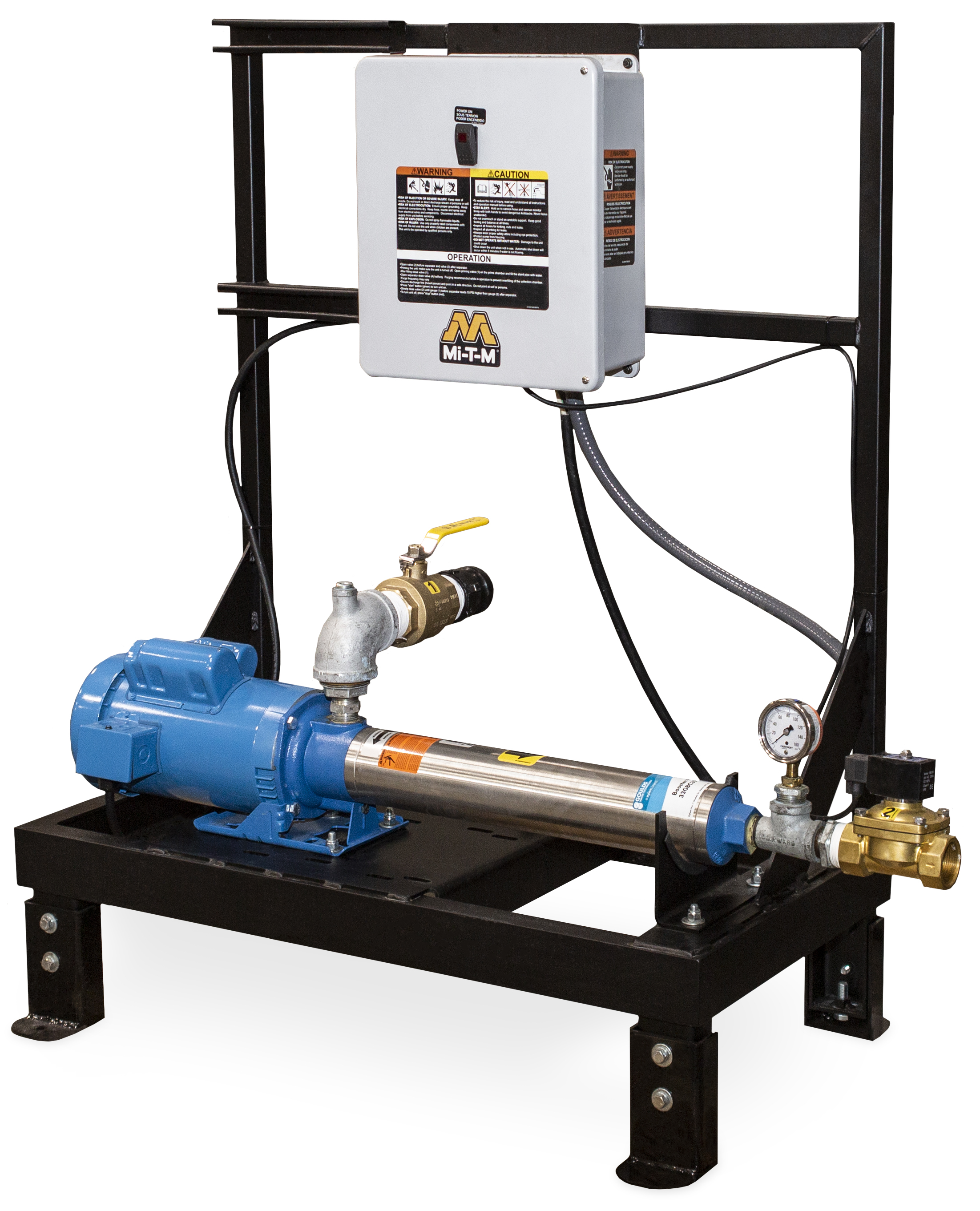

·Powder coated frame with control box and pump
·8-foot stainless-steel spray bar with 16 nozzles
·Auto shut-off valve
·250-gallon holding tank, supply hose and make-up valve
·PLC controls for automatic pump operation with photo-eye and remote box
·ETL listed NEMA-4 rated corrosion-proof control panel

Models Available
WCU-35-0ME1 – 230V, 1Ø, 15.0A
WCU-35-0ME3 – 208-230V, 3Ø, 10.0A or 460V, 3Ø, 5.0A

Specifications

  • GPM @ PSI

    35 @ 110

  • Pump

    3.0 HP

  • Spray Bar Cover Dimensions (LxWxH)

    96 x 6 x 0.5 in.

  • Pump Frame Dimensions (LxWxH)

    4 x 3 x 5 ft.

  • Holding Tank Dimensions (WxH)

    36 x 62 in.

Weights & Dimensions

  • Net Weight

    450.00 lbs.

  • Shipping Weight

    0.00 lbs.

  • Length

    96.00 in.

  • Width

    6.00 in.

  • Height

    0.50 in.

Options

  • WX-0144 460V, 3 Phase

    Upgrades 208-230V model to operate at 460V

  • WX-0146 Detergent

    Adds chemical injector to bypass line of pump, chemical gets injected at inlet of pump
