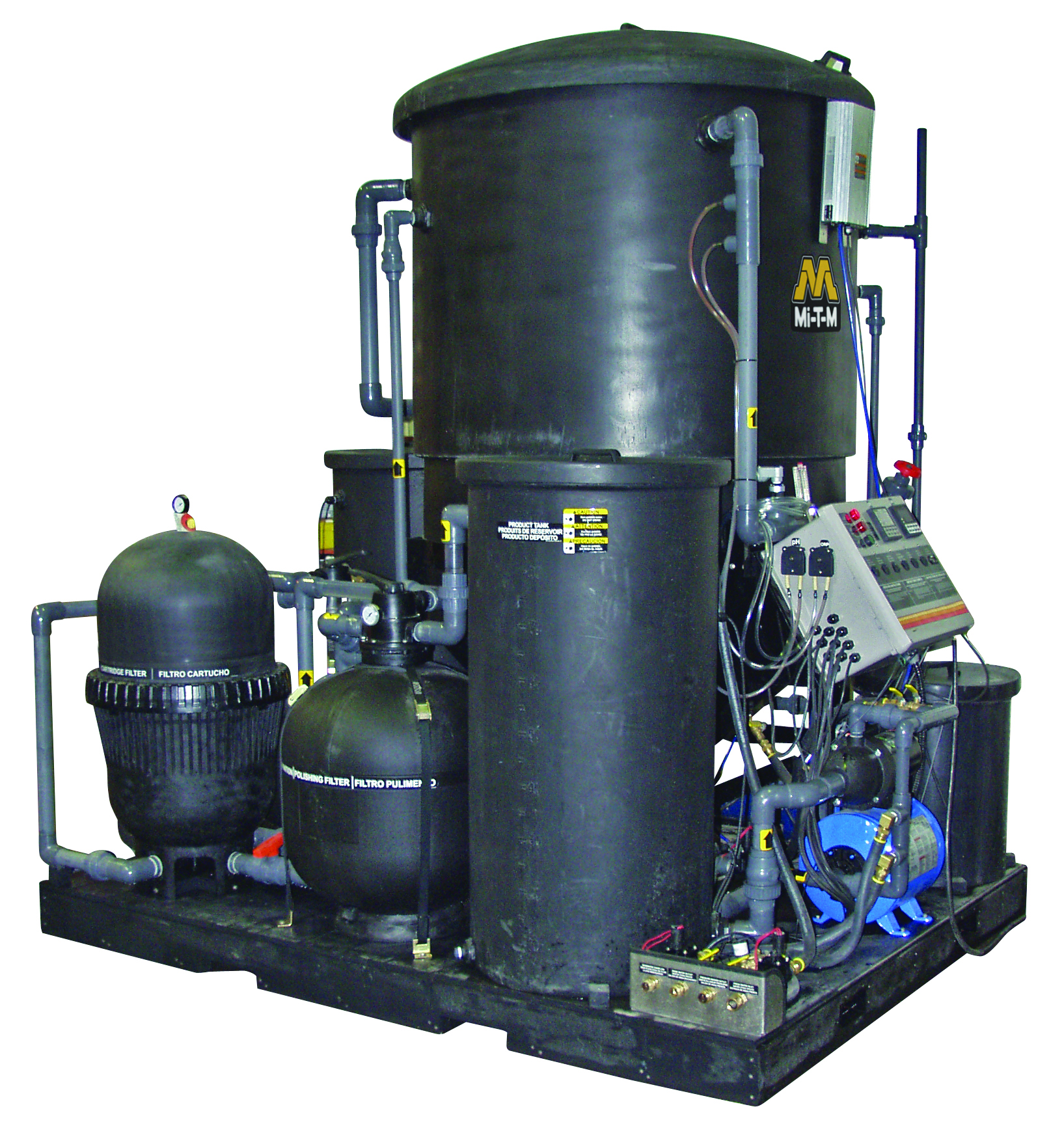

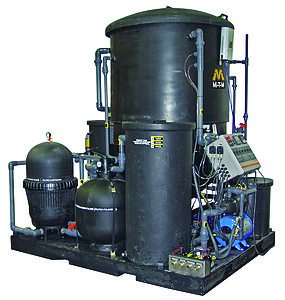

Clarifier Wash Water Recycle Systems - WCP-20-0M10

Get Started

WCP-20-0M10

Designed to remove free hydrocarbons and filter water, these systems come standard with pH and ORP injection and are corrosion-resistant when utilizing polymer tanks and recycled plastic skids.

Features
·Cone-shaped tank
·Heavy-duty, corrosive-resistant base
·Corona discharge ozone system
·Clarifier oil/water/solids separator
·Oil decanter
·Sludge box
·Multi-media, reusable polyester and activated carbon filters
·ORP/pH controller
·1.0 HP surface-mount sump pump
·ETL listed NEMA-4 rated corrosion-proof control panel

Recommended Applications
·Rental Yards
·Golf Courses
·Heavy Equipment Dealers
·Trucking Facilities
·Military Bases
·Truck Rental Fleets
·Diesel Repair Facilities
·Forklift Washing Operations
·Aircraft Maintenance and Restoration
·Shipyards
·Municipalities/State DOTs
·Oil Fields
·Engine Rebuilders and Manufacturers

230/208/460V 3Ø available as option

The Importance of a Proper Pit System
Once equipment is washed, the untreated wash water flows into your pit system. A proper pit system for your application is the first step in proper wash water treatment and a critical element in any wash water recycle system.

Consult Mi-T-M Corporation or your local distributor to determine the pit system configuration that works best for your application.

Specifications

Flow Rate

0-20 GPM
Clarifier Tank

600 gallon
Media Filter

350 lb.
Cartridge Filter

400 sq. ft.
Carbon Filter

110 lb.
Oil Coalescing Area

425 sq. ft.
Ozone Generator

12 grams/day
Power Requirements

230V, 1Ã˜, 30.0A

Weights & Dimensions

Net Weight

0.00 lbs.
Shipping Weight

2500.00 lbs.
Length

72.00 in.
Width

96.00 in.
Height

108.00 in.

Options

WX-0039 Pinch Valve Assembly

Pinch valve, bladder style (used on cone bottom tanks), 2 inch, 120V, 1Ã˜
WX-0133 Coagulation System

Used in heavy solids applications to help dirt and solids settle for easy removal
