Pit-Systems

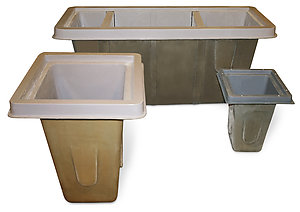

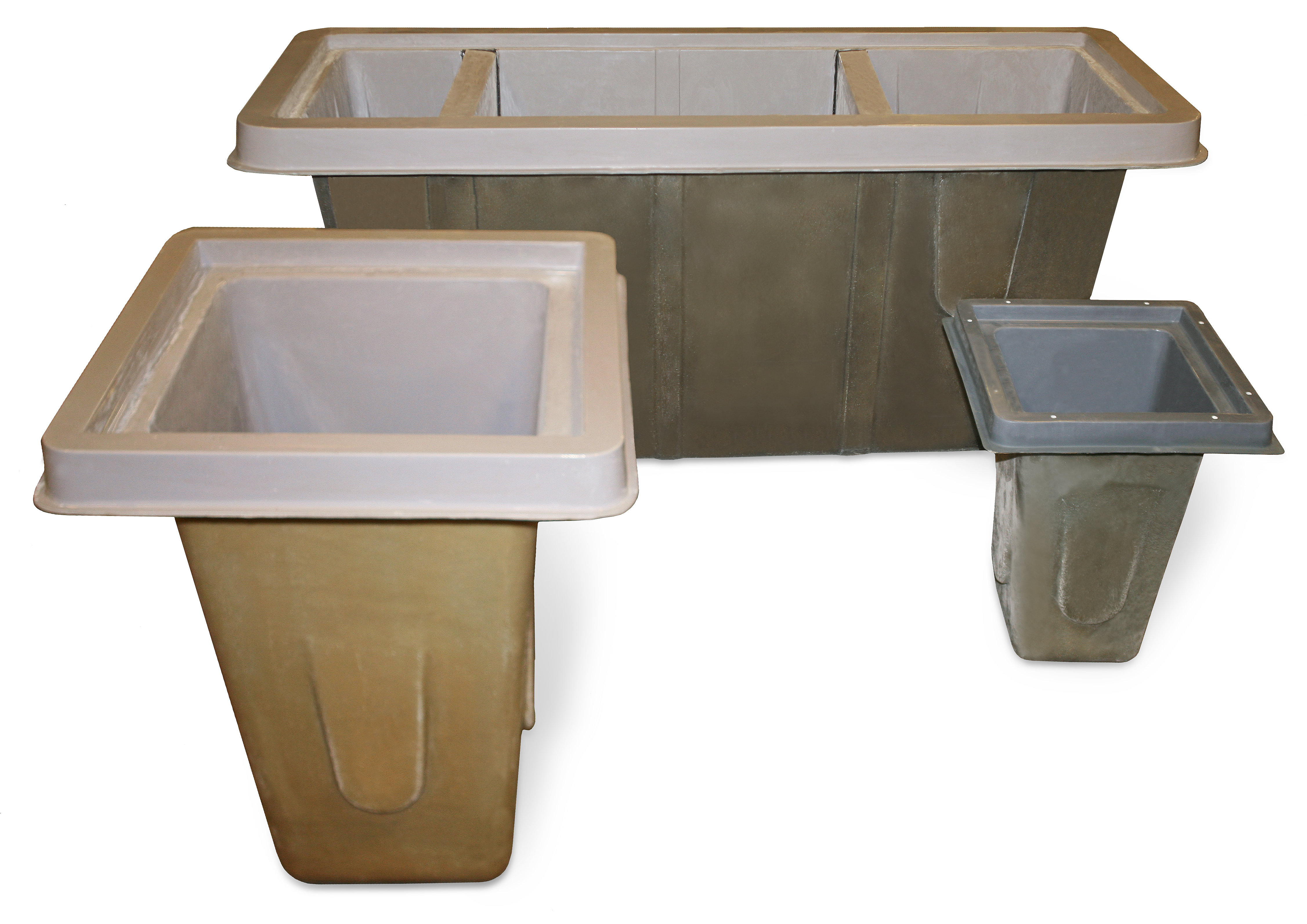

Use these premium quality fiberglass pit components to create a customized pretreatment pit system for wash water recycle or sewer discharge operations.

Pit Components are Designed to
·Effectively pre-treat wash water for treatment by an above-ground system
·Be easily installed by your contractor

Recommended Applications
·Rental Yards
·Golf Courses
·Heavy Equipment Dealers
·Trucking Facilities
·Military Bases
·Truck Rental Fleets
·Diesel Repair Facilities
·Forklift Washing Operations
·Aircraft Maintenance & Restoration
·Shipyards
·Municipalities/State DOTs
·Oil Fields
·Engine Rebuilders & Manufacturers

3' x 9' Pit System
12-0074 – 3' x 9' x 4.5' Pit Size
3-stage collection pit, fiberglass, 600-gallon capacity; 480 lbs.
12-0223 – 3' x 9' x 4.5' Pit Size
3' x 9' baffleless pit, fiberglass, 600-gallon capacity; 480 lbs.
20-1505A18 – Fits 3' x 9' Pit Size
Pit liner assembly, painted; 2 qty. are required; 45 lbs.
56-0032 – Fits 3' x 9' Pit Size
Aluminum hinged diamond plate cover with 3 frame sections; 100 lbs.
RC-0001-0003 – Fits 3' x 9' Pit Size
Brace kit for installation of 3-stage collection pit; 200 lbs.
RC-0018-0001* – Fits 3' x 9' Pit Size
Steel grating for pit; 3,060 lb./ft.² uniform load rating; 546 lbs.
RC-0018-0002* – Fits 3' x 9' Pit Size
Steel grating for pit with steel cover; 3,060 lb./ft.² uniform load rating; 680 lbs.
*May combine RC-0018-0001 and RC-0018-0002 to have both open and closed sections for the 3' x 9' pits.
Consult dealer for more information.

3' x 3' Pit System
12-0071 – 3' x 3' x 4.5' Pit Size
Catch basin, fiberglass, 100-gallon capacity; 190 lbs.
20-0480A18 – Fits 3' x 3' Pit Size
Steel grating for pit, 2 sections; 6,250 lb./ft.² uniform load rating, H-20 load rated; 250 lbs.
20-1553A18 – Fits 3' x 3' Pit Size
Pit liner assembly, painted; 26 lbs.
56-0031 – Fits 3' x 3' Pit Size
Aluminum diamond plate cover and frame; 30 lbs.
RC-0001-0002 – Fits 3' x 3' Pit Size
Brace kit for installation of 3' x 3' pit; 150 lbs.

2' x 2' Pit System
12-0073 – 2' x 2' x 3' Pit Size
Sump pit, fiberglass, 50-gallon capacity; 92 lbs.
20-0479A18 – Fits 2' x 2' Pit Size
Steel grating for pit; 6,660 lb./ft.² uniform load rating, H-20 load rated; 100 lbs.
56-0030 – Fits 2' x 2' Pit Size
Aluminum diamond plate cover and frame; 60 lbs.
RC-0001-0001 – Fits 2' x 2' Pit Size
Brace kit for installation of 2' x 2' pit; 75 lbs.

Weight listed is ship weight

The Importance of a Proper Pit System
Once equipment is washed, the untreated wash water flows into your pit system. A proper pit system for your application is the first step in proper wash water treatment and a critical element in any wash water recycle system.

Consult Mi-T-M Corporation or your local distributor to determine the pit system configuration that works best for your application.

Specifications

Weights & Dimensions

Net Weight

0.00 lbs.
Shipping Weight

0.00 lbs.
Length

0.00 in.
Width

0.00 in.
Height

0.00 in.

Options

WX-0018 Aeration Stick Assembly

Prevents water from stagnatizing, includes regulator assembly, for aeration of pits
