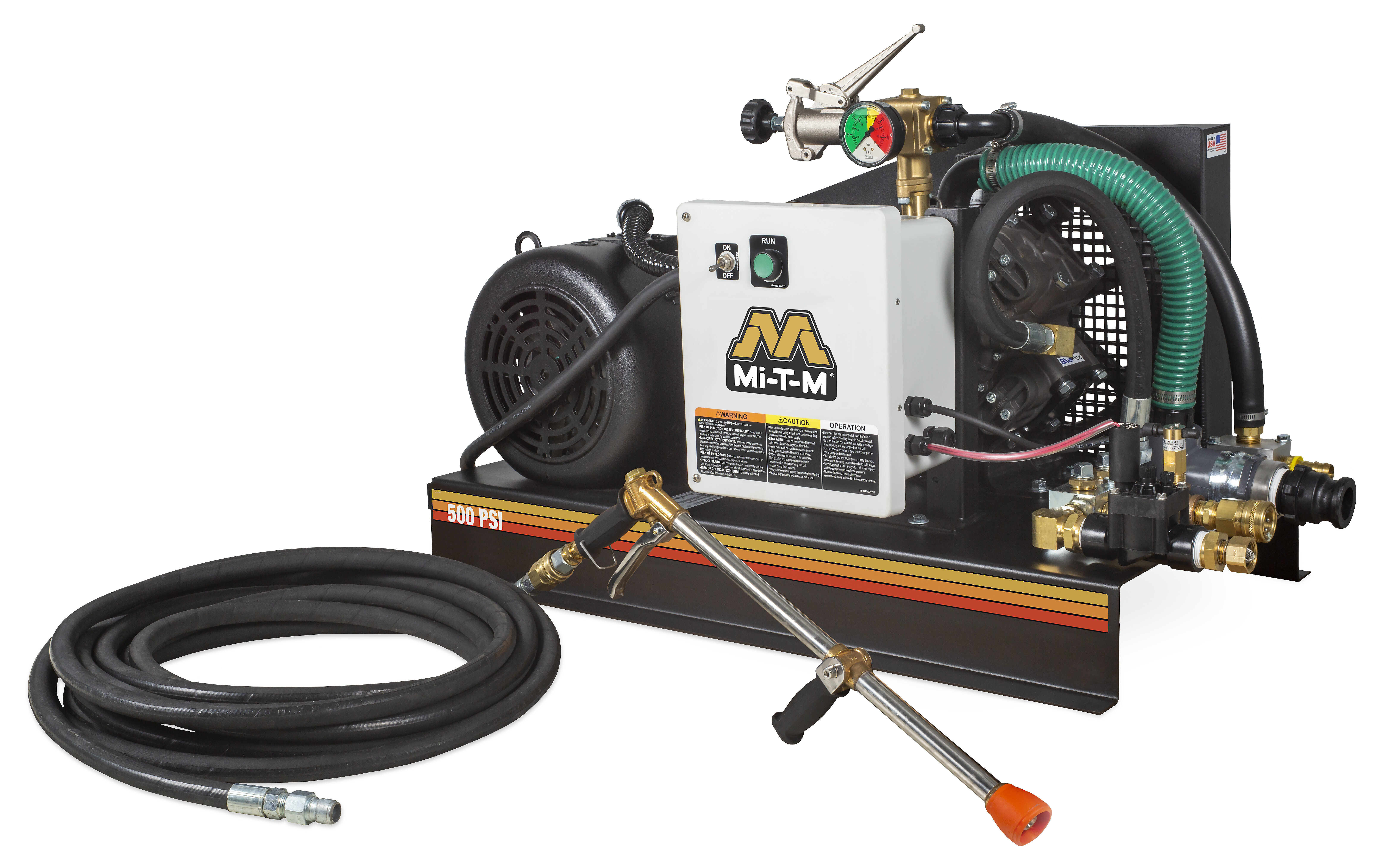

CHV Series Cold Water Pressure Washer - CHV-0525-1ME1

expand-icon

Resources

Find A Local Dealer

Get Started

CHV-0525-1ME1

Receive more power with less pressure. This cold water, high-volume pressure washer is the perfect answer for applications that require cleaning of heavy solids, especially from large industrial equipment.

Features:
·Belt drive diaphragm AR pump with pulsation dampener
·Total enclosed fan-cooled electric motor
·Pressure regulator with manual dump lever and gauge
·Makeup water shut-off solenoid and flow switch on outlet
·Stainless-steel long range nozzle
·50-foot x ¾-inch non-marking high pressure hose with quick connects
·High-volume gun with adjustable pattern

Specifications

  • GPM @ PSI

    25 @ 500

  • Horsepower/Motor

    10.0 HP, 230V, 1Ø, 41.5A

Weights & Dimensions

  • Net Weight

    0.00 lbs.

  • Shipping Weight

    432.00 lbs.

  • Length

    38.00 in.

  • Width

    23.50 in.

  • Height

    24.00 in.

Options

  • CX-0072 600-Gallon Tank

    600-gallon tank with stand, suction hose and float

  • CX-0073 460V, 3Ø

    For when you have 460V of power available

  • CX-0074 18-Inch Stand

    Raises unit off of ground

  • CX-0075 Remote Start Control Box

    For when unit is not near spraying location
