Biological Recycle Systems - BIO-35Series

Get Started

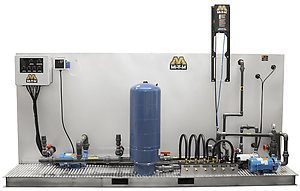

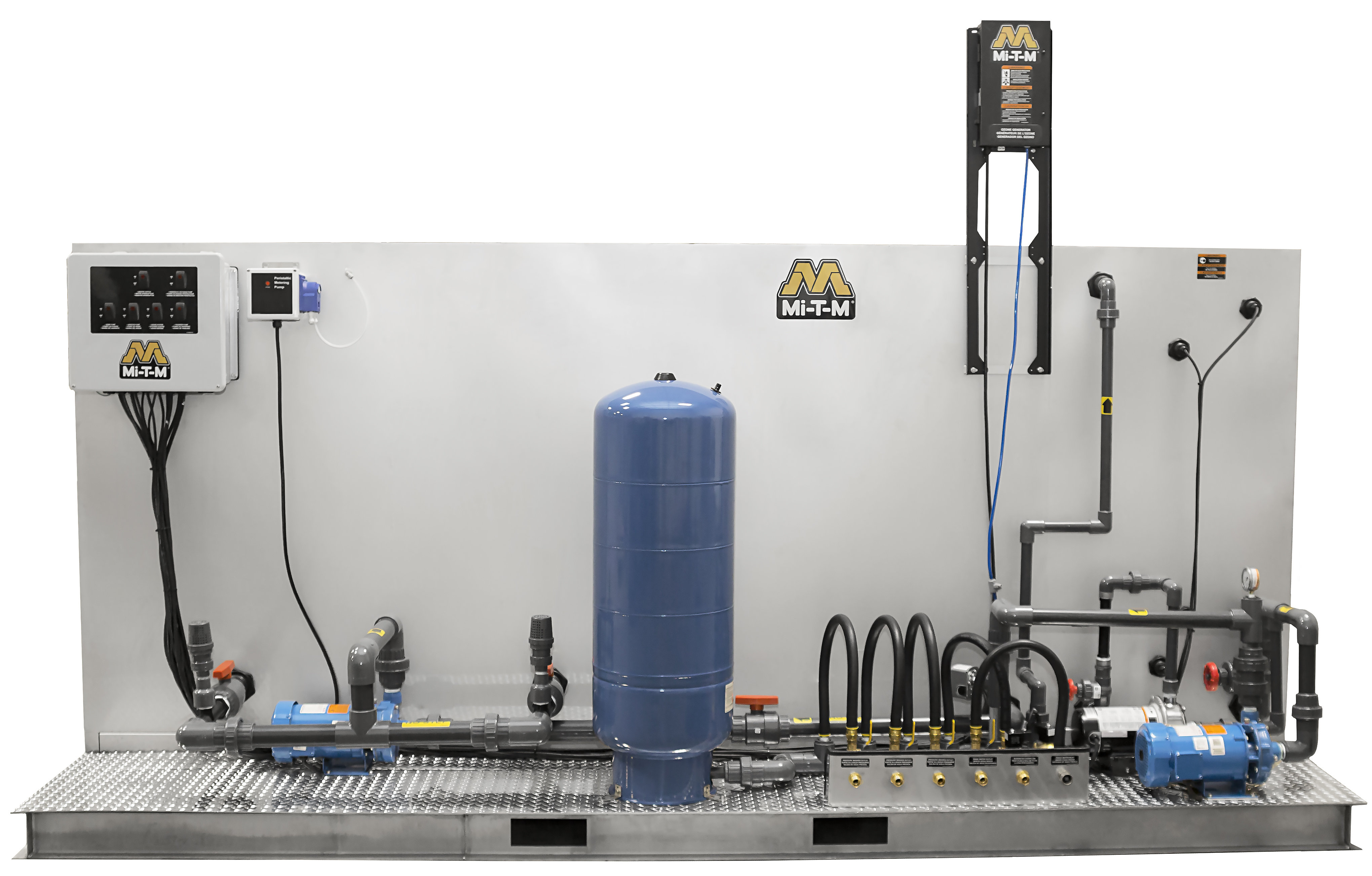

BIO-35Series

The popular Mi-T-M BIO Series System utilizes fixed-film bacteria in conjunction with coalescing media to treat wastewater. Oxygen is added to the bacteria in the waste stream by a venturi injection system.

Features
·Bioreaction tank
·Biofilm generative media
·Aeration system
·Pressurized tank
·Pressure manifold
·Submersible sump pump
·Marine aluminum construction with slope bottomed design
·ETL listed NEMA-4 rated corrosion-proof control panel

Recommended Applications
·Rental Yards
·Golf Courses
·Heavy Equipment Dealers
·Trucking Facilities
·Military Bases
·Truck Rental Fleets
·Diesel Repair Facilities
·Forklift Washing Operations
·Aircraft Maintenance and Restoration
·Shipyards
·Municipalities/State DOTs
·Oil Fields
·Engine Rebuilders and Manufacturers

Models Available
BIO-35R-0M10 – 230V, 1Ø, 25.0A
BIO-35R-0M30 – 230V, 3Ø, 15.0A

230/208/460V 3Ø available on all models as options

The Importance of a Proper Pit System
Once equipment is washed, the untreated wash water flows into your pit system. A proper pit system for your application is the first step in proper wash water treatment and a critical element in any wash water recycle system.

Consult Mi-T-M Corporation or your local distributor to determine the pit system configuration that works best for your application.

Specifications

Flow Rate

0-35 GPM
Biological Media

6,480 sq. ft.
Tank Capacity

2,244 gallon
Material of Construction

Marine Aluminum
Sump Pump (Included)

1/2 HP
Transfer Pump

2.0 HP

Weights & Dimensions

Net Weight

0.00 lbs.
Shipping Weight

1900.00 lbs.
Length

144.00 in.
Width

84.00 in.
Height

60.00 in.

Options

WX-0014 Pinch Valve Assembly

Pinch valve, bladder style (used on cone bottom tanks), 2 inch, 230V, 1Ã˜
WX-0037 pH Control System, 230V

For when pH adjustment is needed
WX-0039 Pinch Valve Assembly

Pinch valve, bladder style (used on cone bottom tanks), 2 inch, 120V, 1Ã˜
WX-0102 pH Control System, 120V

For when pH adjustment is needed
WX-0128 Hour Meter

Displays the number of hours unit has been in operation
WX-0133 Coagulation System

Used in heavy solids applications to help dirt and solids settle for easy removal
WX-0134 Dual pH Control System, 230V

Two set points where pH can be adjusted
WX-0135 Dual pH Control System, 115V

Two set points where pH can be adjusted
WX-0015 Ozone

For specialized applications where sterilization of the waste stream is desired, 230V, 1Ã˜
WX-0029 550-Gallon Product Tank Expansion

For when larger volume of usable water is needed
WX-0100 BIO Sump Pump Conversion

Customized option, converts submersible pump to surface-mount sump pump
WX-0122 High Solids Media

Allows for debris to travel easily through media with vertical design
WX-0127 Epoxy-Lined Tank

High solid polyamide epoxy-lined tank is chemical and corrosion-resistant
WX-0136 Heater, 230V

Promotes heat for microbes, powered from main box, additional 20A required
WX-0137 Heater, 460V

Promotes heat for microbes, powered from main box, additional 20A required
WX-0142 250-Gallon Auxiliary Poly Tank

Allows you to treat the BIO water with ozone in a separate poly tank
WX-0049 460V

Changes 230V model to 460V, 3Ã˜
WX-0052 Ozone

For specialized applications where sterilization of the waste stream is desired, 208-230V, 3Ã˜
WX-0053 Ozone

For specialized applications where sterilization of the waste stream is desired, 460V, 3Ã˜
