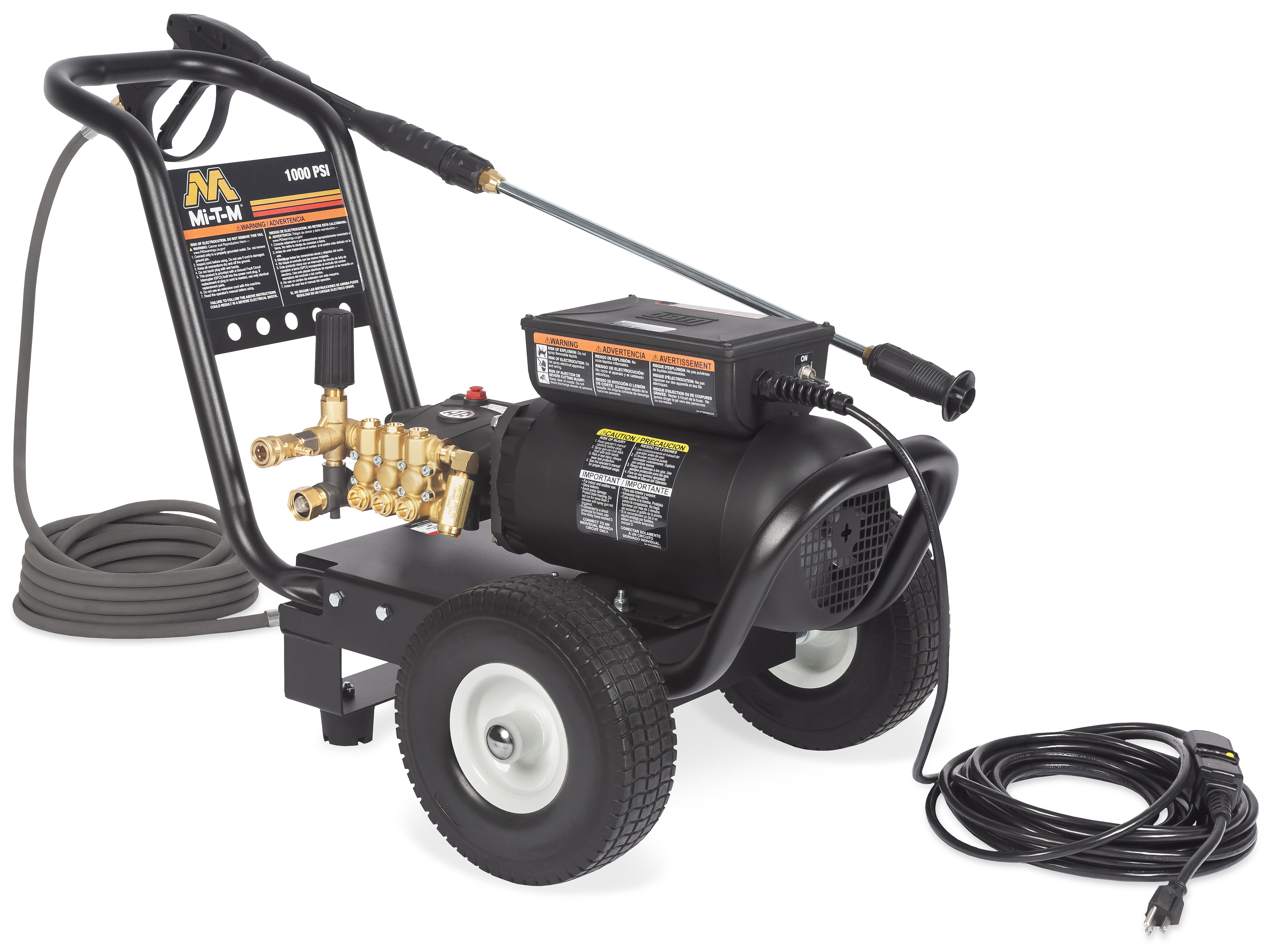

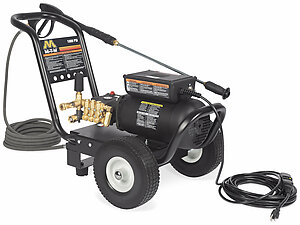

JP Series Electric Direct Drive - JP-1002-4ME1

Resources

Find A Local Dealer

Get Started

JP-1002-4ME1

Contractors appreciate the mobility and performance of the JP Series. It can be used to clean debris and grime indoors and out.

Pump
Adjustable pressure unloader · Anti-corrosion cast iron manifold · Thermal and safety relief valves · Built-in low pressure detergent injector

Motor
Totally enclosed fan-cooled electric motor · 35-foot power cord with GFCI

Frame
Powder coated steel frame · 10-inch flat-free tires

Unit Includes
High/low pressure nozzle · 25-foot x 3/8-inch non-marking hose · 36-inch lance with insulated trigger gun

Pump accepts incoming water up to 175°F.

Specifications

  • PSI

    1000

  • GPM

    2.0

  • Displacement/ Engine

    1.5 HP, 120V, 1Ø, 13.2A

  • Pump

    General

  • Plug Type

    NEMA 5-15P

Weights & Dimensions

  • Net Weight

    95.00 lbs.

  • Shipping Weight

    122.00 lbs.

  • Length

    37.00 in.

  • Width

    21.00 in.

  • Height

    24.50 in.

Options

  • CX-0005 Insulated Dual Lance

    Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips - 36-inch

  • CX-0030 High Pressure Hose - 50-Foot

    For when you need extra hose for added mobility

Warranty Information
  • 1 Year Electric Motor
  • 7 Year General Pump
