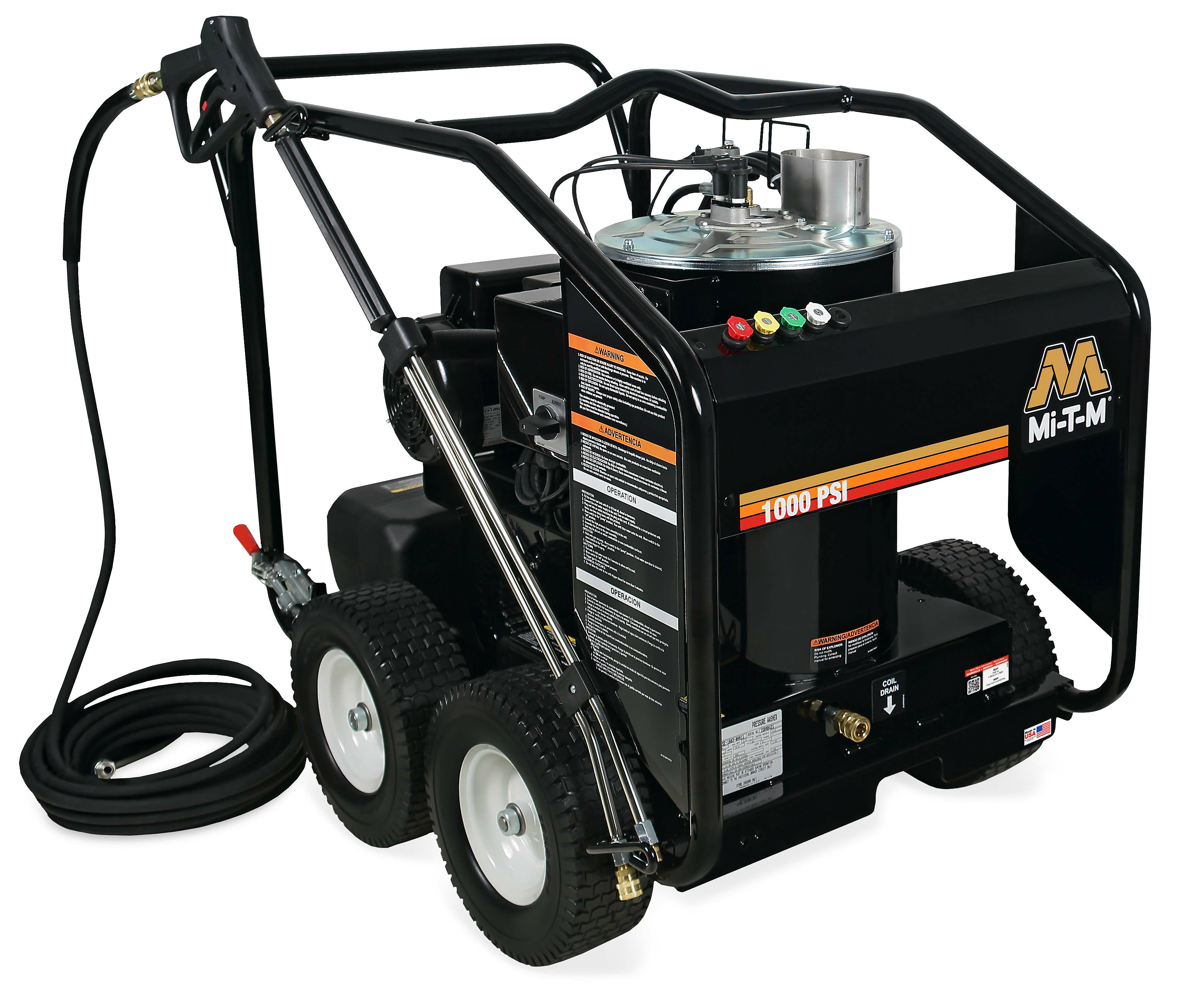

HSE Series Electric Direct Drive - HSE-1002-0MM11

expand-icon

Resources

Find A Local Dealer

Get Started

HSE-1002-0MM11

The HSE Series is designed with a powder coated steel frame, making it extremely durable. It is ideal for cleaning on construction sites, farms, mining and oil fields.

Pump
Equipped with Mi-T-M Pressure Relief Start · Factory preset unloader · Forged brass manifold · Thermal relief valve

Motor
Totally enclosed fan-cooled electric motor with manual thermal overload protection · 35-foot power cord

Frame
Reinforced powder coated steel frame with center balanced lift · 13-inch flat-free tires

Components
Energy-efficient top-fired heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous
Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 225°F

Unit Includes
Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun

Specifications

  • PSI

    1000

  • GPM

    2.0

  • Horsepower/Motor

    1.5 HP, 120V, 1Ø, 15.0A

  • Pump

    Mi-T-M

  • Plug Type

    NEMA 5-15P

  • Burner Fuel Tank Capacity

    4.0 gallon

  • Burner Fuel Cons.

    1.33 gph

  • BTU Per Hour

    186,000

Weights & Dimensions

  • Net Weight

    237.00 lbs.

  • Shipping Weight

    410.00 lbs.

  • Length

    43.00 in.

  • Width

    29.50 in.

  • Height

    36.50 in.

Options

  • HX-0235 Hour Meter

    Displays the number of hours unit has been in operation

  • HX-0237 Auto Start/Stop

    When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart

  • HX-0238 Time Delay Shutdown

    Timer will shut unit off automatically when trigger gun is released and timer reaches setting

  • HX-0239 300°F Steam

    Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F

  • HX-0308 Adjustable Thermostat

    Operator is able to adjust outlet water temperature between 86°-248°F

Warranty Information
  • 1 Year Electric Motor
  • 3 Year Coil
  • 7 Year Mi-T-M Pump
Additional Info
  • pressure relief start
