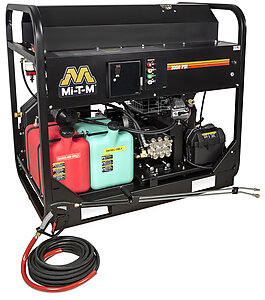

HS Series Gasoline Belt Drive - HS-3008-1MGK

Get Started

HS-3008-1MGK

Mount the HS Series to a trailer or in the back of a truck to take mobile cleaning from one jobsite to the next. Easily blast away grease, oil, heavy mud and grime with ease.

Pump
External bypass system protects from heat build-up · Factory preset unloader · Forged brass manifold · 80-mesh, high volume, stainless-steel screen inlet water strainer

Engine
Electric start - sealed battery included

Frame
Heavy-duty powder coated steel frame

Components
2900-watt generator · Heavy-duty dual cogged belt drive system · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel) · 1/2-inch schedule 80-coil with stainless-steel wrap

Miscellaneous
Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes
Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 1/2-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
Model equipped with trapping unloader, all other models equipped with K7 flow actuated unloader.

Specifications

PSI

3000
GPM

7.8
Displacement/ Engine

725cc Kohler CH730 OHV
Pump

General
Engine Fuel Tank Capacity

10.0 gallon
Burner Fuel Tank Capacity

10.0 gallon
Burner Fuel Cons.

3.67 gph
BTU Per Hour

513,800

Weights & Dimensions

Net Weight

772.00 lbs.
Shipping Weight

878.00 lbs.
Length

50.00 in.
Width

34.00 in.
Height

46.00 in.

Options

HX-0130 Three-way Ball Valve

Allows pressure washer to be operated from garden hose/float tank or trailer supply tank by adjusting ball valve lever
HX-0131 High Pressure Detergent Injector, K7

Supplies soap injection through the high pressure pump while spraying; pressure washers with K7 flow actuated unloaders only
HX-0145 Adjustable Thermostat

Operator is able to adjust outlet water temperature between 86Â°F-248Â°F
HX-0146 Hour Meter

Displays the number of hours unit has been in operation
HX-0147 Four Point Lifting Capability

Allows unit to be lifted by crane
HX-0148 Adjustable Detergent Valve

Supplies soap injection through the high pressure pump while spraying; pressure washers with trapping unloader only **Requires trapping unloader. Consult factory before ordering this option.**
HX-0202 Dual Gun

Two guns may be sprayed at the same time; flow is divided between the two guns while each operator maintains equal system pressure

Warranty Information

3 Year Coil
3 Year Kohler Engine
7 Year General Pump
