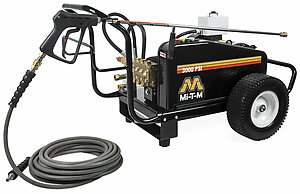

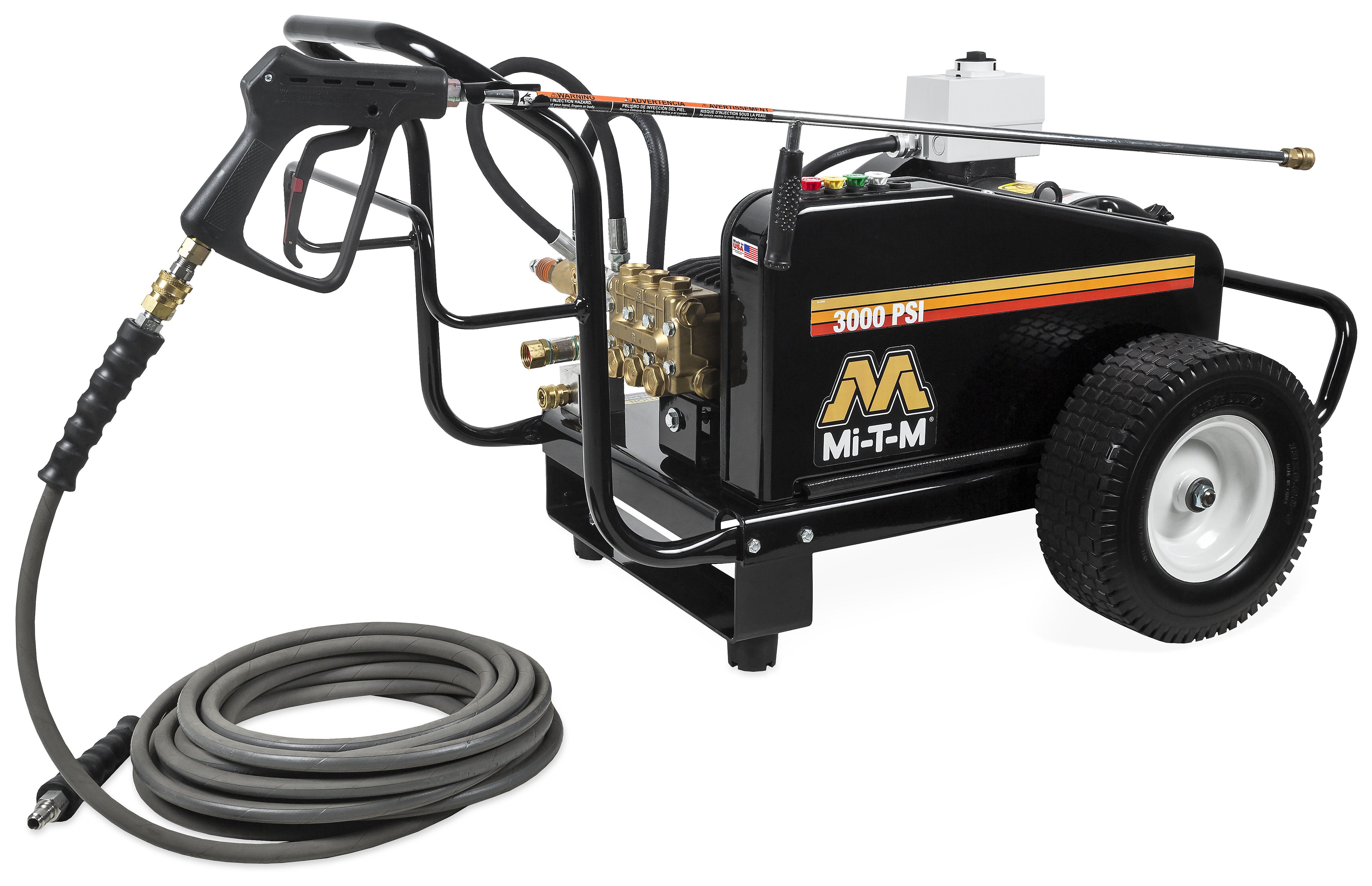

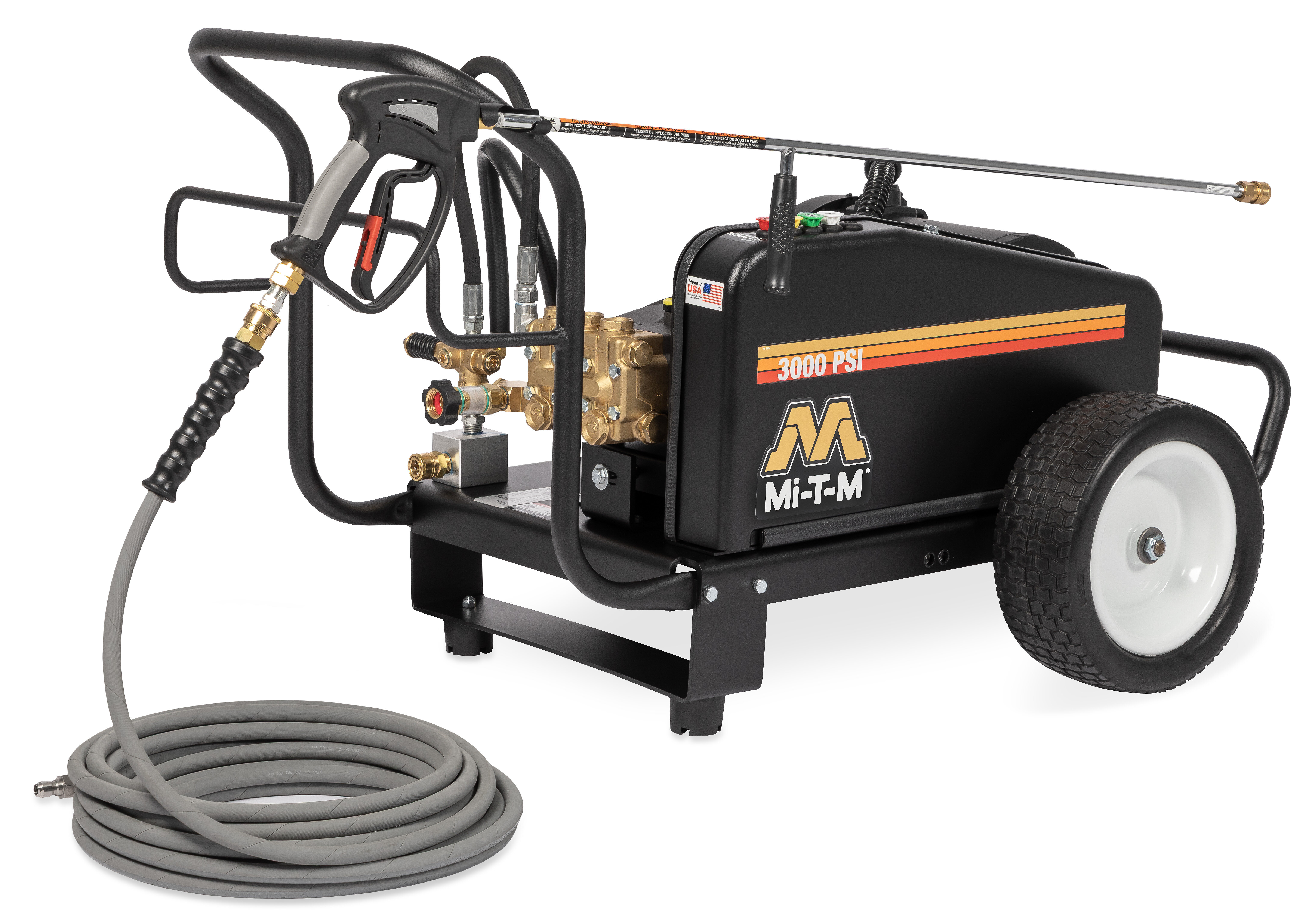

CW Premium Series Electric Belt Drive - CW-3004-4ME3

Get Started

CW-3004-4ME3

With up to 5000-PSI of cleaning power, this series is used for paint preparation and mold and mildew removal around commercial facilities, barns and large workshops.

Pump
External bypass system protects from heat build-up · Factory preset Mi-T-M unloader · Forged brass manifold · Thermal relief valve · Water filter with clear sleeve for screen inspection

Motor
Totally enclosed fan-cooled electric motor with thermal overload protection · 10-foot power cord

Frame
Powder coated steel frame · Totally enclosed belt guard · 13-inch flat-free tires

Unit Includes
Quick connect nozzles - 0º, 15º, 25º and 40º · 50-foot x 3/8-inch non-marking hose · 36-inch lance with insulated trigger gun

460V motors available as options.

Specifications

PSI

3000
GPM

3.9
Horsepower/Motor

8.0 HP, 230V, 3Ã˜, 20.0A -OR- 8.0 HP, 460V, 3Ã˜, 10.0A
Pump

General
Plug Type

NEMA L15-30P

Weights & Dimensions

Net Weight

318.00 lbs.
Shipping Weight

384.00 lbs.
Length

46.00 in.
Width

30.00 in.
Height

30.00 in.

Options

CX-0005 Insulated Dual Lance

Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips - 36-inch
CX-0003 460V on 8.0 HP, 3 Phase Models

For when you have 460V of power available
CX-0093 Stationary Option

This option will remove the existing tall handle and wheels, which will be replaced with a short handle and rubber feet for stationary applications

Warranty Information

1 Year Electric Motor
1 Year Mi-T-M Unloader
7 Year General Pump
