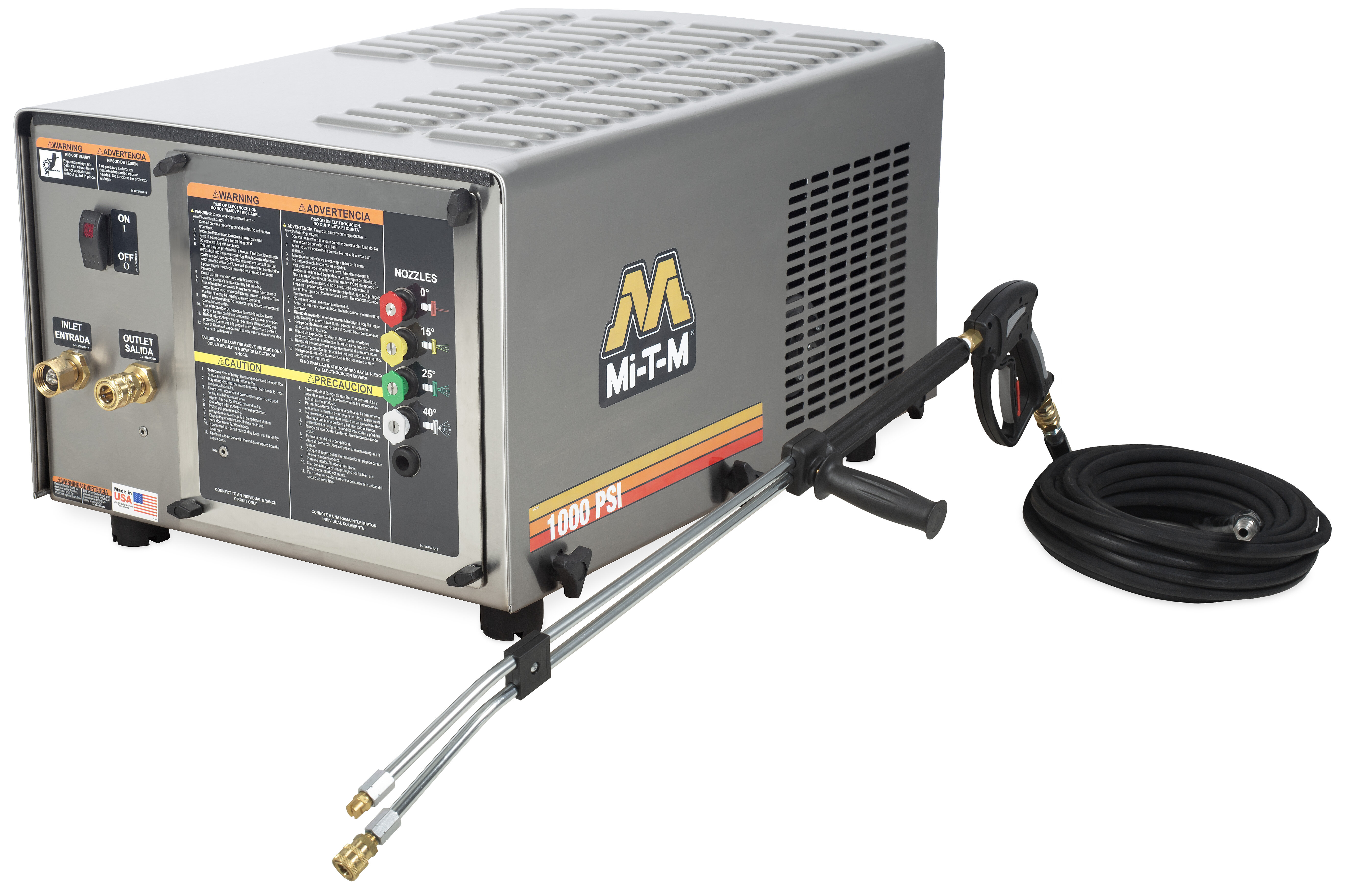

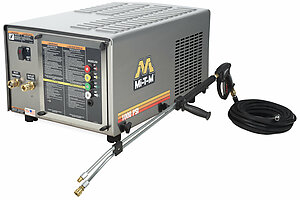

CW Premium Series Electric Belt Drive - CW-1003-SME1

CW-1003-SME1

Food and beverage industries use the stationary CW Premium Series to keep floors, worktables and appliances spotless. It is also a great addition to any wash bay.

Pump
Forged brass manifold · Thermal relief valve · Quick connect low pressure detergent injector · Pump accepts incoming water up to 165ºF

Motor
Open drip-proof electric motor with manual thermal overload protection · 4-foot power cord with GFCI

Frame
Stainless-steel cabinet design with removable panel · Four rubber isolators

Component
Time delay shutdown

Unit Includes
Quick connect nozzles - 0º, 15º, 25º and 40º · 50-foot x 3/8-inch black hose · 36-inch adjustable dual lance with insulated trigger gun

Specifications

  • PSI

    1000

  • GPM

    2.5

  • Horsepower/Motor

    2.0 HP, 120V, 1Ø, 18.8A

  • Pump

    General

  • Unloader

    Factory Preset

  • Plug Type

    NEMA 5-20P

Weights & Dimensions

  • Net Weight

    172.00 lbs.

  • Shipping Weight

    222.00 lbs.

  • Length

    29.50 in.

  • Width

    20.50 in.

  • Height

    15.00 in.

Options

  • CX-0069 Auto Start/Stop

    When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart

  • CX-0078 Remote Box

    Adds plastic control box with rocker switches, can be mounted away from unit to control on/off

  • CX-0096 Hour Meter

    Displays the number of hours unit has been in operation

  • CX-0109 Additional Remote Box

    Additional remote boxes (up to 3)

  • CX-0122 Wheel Kit with 2 Flat-Free Tires and 2 Swivel Caster Wheels with Brakes

    Allows the unit to become portable

Warranty Information
  • 1 Year Electric Motor
  • 7 Year General Pump
Additional Info
