CTM Series Gasoline Truck-Mount Belt Drive - CTM-3508-H6G0M

Get Started

CTM-3508-H6G0M

This cold-water truck-mount series is designed for mobile cleaning. Mount it to a truck or trailer with a water tank and clean anywhere, anytime. It’s ideal for industrial cleaning and remote locations.

Installation
Mount on a truck or tailer · Requires 200-gallon or larger water tank (Not included)

Engine
Electric start - battery not included (Battery tray, box and cables option available)

Pump
Equipped with Mi-T-M Pressure Relief Start · External bypass system protects from heat build-up · Forged brass manifold · Thermal relief valve · ¾-inch barb inlet

Frame
Powder coated steel frame · 1¼-inch tube handles · Two-piece, enclosed belt guard · Mounting plate with rubber isolators

Unit Includes
Quick connect nozzles – 0°, 15°, 25° and 40°

Accessories Available (Sold Separately)
50-foot x 3/8-inch non-marking hose · 48-inch lance with insulated trigger gun · Rotating nozzle, 5100-PSI rated

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
49 state engine. Not for sale in California.

Specifications

PSI

3500
GPM

8.0
Displacement/ Engine

688cc Honda GX690 OHV
Pump

General
Unloader

Mi-T-M, Factory Preset
Fuel Tank Capacity

N/A

Weights & Dimensions

Net Weight

257.00 lbs.
Shipping Weight

307.00 lbs.
Length

46.00 in.
Width

20.50 in.
Height

28.50 in.

Options

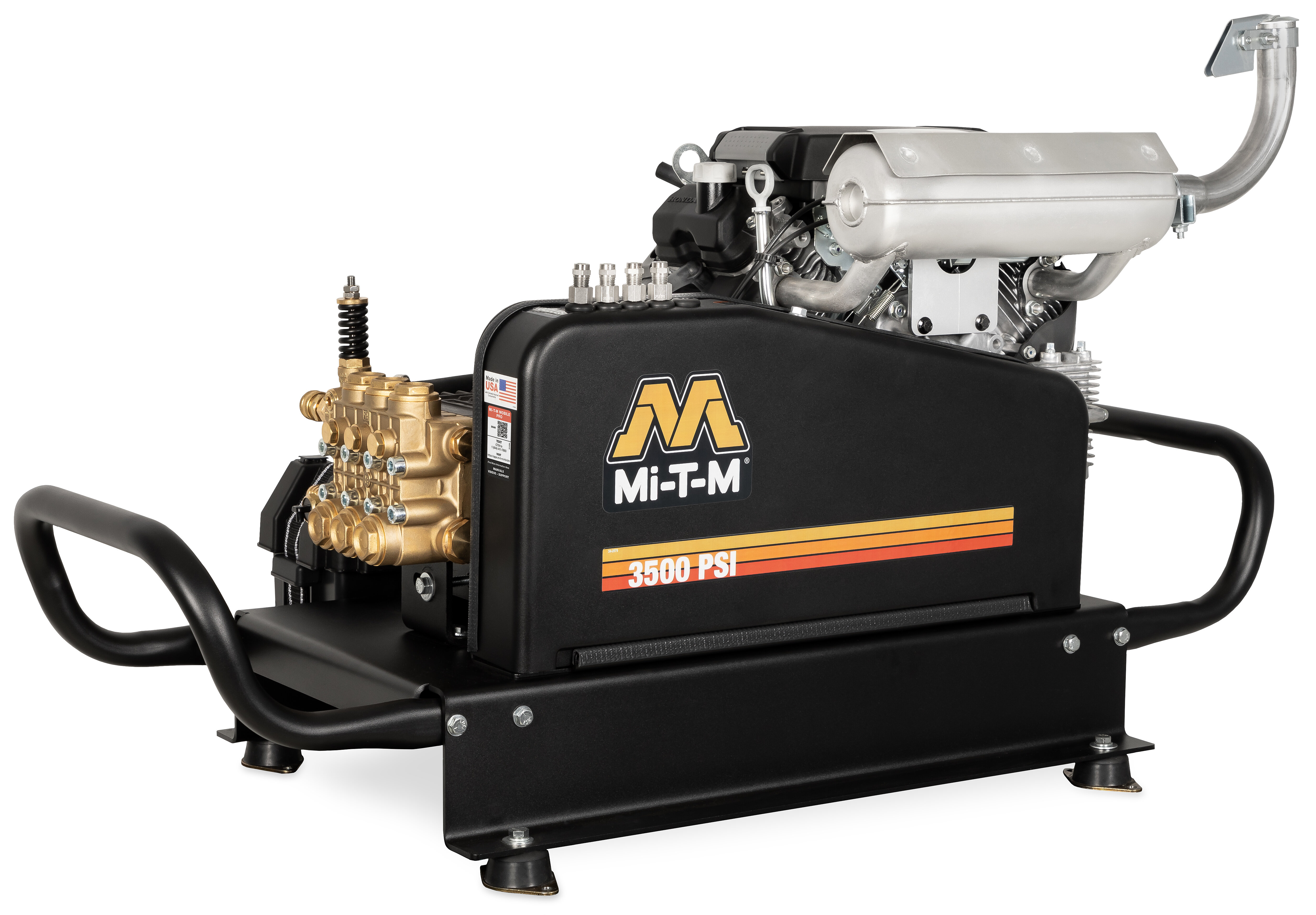

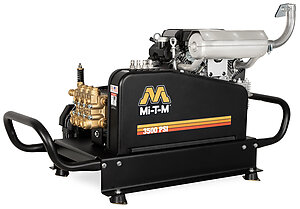

CX-0128 Battery Tray, Box and 2-Foot of Cables

Attaches to engine side of unit
CX-0129 Fuel Tank, 10-Gallon

Adds 10-gallon fuel capacity to unit, includes fuel tank, stand and hoses. **Must be included with unit at the time of purchase to be EPA compliant.
CX-0130 Fuel Tank, 8-Gallon

Adds 8-gallon fuel capacity to unit, includes fuel tank, stand and hoses. **Must be included with unit at the time of purchase to be EPA/CARB compliant.

Warranty Information

1 Year Mi-T-M Unloader
3 Year Honda Engine
7 Year General Pump
