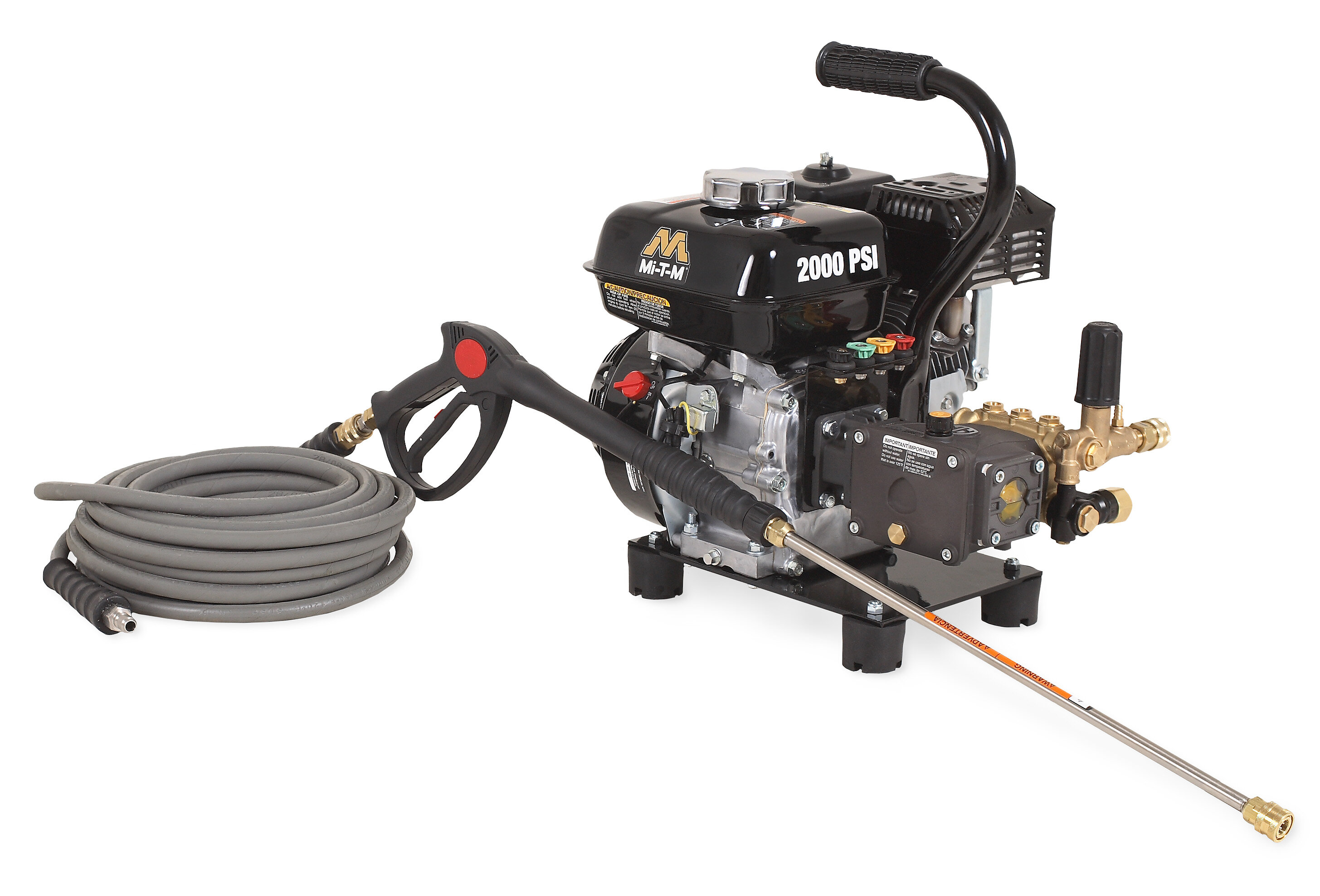

CD Series Gasoline Direct Drive - CD-2003-3MHH
CD-2003-3MHH
The CD Series is designed to tackle most cleaning jobs around the home and property. It is compact, portable and easy to use.
Pump
Forged brass manifold · Thermal relief valve · In-line water strainer · Built-in low pressure detergent injector
Frame
Powder coated steel mounting plate with center balanced lift and four rubber isolators
Unit Includes
Quick connect nozzles - 0°, 15°, 25° and detergent nozzle · 50-foot x 3⁄8-inch non-marking hose · Two piece, 36-inch lance with trigger gun
Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
Specifications
-
PSI
2000
-
GPM
2.7
-
Displacement/ Engine
196cc Honda GX200 OHV
-
Pump
AR
-
Unloader
Adjustable Pressure
Weights & Dimensions
-
Net Weight
56.00 lbs.
-
Shipping Weight
75.00 lbs.
-
Length
18.00 in.
-
Width
14.50 in.
-
Height
18.00 in.
Options
- No options
Warranty Information
- 3 Year Honda Engine
- 7 Year AR Pump
Additional Info
Chat With An Expert
Find A Service Center
Support Videos
