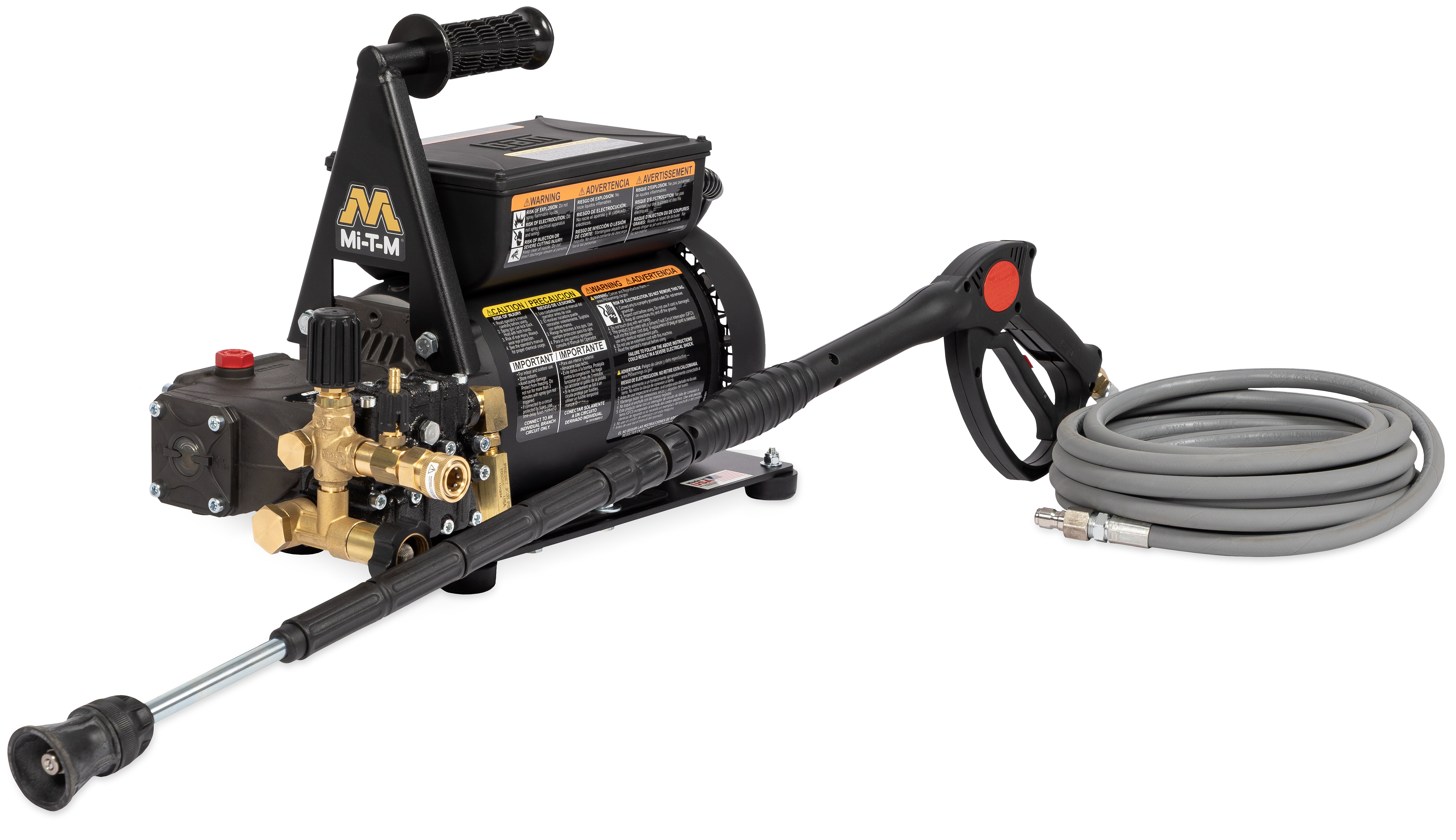

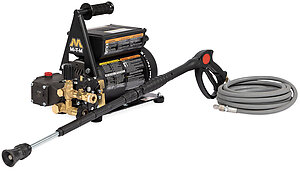

CD Series Electric Direct Drive - CD-1002-4MUH

expand-icon

Resources

Find A Local Dealer

Get Started

CD-1002-4MUH

This electric series is lightweight and a perfect option for effectively washing wooden surfaces, driveways, sidewalks and siding.

Pump
Anti-corrosion cast iron manifold · Thermal and safety relief valves · Built-in low pressure detergent injector

Motor
Totally enclosed fan-cooled electric motor with magnetic circuit breaker · 35-foot, 20-amp power cord with GFCI

Frame
Powder coated steel mounting plate with center balanced lift and four rubber isolators

Unit Includes
15° high/low pressure nozzle · 25-foot x 3⁄8-inch non-marking hose · Two-piece, 36-inch lance with insulated trigger gun

Pump accepts incoming water up to 175°F

Specifications

  • PSI

    1000

  • GPM

    2.0

  • Horsepower/Motor

    1.5 HP, 120V, 1Ø, 13.2A

  • Pump

    General

  • Unloader

    Adjustable Pressure

  • Plug Type

    NEMA 5-15P

Weights & Dimensions

  • Net Weight

    67.00 lbs.

  • Shipping Weight

    78.00 lbs.

  • Length

    21.00 in.

  • Width

    13.00 in.

  • Height

    15.00 in.

Options

  • CX-0030 High Pressure Hose - 50-Foot

    For when you need extra hose for added mobility

Warranty Information
  • 1 Year Electric Motor
  • 7 Year General Pump
