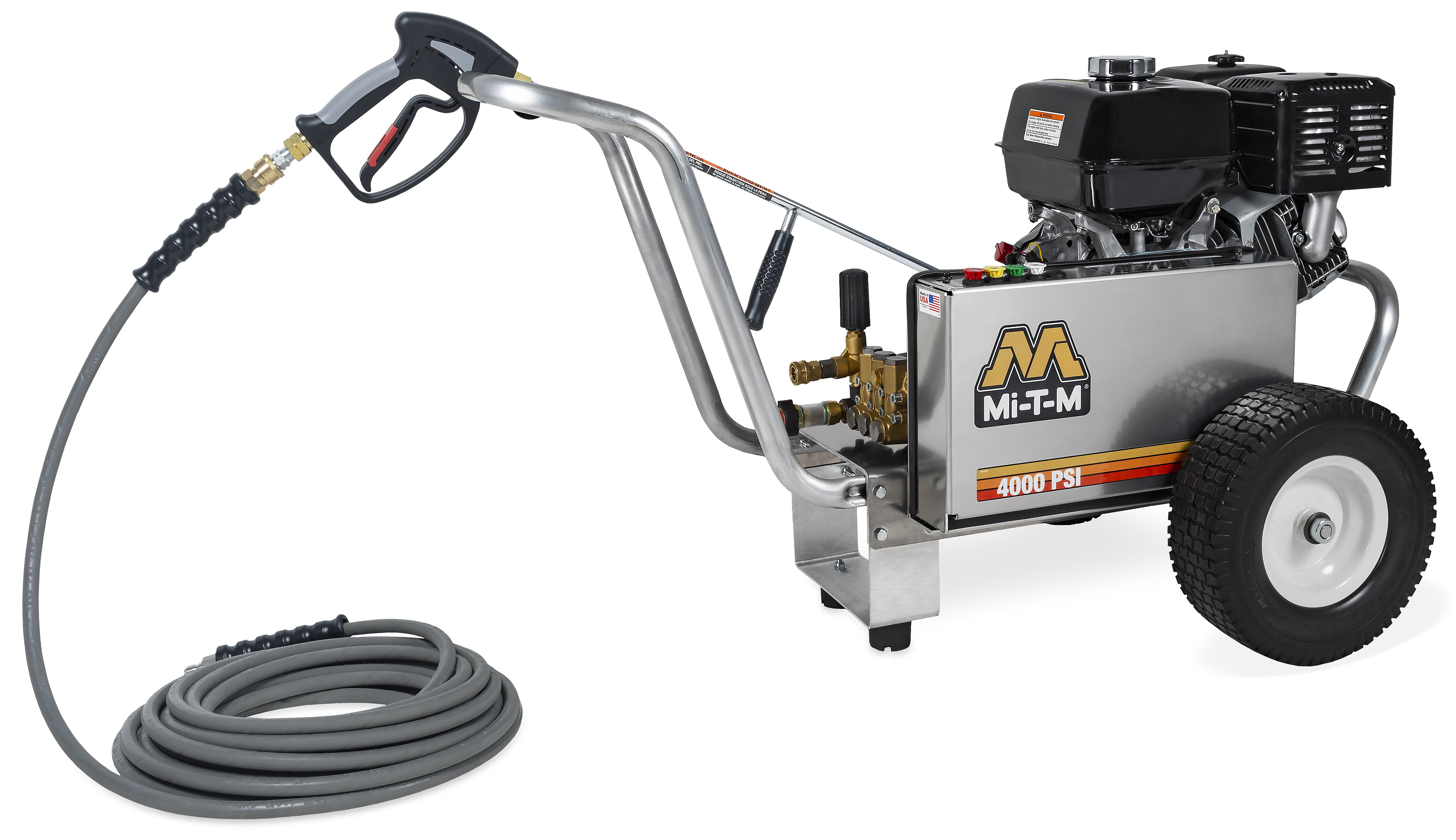

Job ProÂ® Aluminum Series Gasoline Belt Drive - CBA-4004-PMAH

Get Started

CBA-4004-PMAH

This pressure washer is a high-powered workhorse that delivers performance on a routine basis. Perfect for removing the toughest stains on brickwork and concrete.

Pump: Belt drive triplex piston AR pump · Equipped with the Mi-T-M Pressure Relief Start which eliminates pressure build-up in the system · Stainless-steel and brass Mi-T-M unloader · Forged brass manifold · Thermal relief valve · Water filter with clear sleeve for screen inspection

Frame: Lightweight, corrosion-resistant aluminum frame and base plate with 1-1/4-inch tube handles · 13-inch flat-free tires

Unit Includes: Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 3/8-inch non-marking high pressure hose with quick connects · Insulated trigger gun with safety lock-off · 48-inch lance with rubber grip

49 state engine. Not for sale in California.

Specifications

PSI

4000
GPM

3.4
Displacement/ Engine

389cc Honda GX390 OHV
Pump

AR
Unloader

Mi-T-M, Adjustable Pressure
Recommended Usage

30-40 Hours/Week

Weights & Dimensions

Net Weight

165.00 lbs.
Shipping Weight

215.00 lbs.
Length

47.00 in.
Width

27.50 in.
Height

28.50 in.

Options

CX-0005 Insulated Dual Lance

Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips - 36-inch
CX-0082 External Bypass System

Allows more water into the system to protect from heat build-up

Additional Info

Chat With An Expert

Find A Service Center

Support Videos

Related Parts & Accessories

12-Foot Fiberglass Extended Reach Wand
AW-7018-1200

13-Inch Hose Reels

14-Inch Rotary Surface Cleaner - Attachment

16-Inch Hose Reels

18-Foot Aluminum Extended Reach Wand
AW-7017-1800

18-Foot Fiberglass Extended Reach Wand
AW-7018-1800

18-Inch Wand Extension
AW-7103-1800

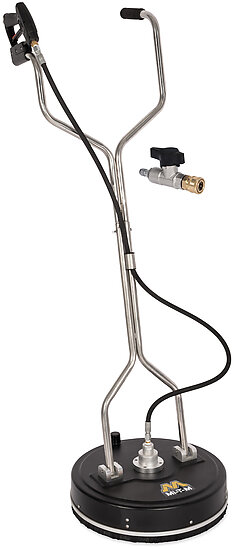

20-Inch Rotary Surface Cleaners - Walk-Behind

24-Foot Fiberglass Extended Reach Wand
AW-7018-2400

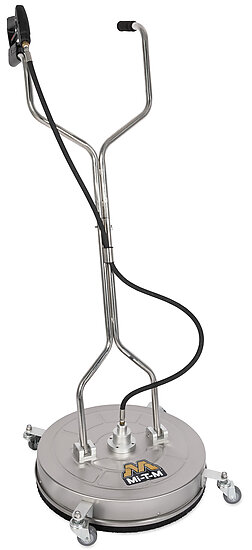

24-Inch Rotary Surface Cleaners - Walk-Behind

24-Inch Wand Extension
50-0180

28-Inch Rotary Surface Cleaner - Walk-Behind

36-Inch Aluminum Wand Extension
AW-7105-3600

36-Inch Wand Extension
AW-7103-3600

48-Inch Aluminum Wand Extension
AW-7105-4800

5-Foot Supply Hose
AW-3100-0002

72-Inch Aluminum Wand Extension
AW-7105-7200

72-Inch Wand Extension
AW-7103-7200

90-Inch Aluminum Wand Extension
AW-7105-9600

All Purpose Cleaner

Bucket Kit
851-0435

Buddy Box - Pressure Washer Parts Box
AW-1162-0194

Caster Wheel Kit
851-0436

Caster Wheel Kit
AW-5740-0015

Chemical Nozzles

Cold Water Extension Hoses

Cold Water Gun and Wand Assemblies

Deck & House Wash

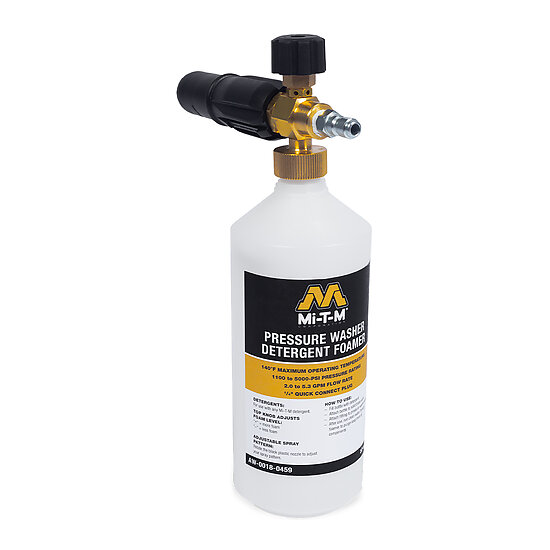

Detergent Foamer
AW-0018-0459

Digital Hour Meter/Tachometer
32-0416

Dual Gun Accessory Kit
AW-3100-0001

Dual Gun Adapter
851-0431

Dual Unit Kit
852-0208

Fittings

Gasket
850-0324

Gutter Cleaner
50-0201

Heavy-Duty Degreaser

High Pressure Detergent Injector

High Pressure Swivel Connector
AW-0023-0507

High Temperature O-Rings

Hose Reel Brackets & Elbow

Hose Reel Jumper Hoses

Hose Reel Kit
AW-3100-0004

Hot Water Dual Lance Assemblies

Hot Water Extension Hoses

Hot Water Skid Equipment Cover
AW-6000-1006

Industrial Water Supply Hose
15-0006

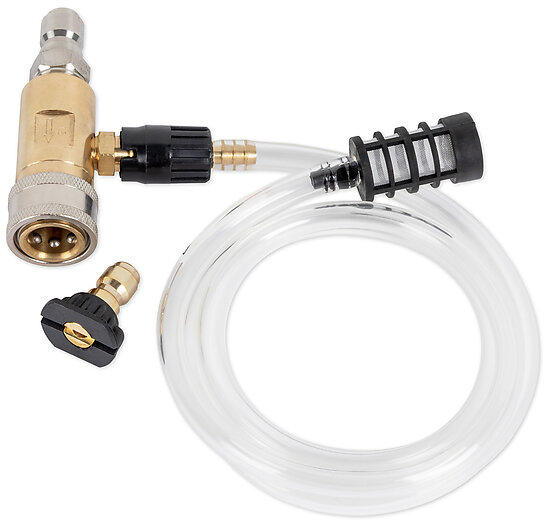

Low Pressure Detergent Injectors

Multi-Function Nozzles

O-rings

Pivot Coupler
50-0208

Powder Coated Steel Floor Stand
AW-9502-0001

Powder Coated Steel Wall Mounting Bracket; Front-Mount
AW-9502-0000

Powder Coated Steel Wall Mounting Bracket; Side-Mount
AW-9502-0003

Power Broom with Rotating Nozzle
AW-7012-7004

Pressure Washer Replacement Parts Box
AW-1162-0174

Pump Oil
AW-4085-0016

Pump Saver
AW-4070-0004

Pump Winterizing Blowout Fitting
AW-4070-0005

Quick Connect Misting Nozzle
AW-3100-0003

Quick Connect Nozzles

Rain Cap
20-0464A52

Rain Cap
20-1366A52

Removable Painted Front Panel
20-1070A18

Replacement Gun and Wand

Replacement Trigger Gun
16-0446

Roll Cages

Rotating Brush
AW-7003-1500

Rotating Nozzles

Sand Injector

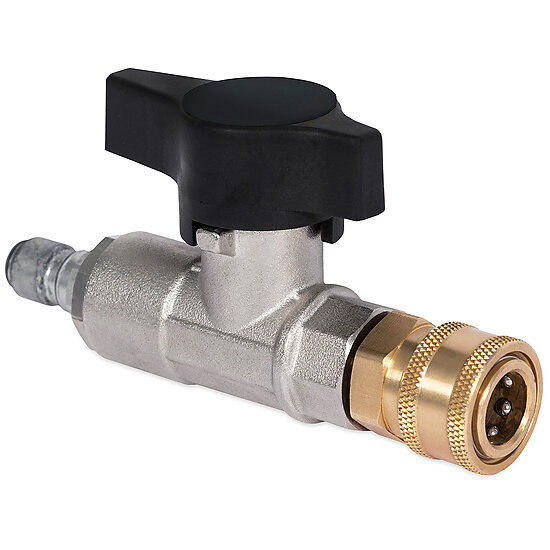

Shut-Off Ball Valve
