CBA Aluminum Series Gasoline Belt Drive - CBA-3504-1MAK

Get Started

CBA-3504-1MAK

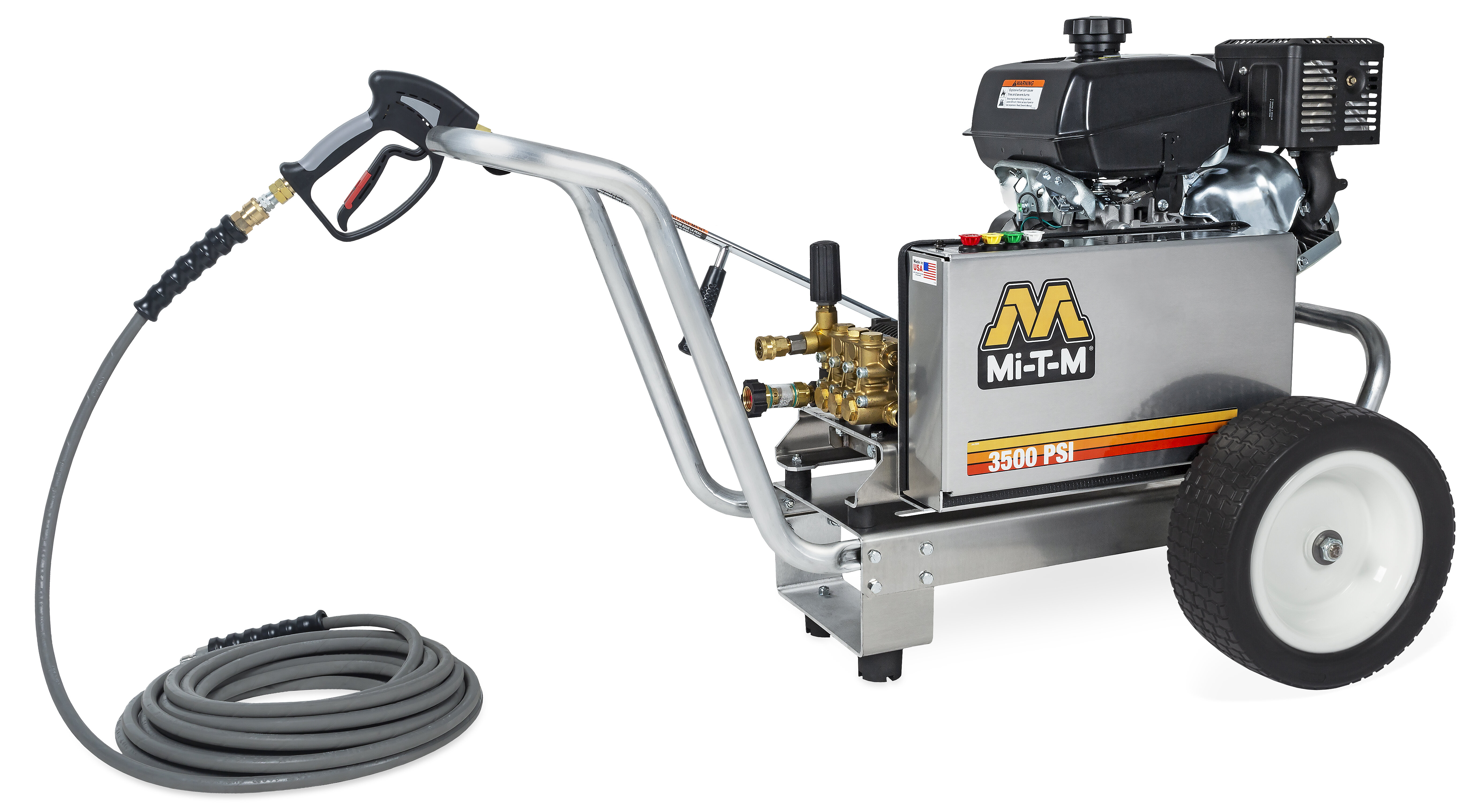

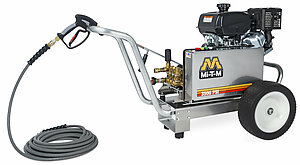

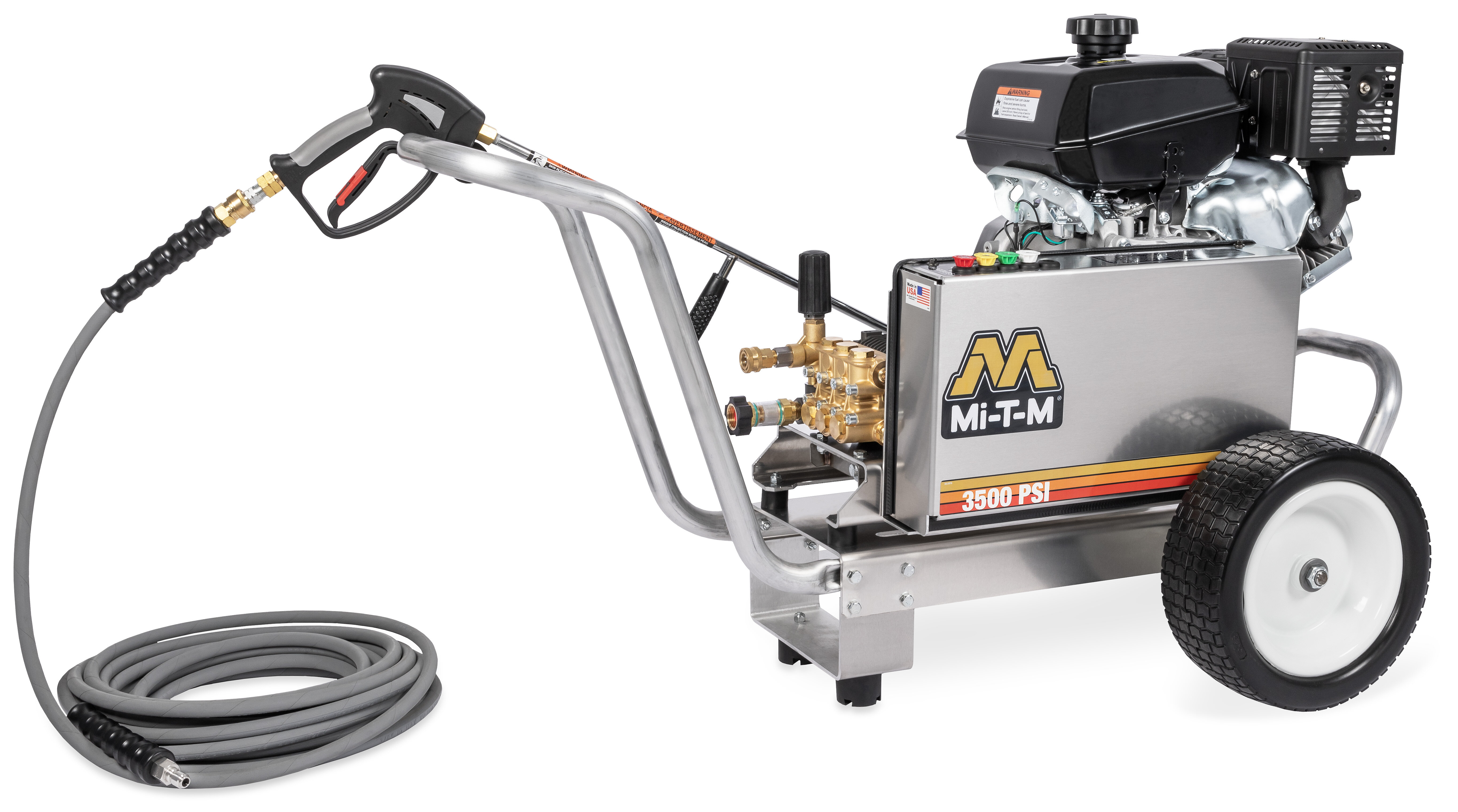

This belt-driven, aluminum series is built with longevity in mind. It’s the contractor choice for prepping surfaces and blasting away much and grime.

Pump
Equipped with Mi-T-M Pressure Relief Start · Forged brass manifold · Thermal relief valve · Water filter with clear sleeve for screen inspection

Frame
Corrosion-resistant aluminum frame · Patented vibration isolation plate · Two-piece belt guard · 13-inch flat-free tires

Unit Includes
Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 3/8-inch non-marking hose · Insulated trigger gun

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.

Specifications

PSI

3500
GPM

3.7
Displacement/ Engine

429cc Kohler CH440 OHV
Pump

AR
Unloader

Mi-T-M, Adjustable Pressure
Lance

48 in.

Weights & Dimensions

Net Weight

165.00 lbs.
Shipping Weight

215.00 lbs.
Length

47.00 in.
Width

27.50 in.
Height

28.50 in.

Options

CX-0082 External Bypass System

Allows more water into the system to protect from heat build-up

Warranty Information

1 Year Mi-T-M Unloader
3 Year Kohler Engine
7 Year AR Pump
