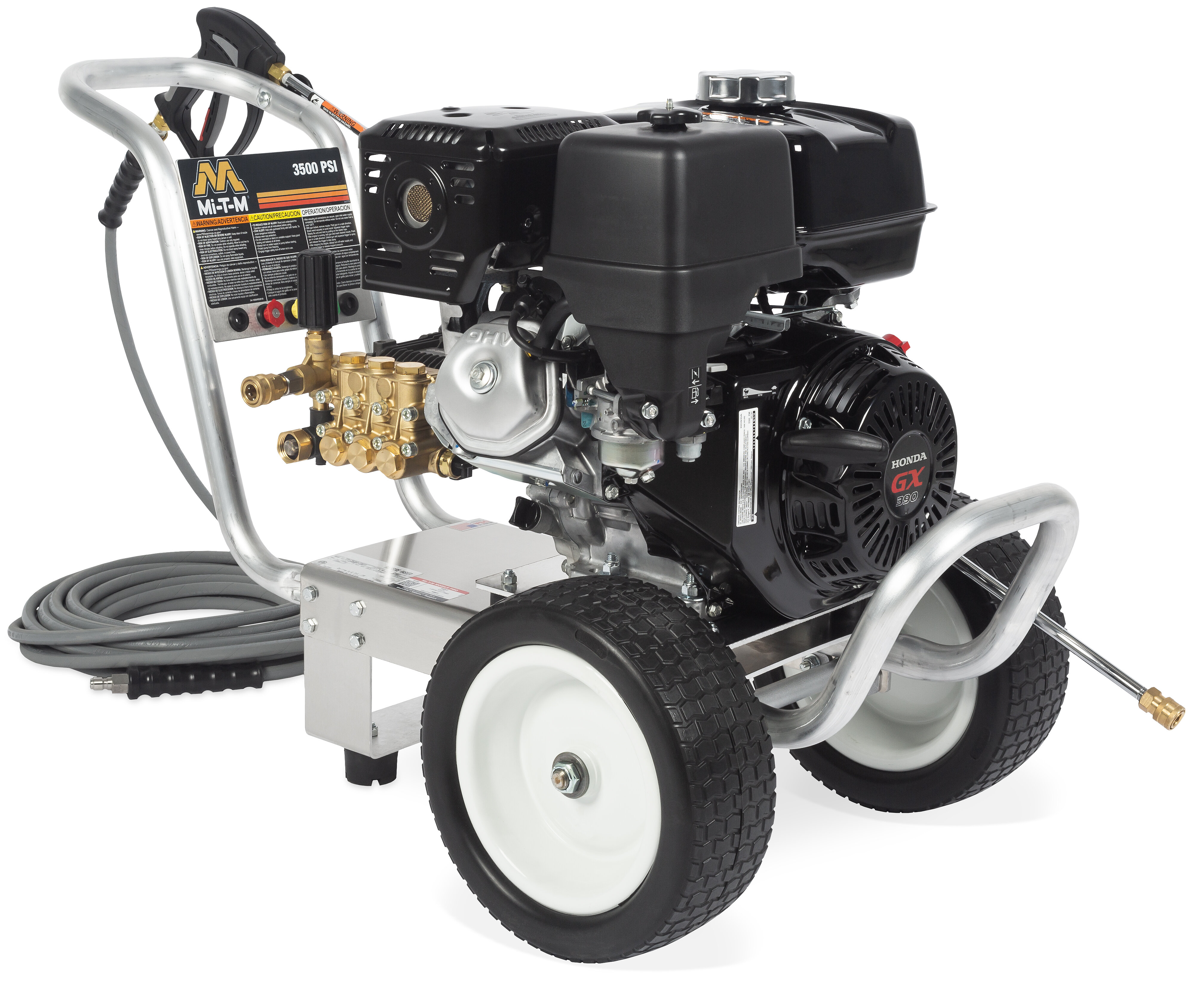

CA Aluminum Series Gasoline Direct Drive - CA-3504-1MAH

Get Started

CA-3504-1MAH

Contractors choose the CA Aluminum Series for power and portability. This series is equipped with a corrosion-resistant aluminum frame and patented vibration plate for added durability.

Pump
Equipped with Mi-T-M Pressure Relief Start · Forged brass manifold · Thermal relief valve · In-line water strainer

Frame
Corrosion-resistant aluminum frame · Patented vibration isolation plate · 13-inch flat-free tires

Unit Includes
Quick connect nozzles – 0°, 15° and 25° · 50-foot x 3/8-inch non-marking hose · Insulated trigger gun

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
49 state engine. Not for sale in California.

Specifications

PSI

3500
GPM

3.5
Displacement/ Engine

389cc Honda GX390 OHV
Pump

AR
Unloader

Mi-T-M, Adjustable Pressure
Lance

48 in.

Weights & Dimensions

Net Weight

125.00 lbs.
Shipping Weight

175.00 lbs.
Length

42.50 in.
Width

23.50 in.
Height

24.50 in.

Options

CX-0098 External Bypass System

Allows more water into the system to protect from heat build-up

Videos

Links / Blog Articles

Warranty Information

1 Year Mi-T-M Unloader
3 Year Honda Engine
7 Year AR Pump
