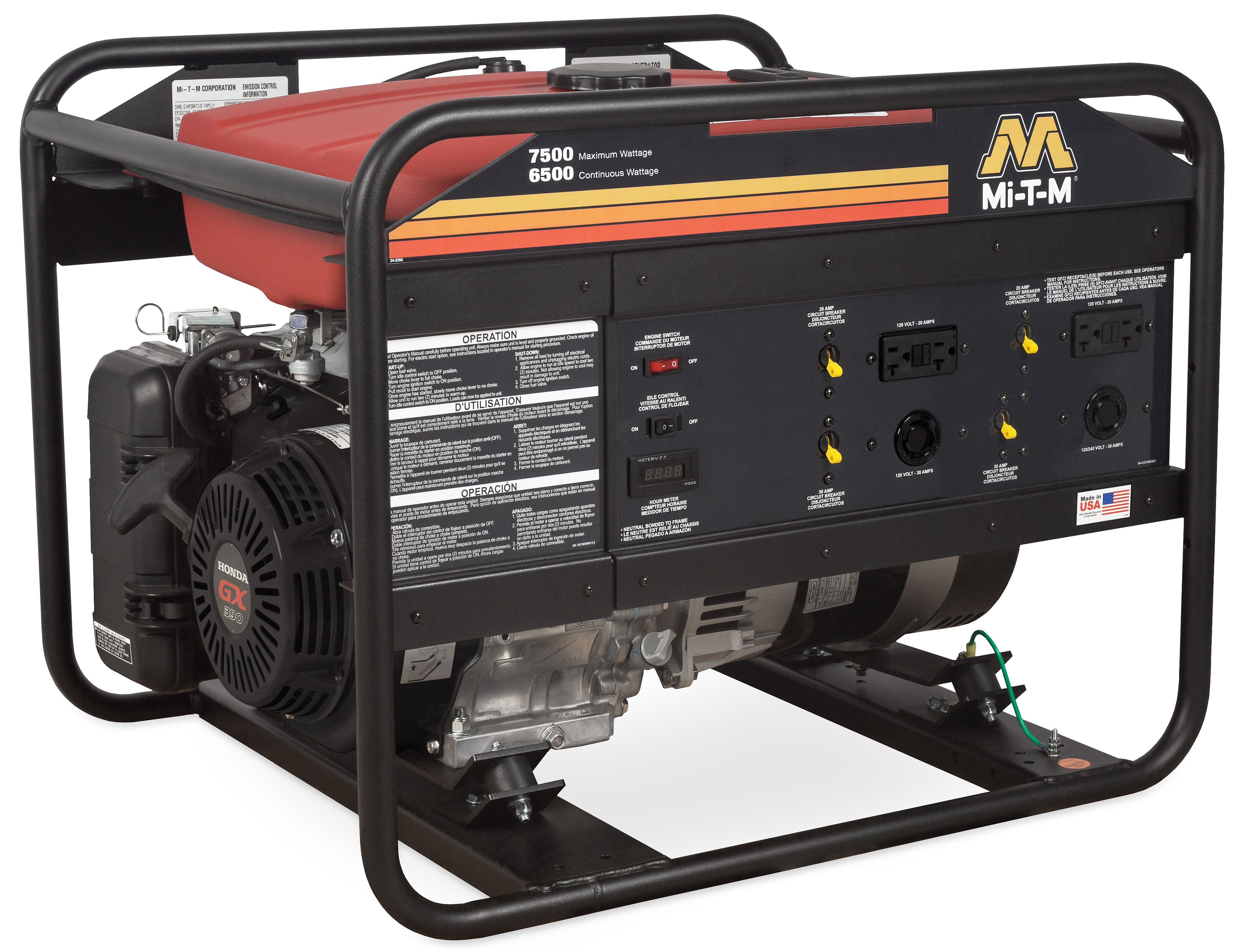

7500-Watt Gasoline Generator - GEN-7500-0MH0

Get Started

GEN-7500-0MH0

Engineered for tough jobs, these 7500 to 8000-watt generators deliver reliable power with durable construction and essential safety features.

Alternator
Total harmonic distortion (THD) less than 5% · Copper windings

Frame
Powder coated wraparound frame · Angled isolator design features four neoprene isolators

Components
Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles · Large low tone muffler · Fuel shut-off valve · Easy-to-read fuel gauge · Idle control · Voltmeter · Hour meter · Heavy-duty industrial air cleaner · USDA/USFS-approved spark arrestors

Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.
49 state engine and/or fuel tank. Not for sale in California.

Specifications

Max. AC Output

7500 watts
Rated AC Output

6500 watts
Displacement/ Engine

389cc Honda GX390 OHV
Alternator

Brushless 120V/240V, 60Hz
Max. Amps (120V/240V)

62.5/31.3
Cont. Amps (120V/240V)

54.2/27.1
Receptacles

(2) 120V, 20A GFCI Duplex; (1) 120V, 30A Twist Lock; (1) 120V/240V, 30A Twist Lock
Circuit Breakers

(2) 20A Circuit Breakers, Single Pole; (1) 30A Toggle Circuit Breaker, Single Pole; (1) 30A Toggle Circuit Breaker, Double Pole
Rated Speed

3600 RPM
Decibel Rating

80.0
Fuel Capacity

7.3 gallons
Run Time (At Full Load)

6.9 hours
