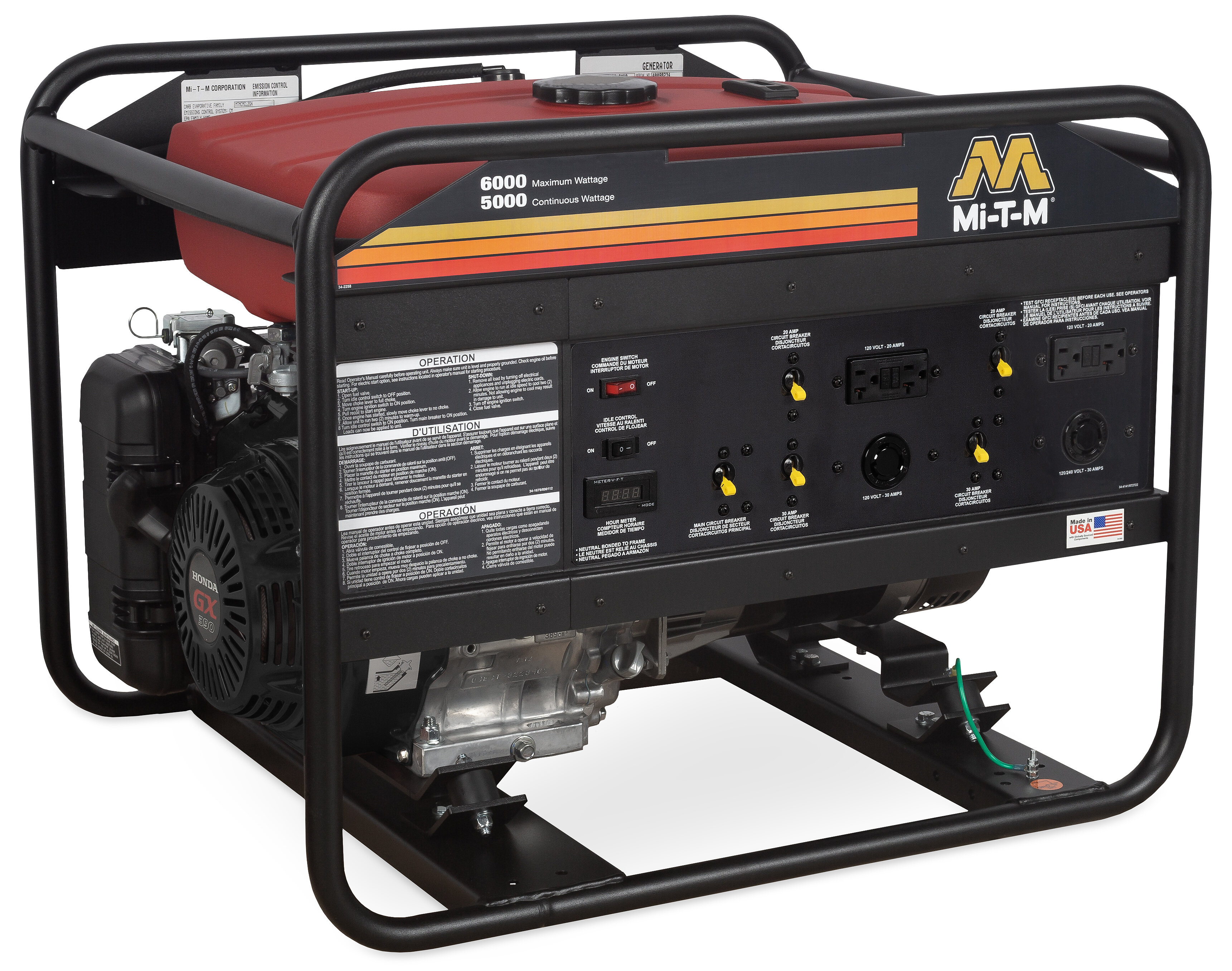

6000-Watt Gasoline Generator - GEN-6000-0MH0

Get Started

GEN-6000-0MH0

These generators feature a wraparound frame for durability and are powered by OHV engines that are built to last.

Alternator
Total harmonic distortion (THD) less than 5% · Copper windings

Frame
Powder coated wraparound frame · Angled isolator design features four neoprene isolators

Components
Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles · Large low tone muffler · Fuel shut-off valve · Easy-to-read fuel gauge · Idle control · Voltmeter/hour meter · Heavy-duty industrial air cleaner · USDA/USFS-approved spark arrestors

Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.
49 state engine and/or fuel tank. Not for sale in California.

Specifications

Max. AC Output

6000 watts
Rated AC Output

5000 watts
Displacement/ Engine

389cc Honda GX390 OHV
Alternator

Brushless 120V/240V, 60Hz
Max. Amps (120V/240V)

50.0/25.0
Cont. Amps (120V/240V)

41.6/20.8
Receptacles

(2) 120V, 20A GFCI Duplex; (1) 120V/240V, 20A Twist Lock; (1) 120V, 30A Twist Lock
Circuit Breakers

(1) Main Circuit Breaker; (2) 20A Toggle Circuit Breakers, Single Pole; (1) 30A Toggle Circuit Breaker, Single Pole; (1) 30A Toggle Circuit Breaker, Double Pole
Rated Speed

3600 RPM
Decibel Rating

77.1
Fuel Capacity

7.3 gallons
Run Time (At Full Load)

8.0 hours
