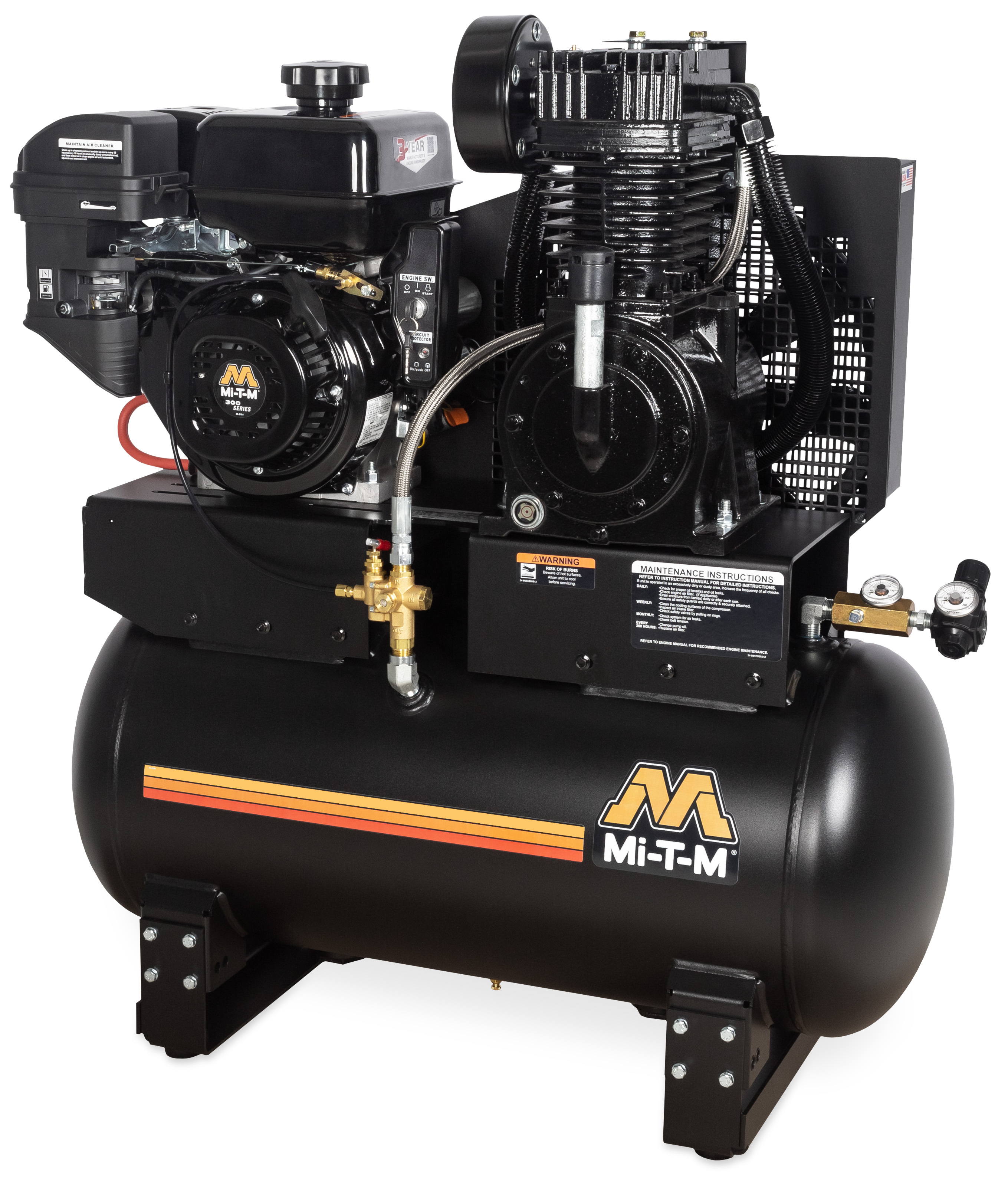

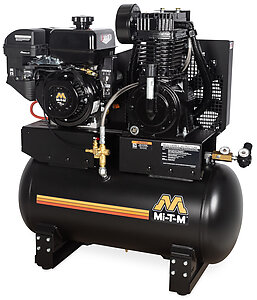

30-Gallon Two Stage Gasoline - AM2-SM09-30ME

Get Started

AM2-SM09-30ME

Designed with a powder coated ASME receiver tank, you will experience proven performance from the 30-gallon air compressor time after time.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16-1/2-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.
Equipped with electric start – battery, box and cables not included.

Specifications

CFM @ PSI

17.2 @ 175
Displacement/ Engine

300cc Mi-T-M OHV
Tank Size

30-gallon
Engine Idle Control

Cable Throttle

Weights & Dimensions

Net Weight

379.00 lbs.
Shipping Weight

449.00 lbs.
Length

40.50 in.
Width

17.50 in.
Height

44.50 in.

Options

AX-0003 Manual Drain/Regulator/Metal Bowl

Drains moisture from air system
AX-0017 Electric Start

For easy starting - sealed battery, tray, box and cables included
AX-0077 Battery Box and Tray

Attaches to engine side of unit
IX-0067 Remote Start/Choke

7-foot wire extension for key switch, sealed cable

Videos

Links / Blog Articles

Check out the latest tips and advice

Warranty Information

2 Year Pump Exchange
3 Year Mi-T-M Engine
