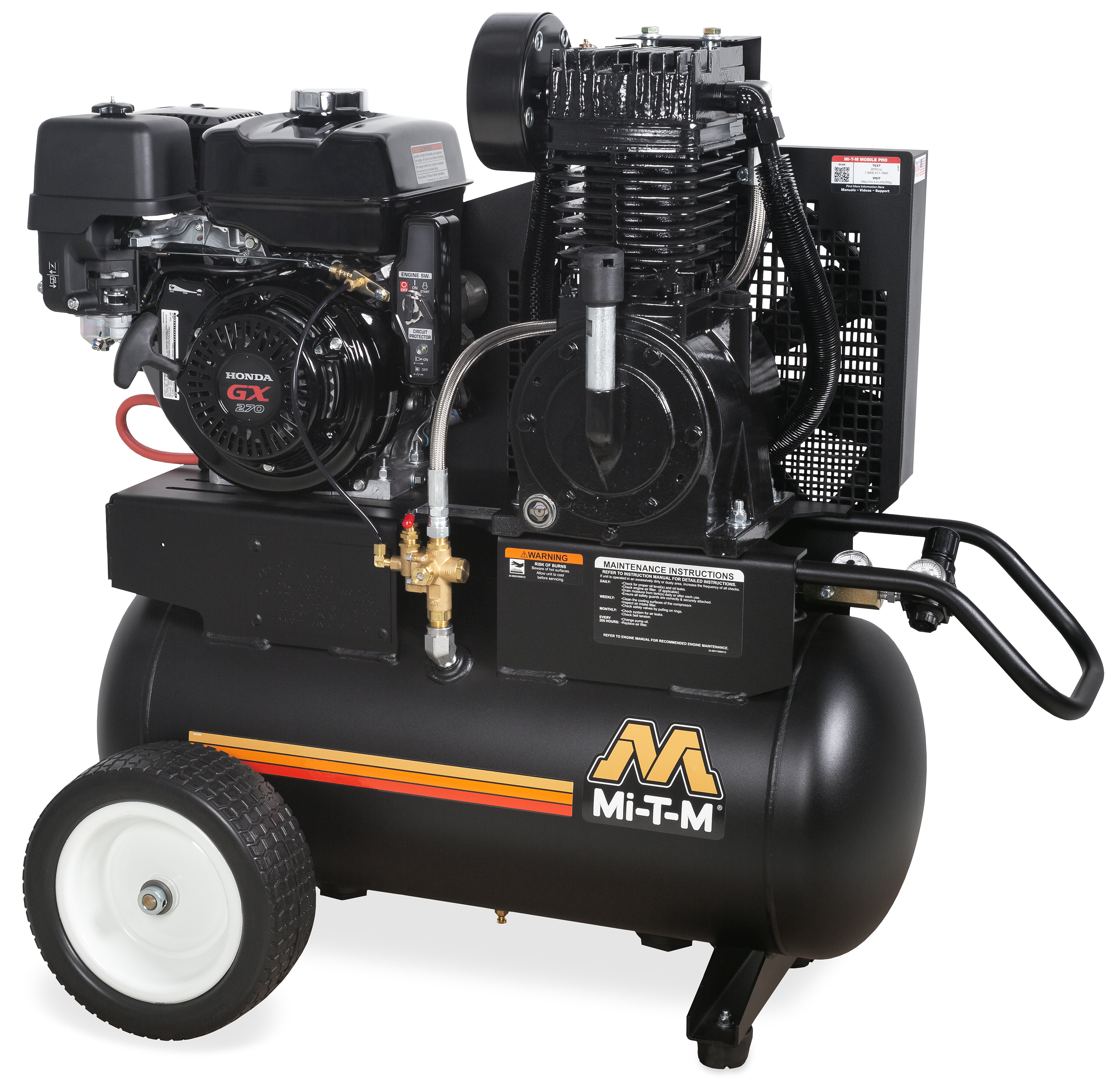

20-Gallon Two Stage Gasoline - AM2-PH09-20ME

Get Started

AM2-PH09-20ME

Mount this unit in the back of a service truck or trailer to service large equipment in remote locations. This two stage 20-gallon air compressor offers large air storage capacity and delivers optimum air power.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 13-inch flat-free tires

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 1/2-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.
Equipped with electric start – battery, box and cables not included.

Specifications

CFM @ PSI

17.2 @ 175
Displacement/ Engine

270cc Honda GX270 OHV
Engine Idle Control

Pneumatic

Weights & Dimensions

Net Weight

313.00 lbs.
Shipping Weight

363.00 lbs.
Length

46.00 in.
Width

26.00 in.
Height

39.50 in.

Options

AX-0003 Manual Drain/Regulator/Metal Bowl

Drains moisture from air system
IX-0055 Remote Start/Choke

7-foot wire extension for key switch
IX-0059 Remote Start/Choke

7-foot wire extension for key switch, sealed cable
AX-0017 Electric Start

For easy starting - sealed battery, tray, box and cables included
AX-0077 Battery Box and Tray

Attaches to engine side of unit

Videos

Links / Blog Articles

Check out the latest tips and advice

Warranty Information

2 Year Pump Exchange
3 Year Honda Engine
