8-Gallon Two Stage Gasoline - AM2-PH09-08ME

Get Started

AM2-PH09-08ME

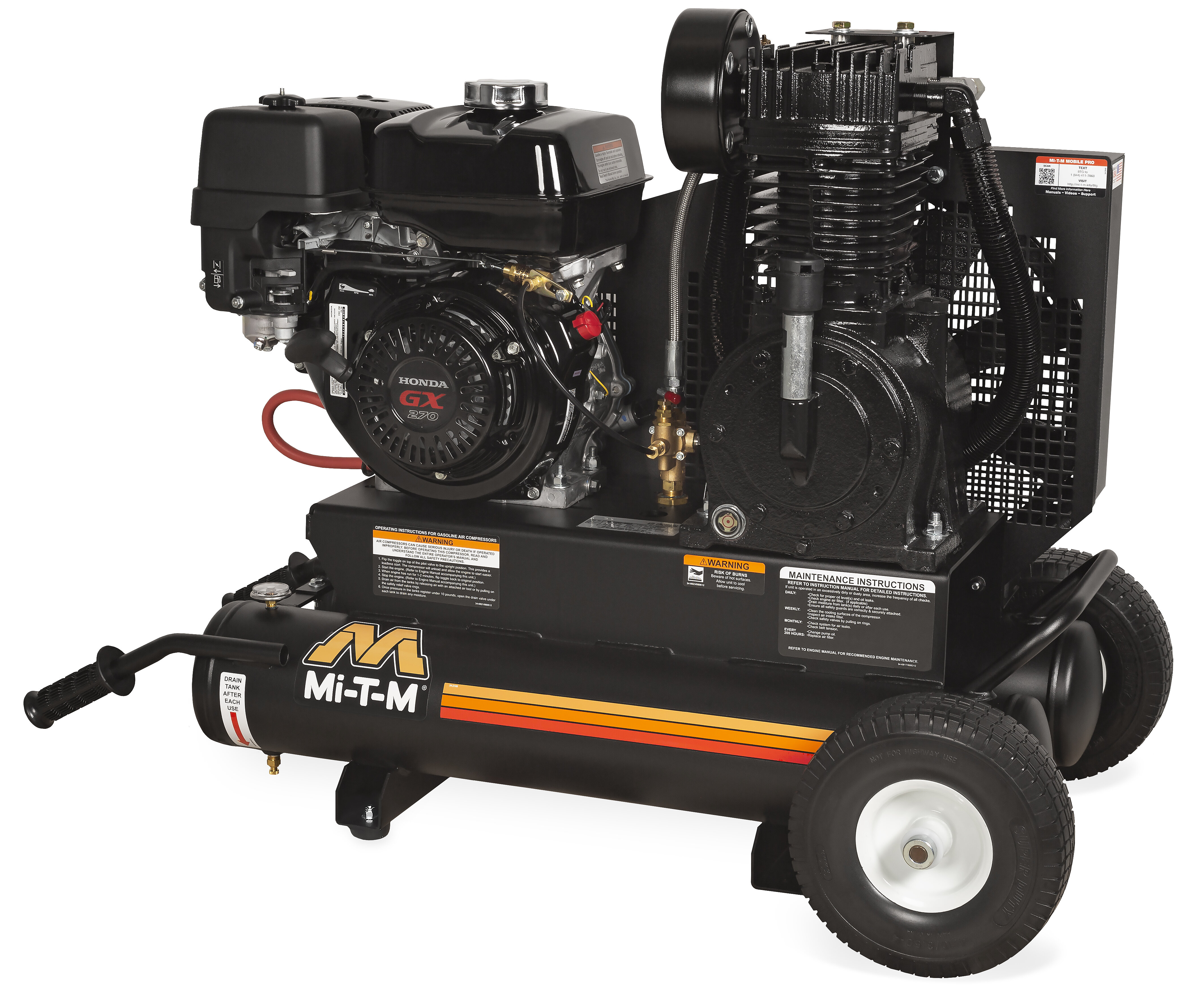

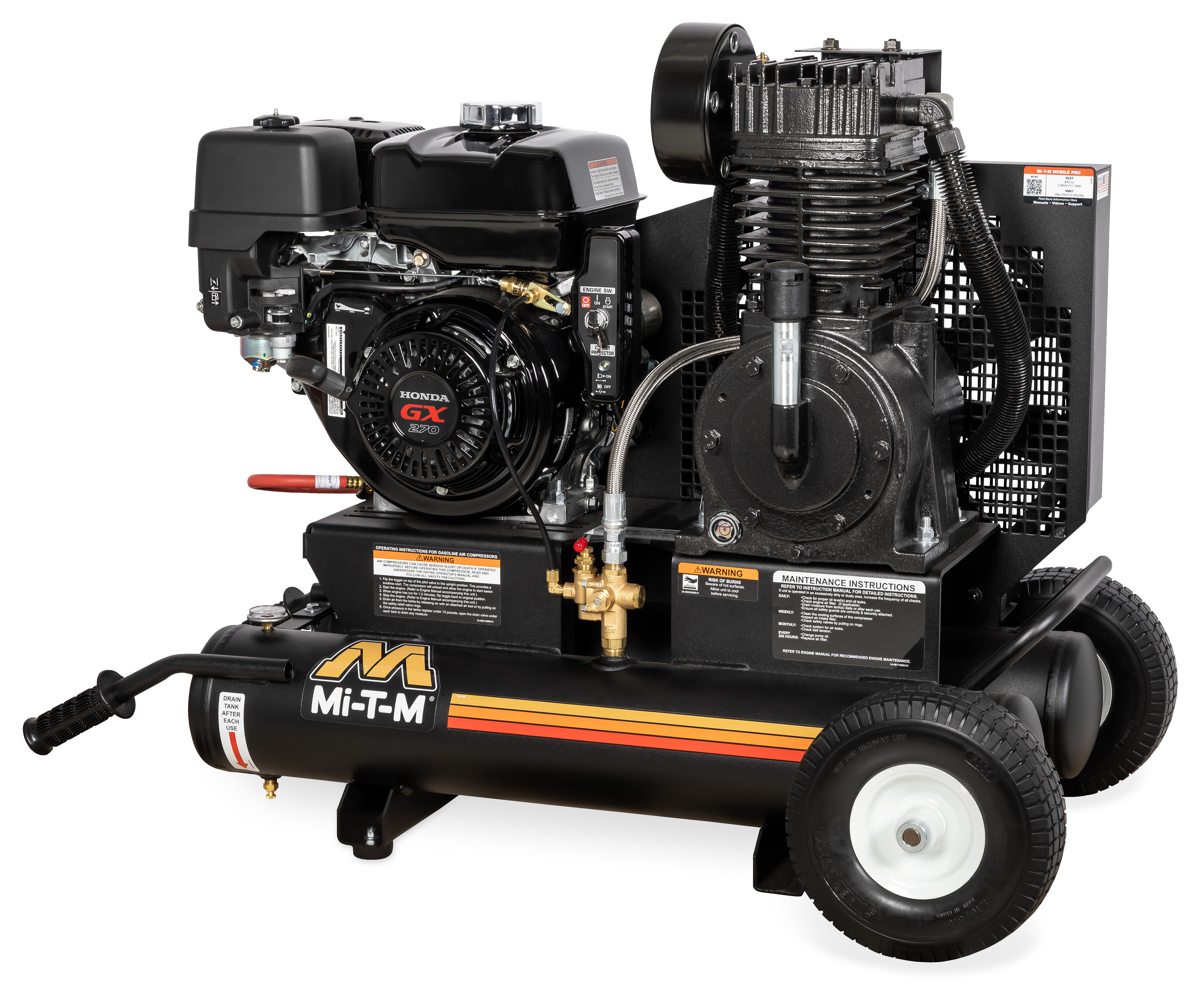

This wheelbarrow style, versatile unit is perfect for new construction, remodeling and shop projects. It can be used to power a variety of air tools including paint sprayers and pneumatic drills.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Frame
Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 10-inch flat-free tires

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 1/2-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.
Equipped with electric start – battery, box and cables not included.

Specifications

CFM @ PSI

17.2 @ 175
Displacement/ Engine

270cc Honda GX270 OHV
Engine Idle Control

Pneumatic

Weights & Dimensions

Net Weight

267.00 lbs.
Shipping Weight

337.00 lbs.
Length

44.00 in.
Width

26.00 in.
Height

31.00 in.

Options

AX-0003 Manual Drain/Regulator/Metal Bowl

Drains moisture from air system
IX-0055 Remote Start/Choke

7-foot wire extension for key switch
IX-0059 Remote Start/Choke

7-foot wire extension for key switch, sealed cable
AX-0084 Stationary Option

Converts the portable model to a stationary model, removes the tires and handles

Videos

Links / Blog Articles

Check out the latest tips and advice

Warranty Information

2 Year Pump Exchange
3 Year Honda Engine
