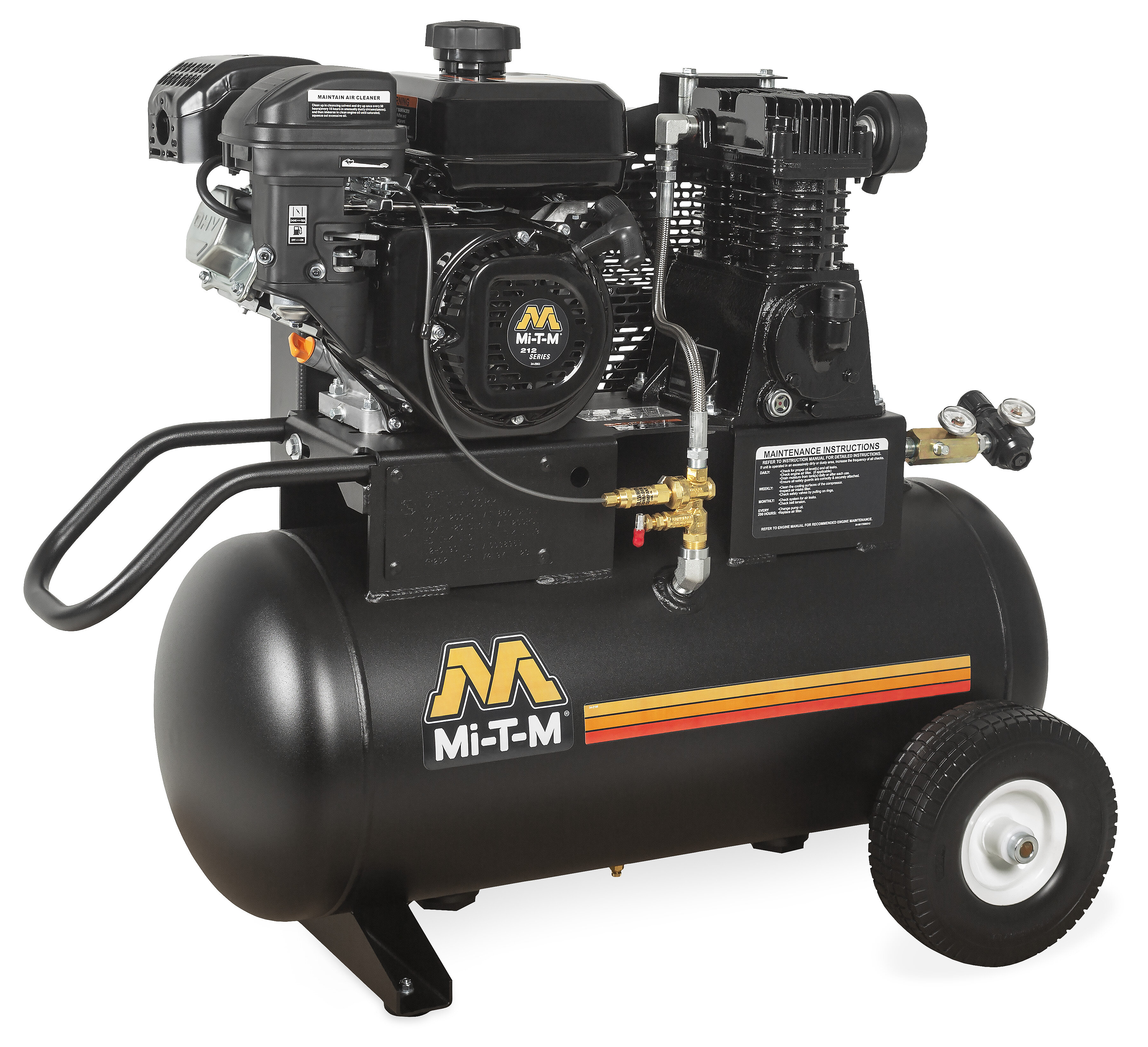

20-Gallon Single Stage Gasoline - AM1-PM07-20M

Get Started

AM1-PM07-20M

Power a wide variety of air tools with the 20-gallon single stage air compressor. Contractors love it for the maximum air storage to get jobs done right.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 10-inch flat-free tires

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12-inch fly wheel · Quality pilot valve unloader

Specifications

CFM @ PSI

13.9 @ 90
Displacement/ Engine

212cc Mi-T-M OHV
Engine Idle Control

Cable Throttle

Weights & Dimensions

Net Weight

212.00 lbs.
Shipping Weight

272.00 lbs.
Length

37.00 in.
Width

23.50 in.
Height

33.00 in.

Options

AX-0003 Manual Drain/Regulator/Metal Bowl

Drains moisture from air system
AX-0027 Stationary Kit

Converts the portable model to a stationary model, removes the wheels and adds the stationary leg

Videos

Links / Blog Articles

Check out the latest tips and advice

Warranty Information

2 Year Pump Exchange
3 Year Mi-T-M Engine
