8-Gallon Single Stage Gasoline - AM1-PM07-08ME

Get Started

AM1-PM07-08ME

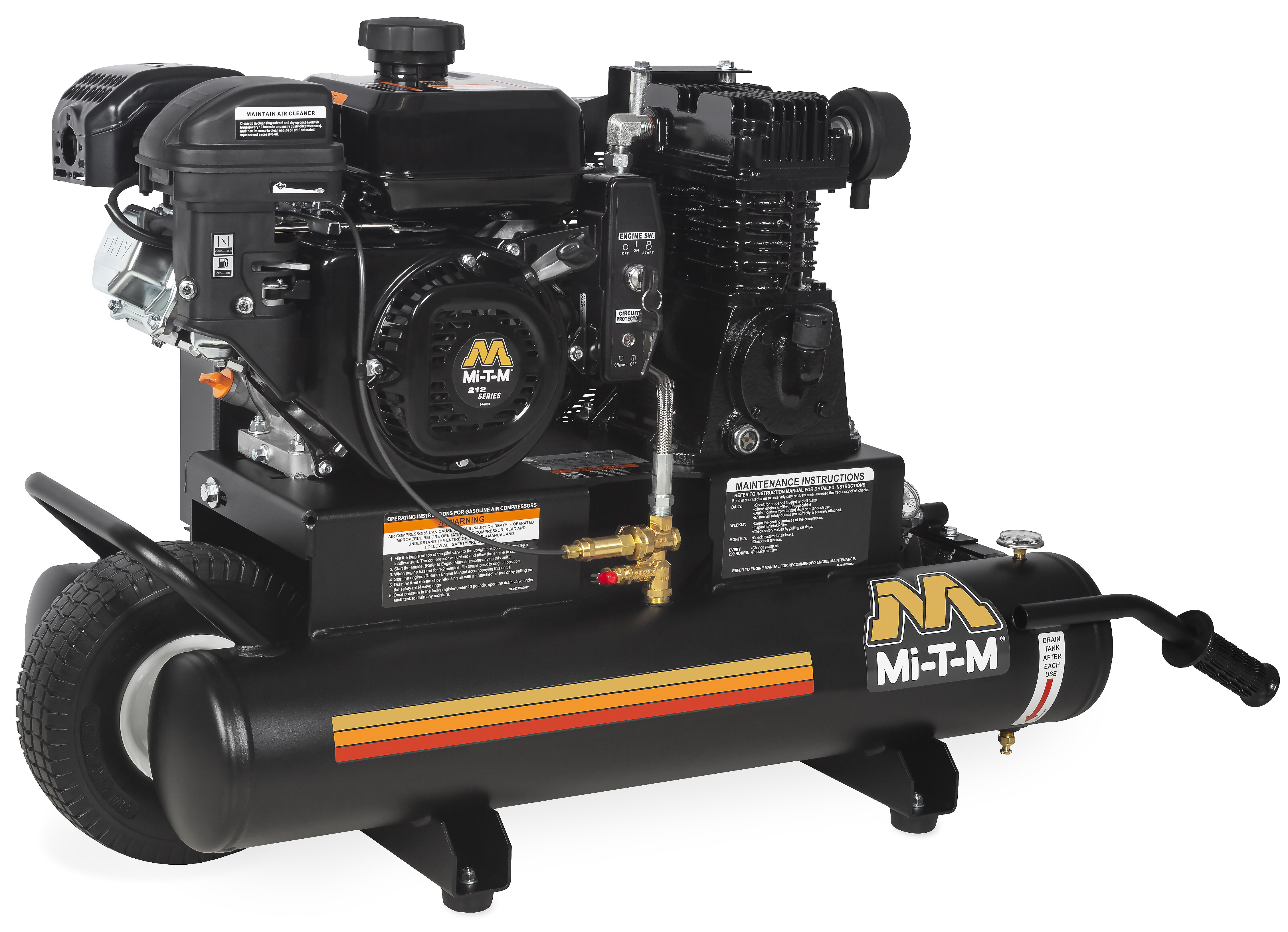

The 8-gallon air compressor is essential for powering air tools. The wheelbarrow design allows for easy portability from one job to the next.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Frame
Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 10-inch flat-free tire

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12-inch fly wheel · Quality pilot valve unloader

Equipped with electric start – battery, box and cables not included.

Specifications

CFM @ PSI

13.9 @ 90
Displacement/ Engine

212cc Mi-T-M OHV
Engine Idle Control

Cable Throttle

Weights & Dimensions

Net Weight

182.00 lbs.
Shipping Weight

207.00 lbs.
Length

44.50 in.
Width

18.50 in.
Height

27.00 in.

Options

AX-0003 Manual Drain/Regulator/Metal Bowl

Drains moisture from air system
AX-0078 Stationary Option

Converts the portable model to a stationary model, removes the wheel

Videos

Links / Blog Articles

Check out the latest tips and advice

Warranty Information

2 Year Pump Exchange
3 Year Mi-T-M Engine

Chat With An Expert

Find A Service Center

Support Videos
