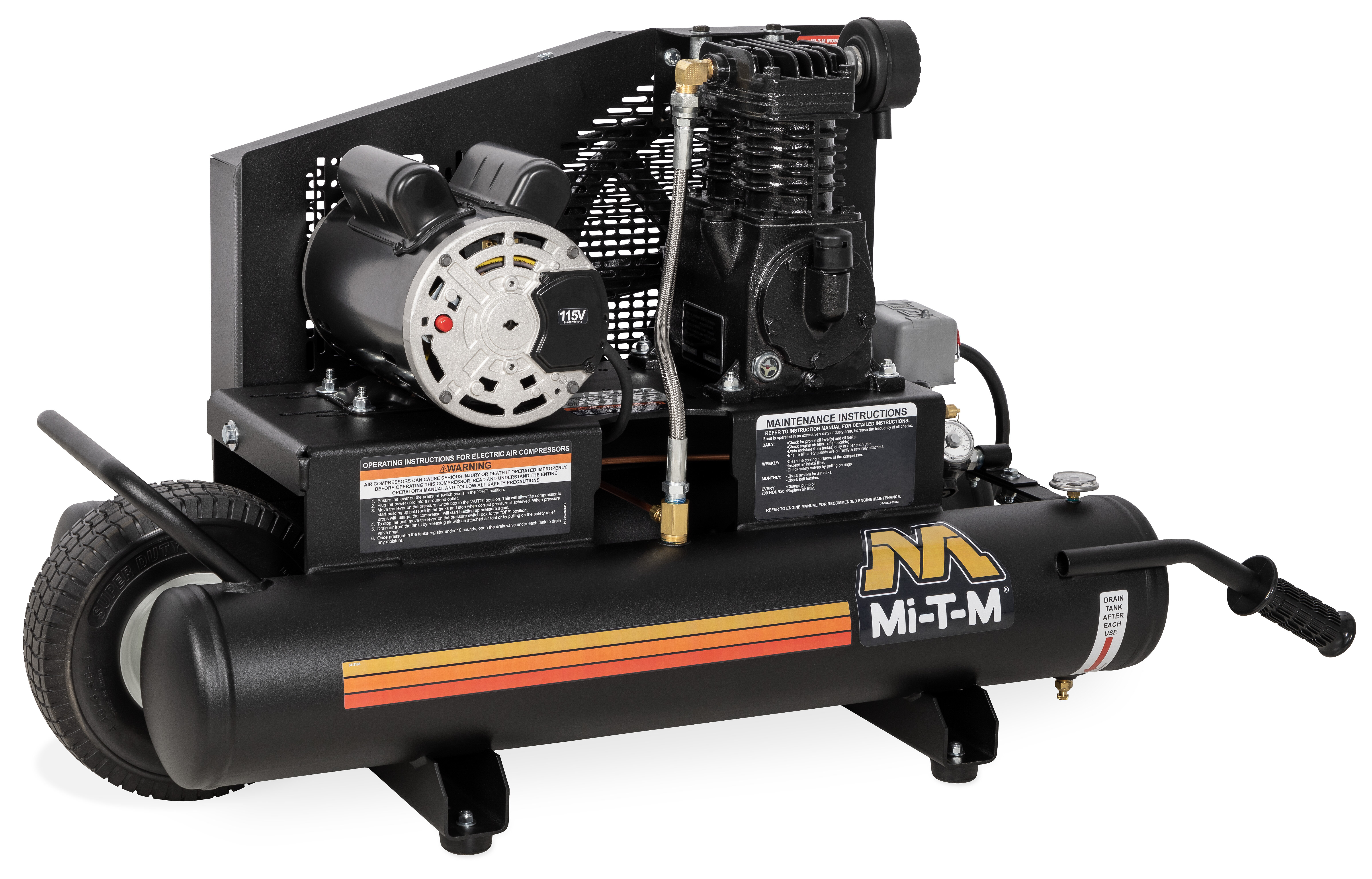

8-Gallon Single Stage Electric - AM1-PE15-08M

Get Started

AM1-PE15-08M

The 8-gallon electric air compressor offers versatility for both large and small jobs. It's ideal for many uses.

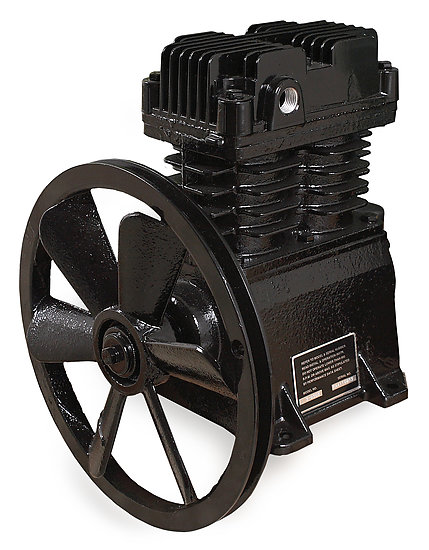

Compressor Pump

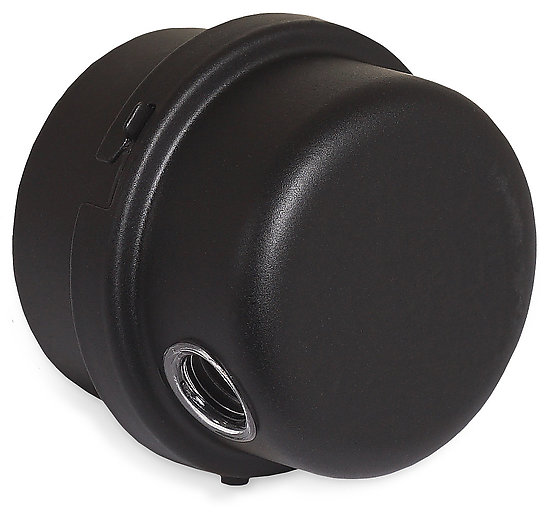

Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Motor
Auto start/stop – continuous run optional · Thermal overload motor protection · 8-foot power cord

Frame
Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 10-inch flat-free tire

Components

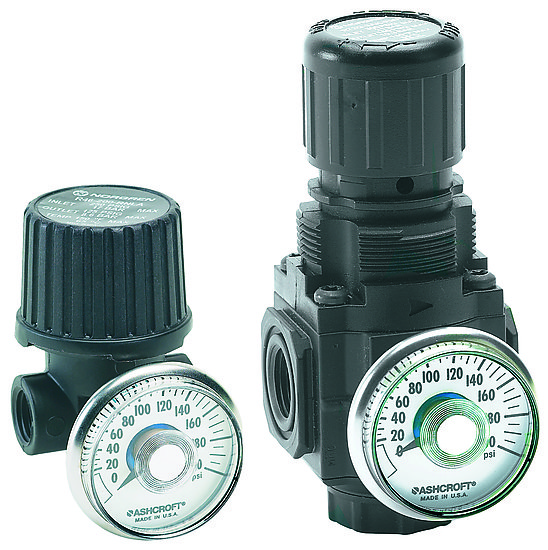

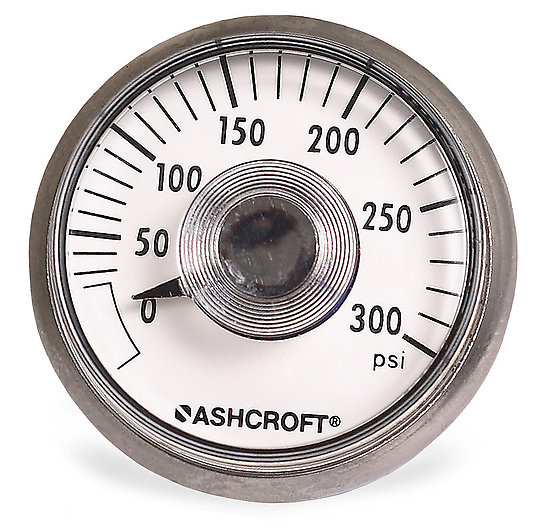

Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 10-inch fly wheel · Industrial-grade pressure switch · Start/stop control set at 95 to 125-PSI (Not on continuous run models)

Specifications

CFM @ PSI

7.3 @ 90
Horsepower/Motor

1.5 HP, 120V, 13.2A
Plug Type

NEMA 5-15P

Weights & Dimensions

Net Weight

170.00 lbs.
Shipping Weight

190.00 lbs.
Length

44.50 in.
Width

18.50 in.
Height

25.00 in.

Options

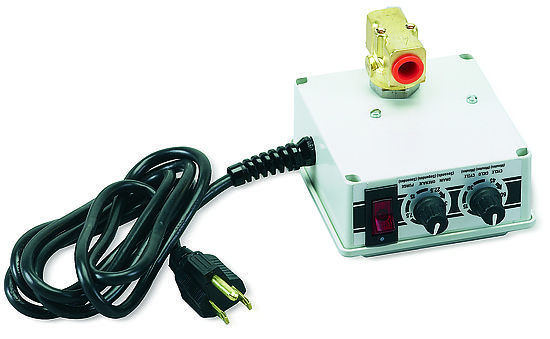

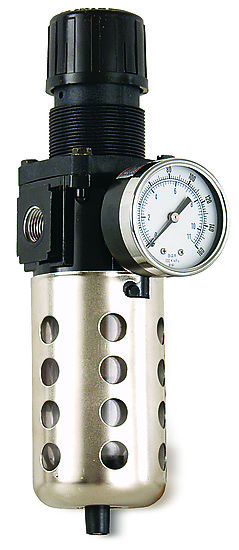

AX-0002 Auto Drain/Regulator/Plastic Bowl

Drains moisture from air system

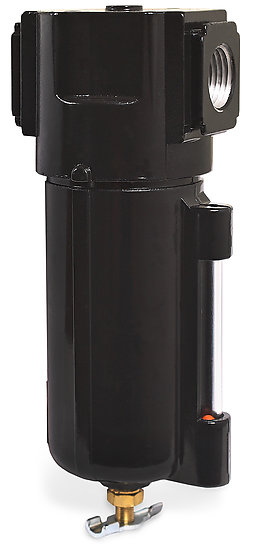

AX-0003 Manual Drain/Regulator/Metal Bowl

Drains moisture from air system
AX-0078 Stationary Option

Converts the portable model to a stationary model, removes the wheel
AX-0005 Dual Control

Compressor can be operated in start/stop mode or continuous run where pilot valve exhausts air to atmosphere
