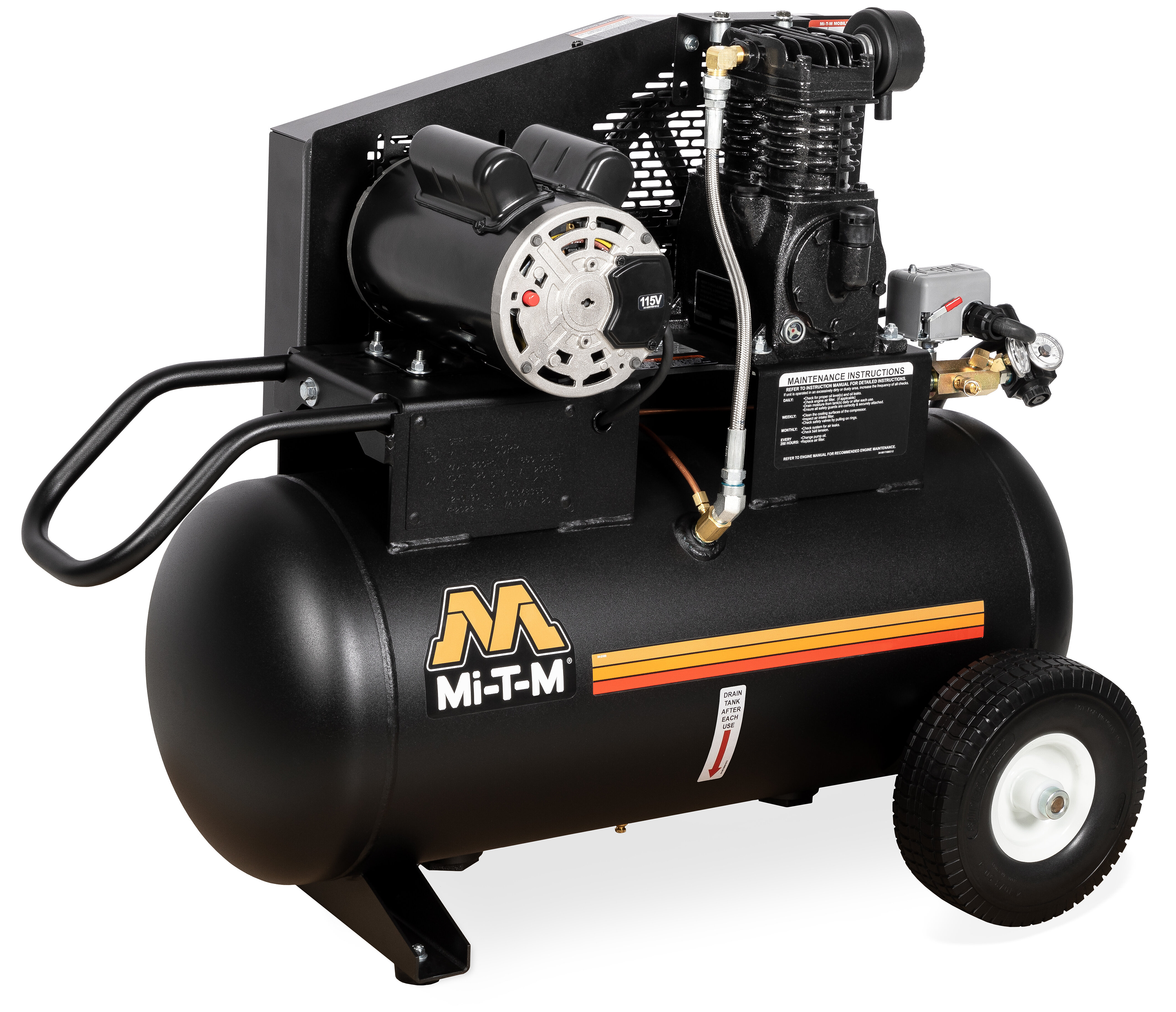

20-Gallon Single Stage Electric - AM1-PE02-20M

Get Started

AM1-PE02-20M

The 20-gallon electric air compressor easily provides the power needed for projects where running multiple air tools is a necessity.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Motor
Auto start/stop – continuous run optional · Thermal overload motor protection · 8-foot power cord

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 10-inch flat-free tires

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 10-inch fly wheel · Industrial-grade pressure switch

Specifications

CFM @ PSI

8.2 @ 90
Horsepower/Motor

2.0 HP, 120V, 18.8A
Plug Type

NEMA 5-20P

Weights & Dimensions

Net Weight

203.00 lbs.
Shipping Weight

272.00 lbs.
Length

40.00 in.
Width

24.00 in.
Height

32.00 in.

Options

AX-0002 Auto Drain/Regulator/Plastic Bowl

Drains moisture from air system
AX-0003 Manual Drain/Regulator/Metal Bowl

Drains moisture from air system
AX-0027 Stationary Kit

Converts the portable model to a stationary model, removes the wheels and adds the stationary leg
AX-0008 Dual Control

Compressor can be operated in start/stop mode or continuous run where pilot valve exhausts air to atmosphere

Videos

Links / Blog Articles

Check out the latest tips and advice

Warranty Information

1 Year Electric Motor
2 Year Pump Exchange
