30-Gallon Two Stage Diesel - ABS-9KD-30H

Get Started

ABS-9KD-30H

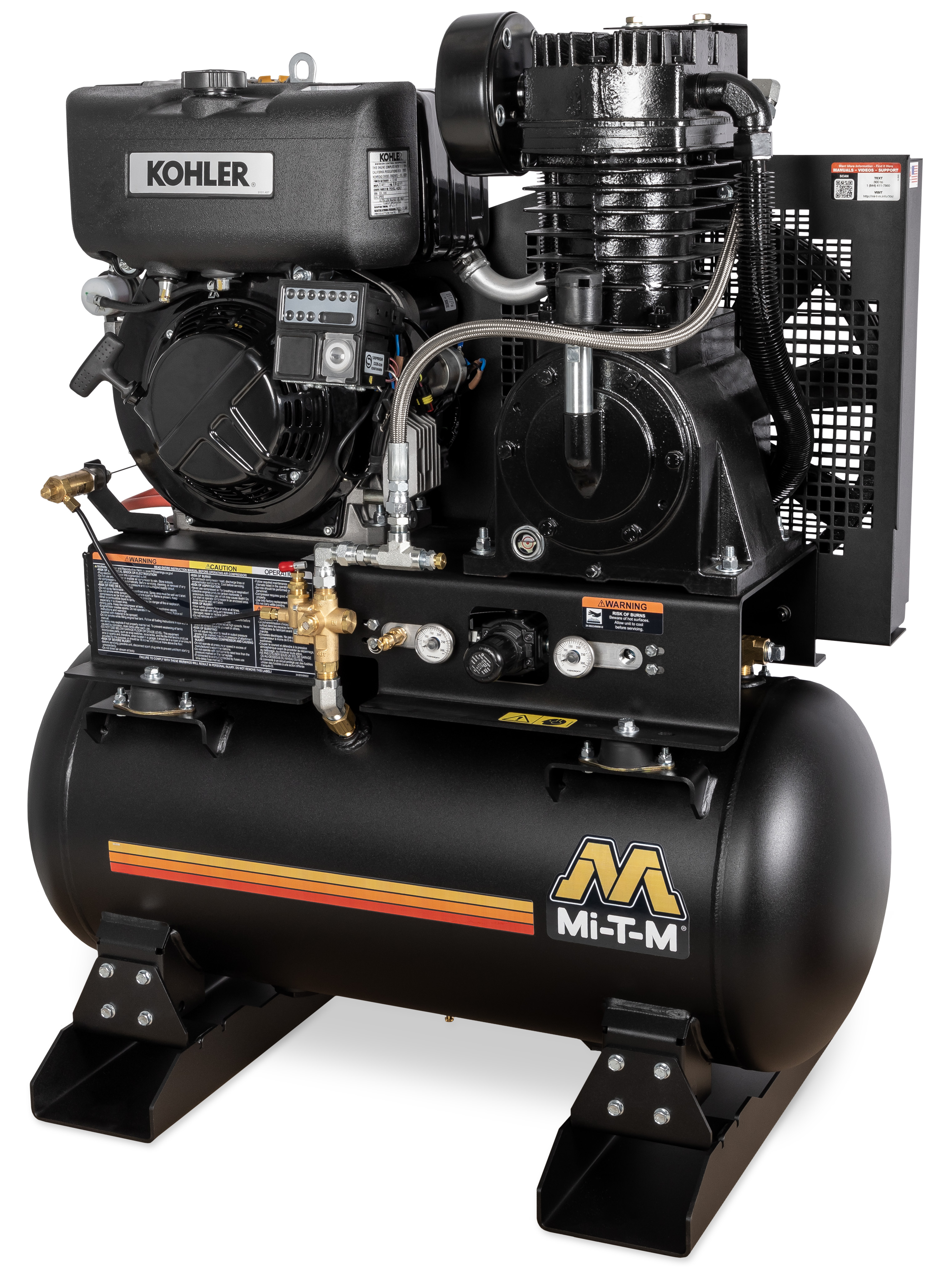

This two stage diesel-powered air compressor provides consistent and reliable air power for industrial, automotive and service body applications.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Engine
Electric start – battery, box and cables not included · Glow plug equipped for easy starting in cold temperatures

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Components
Regulator and two gauges for tank and outlet pressure · ASME safety valves · Tank drain valve

Equipped with 150-PSI maximum rated regulator.

Specifications

CFM @ PSI

29.0 @ 175
Horsepower/Engine

9.1 HP Kohler KD440 OHV
Engine Idle Control

Cable Throttle

Weights & Dimensions

Net Weight

483.00 lbs.
Shipping Weight

540.00 lbs.
Length

38.00 in.
Width

23.00 in.
Height

46.50 in.

Options

IX-0001 Vibration Isolator Pads

Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
AX-0079 Battery Box, Cables & Tray

Attaches to engine side of unit

Videos

Links / Blog Articles

Check out the latest tips and advice

Warranty Information

2 Year Pump Exchange
3 Year Kohler Engine
