30-Gallon Two Stage Gasoline - ABS-14V-30H

Get Started

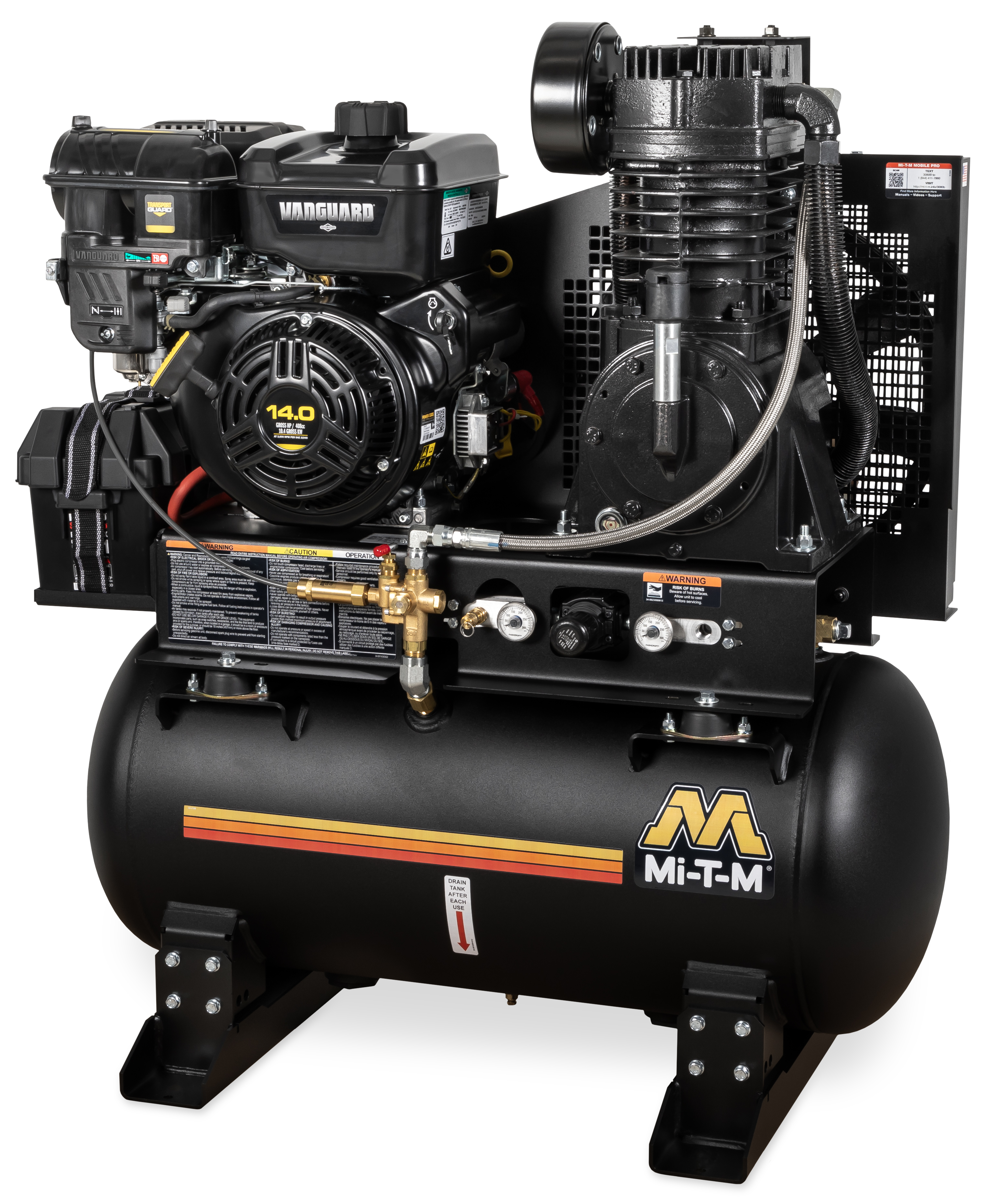

ABS-14V-30H

Commonly used for industrial and automotive applications, these air compressors can be mounted in the back of a trailer or service truck to take to the most demanding jobsites.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Engine
Electric start – battery tray, box and cables included

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Components
Regulator and two gauges for tank and outlet pressure · ASME safety valves · 16 1/2-inch fly wheel · Tank drain valve · Service truck mount kit

Equipped with 150-PSI maximum rated regulator.

Specifications

CFM @ PSI

29.0 @ 175
Displacement/ Engine

408cc Vanguard OHV
Tank Size

30-gallon
Engine Idle Control

Cable Throttle

Weights & Dimensions

Net Weight

476.00 lbs.
Shipping Weight

540.00 lbs.
Length

40.50 in.
Width

23.00 in.
Height

46.00 in.

Options

IX-0001 Vibration Isolator Pads

Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

Videos

Links / Blog Articles

Check out the latest tips and advice

Warranty Information

3 Year Vanguard Engine
