Base-Mount Two Stage Gasoline - ABS-14M-B

Get Started

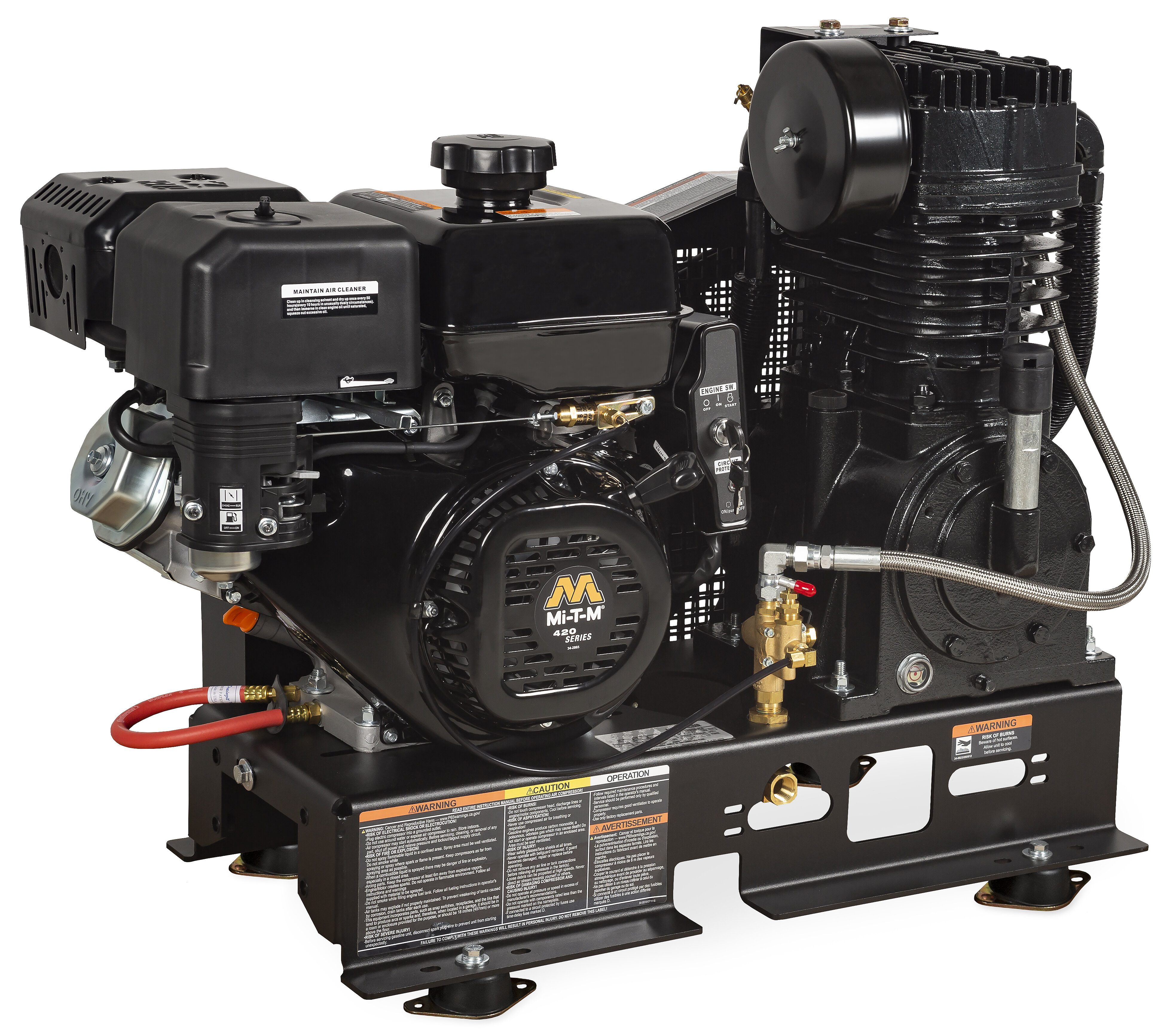

ABS-14M-B

Commonly used for industrial and automotive applications, these air compressors can be mounted in the back of a trailer or service truck to take to the most demanding jobsites.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Engine
Electric start – battery and cables not included

Frame
3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Components
Regulator and two gauges for tank and outlet pressure · ASME safety valves · 16 1/2-inch fly wheel · Tank drain valve · Service truck mount kit (standard on base-mount model)

Equipped with 150-PSI maximum rated regulator.

Specifications

CFM @ PSI

29.0 @ 175
Displacement/ Engine

420cc Mi-T-M OHV
Tank Size

Base-Mount
Engine Idle Control

Pneumatic

Weights & Dimensions

Net Weight

215.00 lbs.
Shipping Weight

279.00 lbs.
Length

36.50 in.
Width

19.00 in.
Height

28.00 in.

Options

IX-0067 Remote Start/Choke

7-foot wire extension for key switch, sealed cable

Videos

Links / Blog Articles

Check out the latest tips and advice

Warranty Information

2 Year Pump Exchange
3 Year Mi-T-M Engine
