30-Gallon Two Stage Gasoline - ABS-14M-30H

Get Started

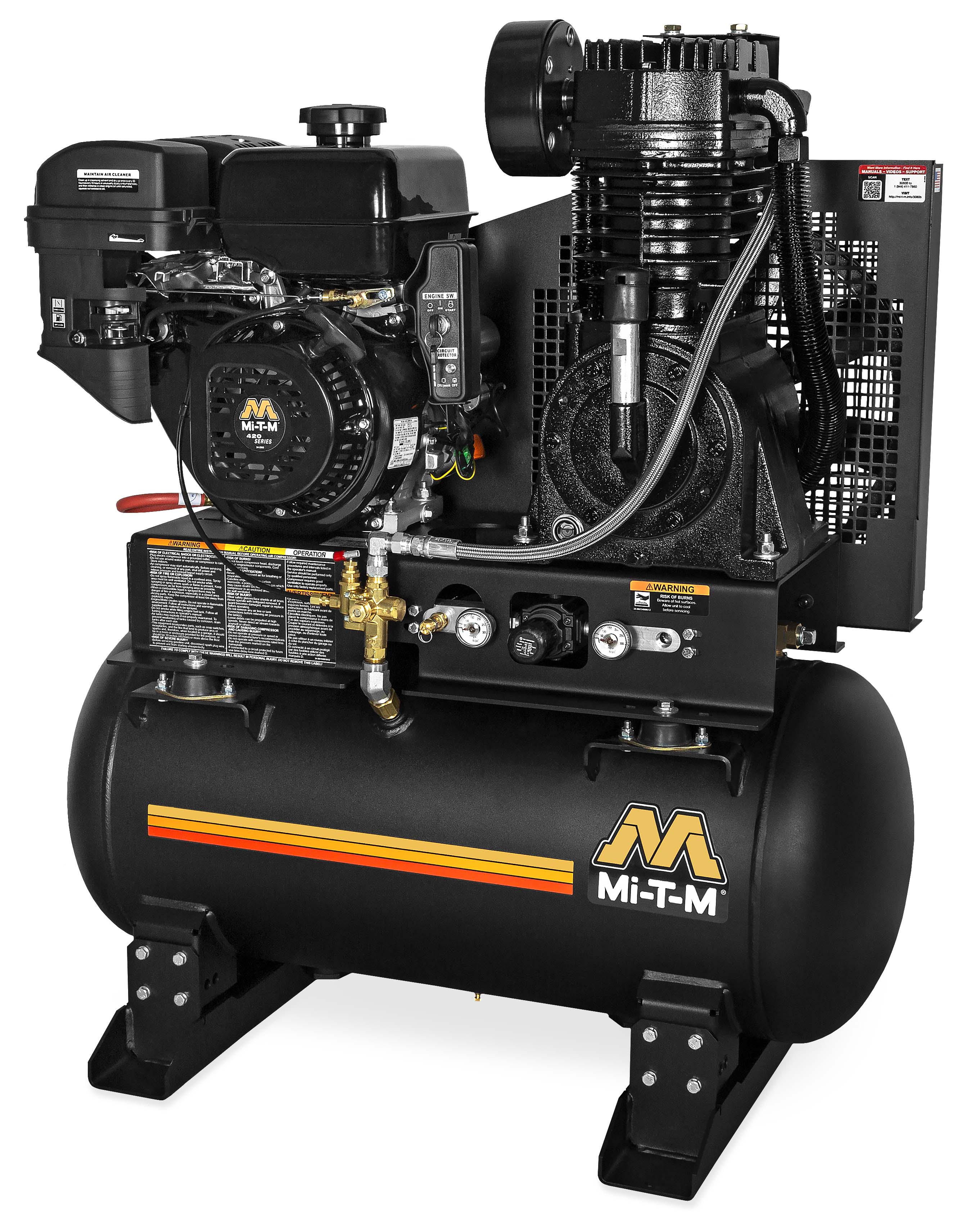

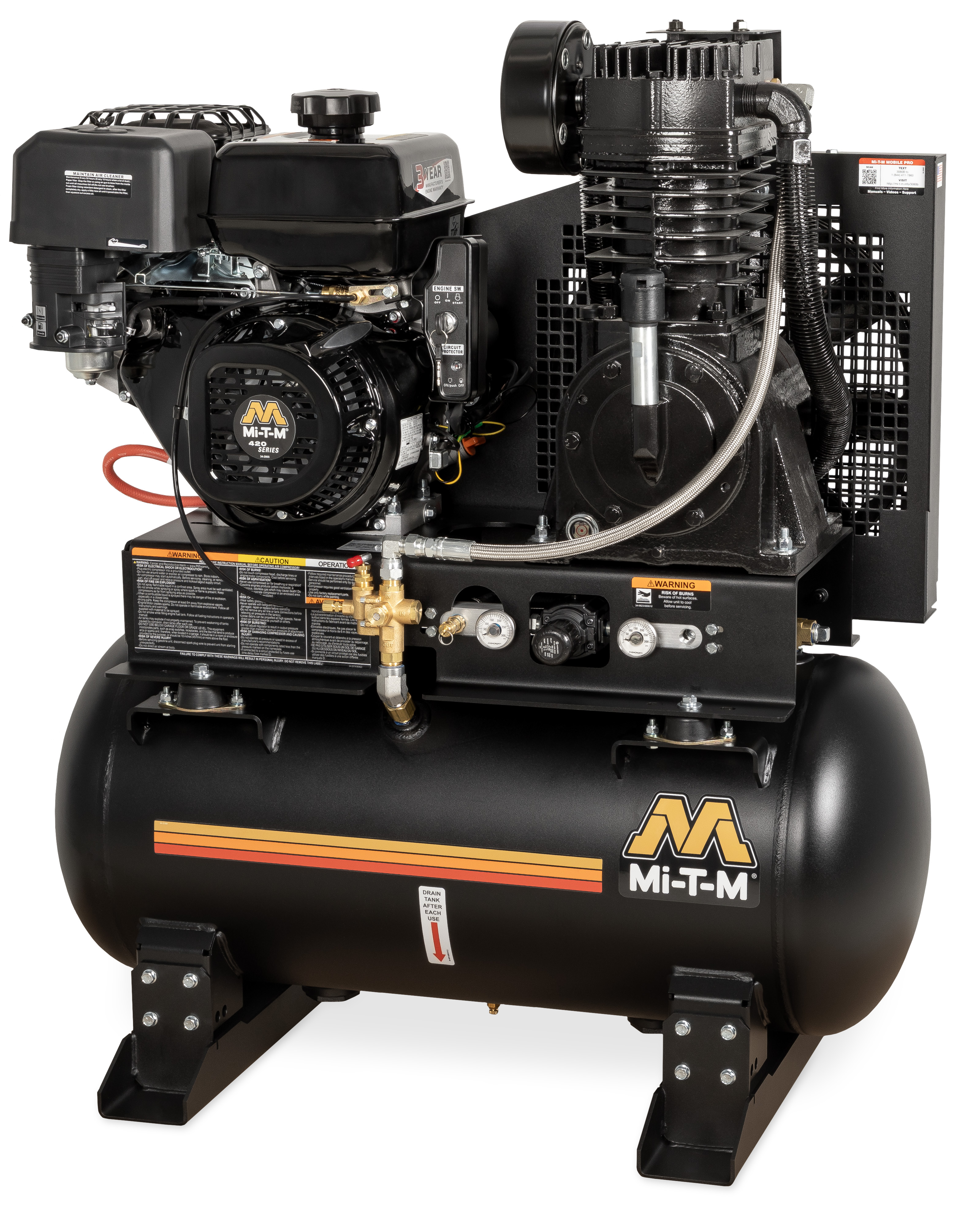

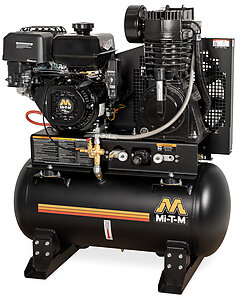

ABS-14M-30H

Commonly used for industrial and automotive applications, these air compressors can be mounted in the back of a trailer or service truck to take to the most demanding jobsites.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Engine
Electric start – battery and cables not included

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Components
Regulator and two gauges for tank and outlet pressure · ASME safety valves · 16 1/2-inch fly wheel · Tank drain valve · Service truck mount kit

Equipped with 150-PSI maximum rated regulator.

Specifications

CFM @ PSI

29.0 @ 175
Displacement/ Engine

420cc Mi-T-M OHV
Tank Size

30-gallon
Engine Idle Control

Pneumatic

Weights & Dimensions

Net Weight

416.00 lbs.
Shipping Weight

480.00 lbs.
Length

38.00 in.
Width

23.00 in.
Height

46.00 in.

Options

AX-0017 Electric Start

For easy starting - sealed battery, tray, box and cables included
AX-0077 Battery Box and Tray

Attaches to engine side of unit
IX-0001 Vibration Isolator Pads

Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
IX-0067 Remote Start/Choke

7-foot wire extension for key switch, sealed cable

Videos

Links / Blog Articles

Check out the latest tips and advice

Warranty Information

2 Year Pump Exchange
3 Year Mi-T-M Engine

Additional Info

Chat With An Expert

Find A Service Center

Support Videos
