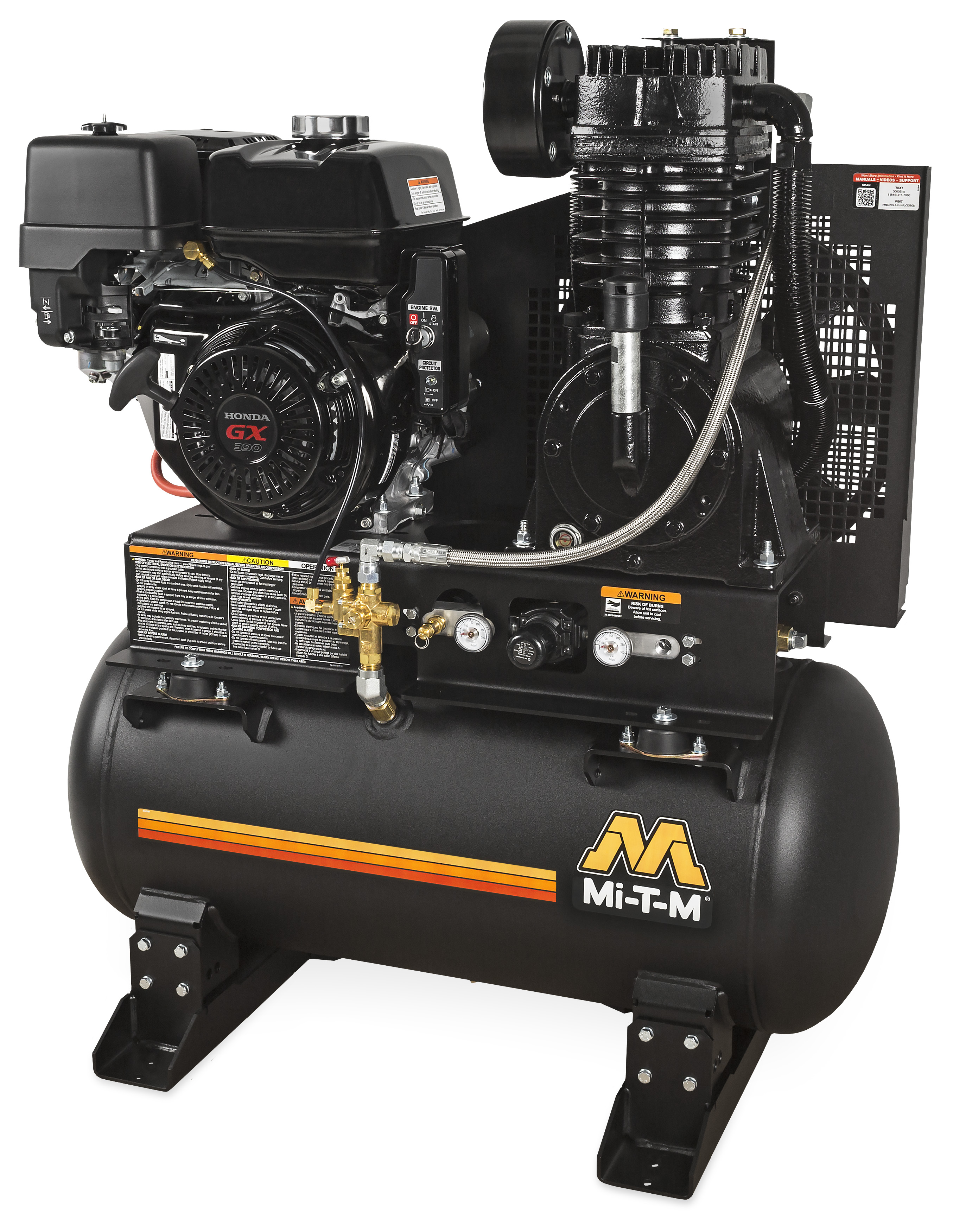

30-Gallon Two Stage Gasoline - ABS-13H-30H

ABS-13H-30H

Commonly used for industrial and automotive applications, these air compressors can be mounted in the back of a trailer or service truck to take to the most demanding jobsites.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Engine
Electric start – battery and cables not included

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation

Components
Regulator and two gauges for tank and outlet pressure · ASME safety valves · 16 1/2-inch fly wheel · Tank drain valve · Service truck mount kit

Equipped with 150-PSI maximum rated regulator.

Specifications

  • CFM @ PSI

    29.0 @ 175

  • Displacement/ Engine

    389cc Honda GX390 OHV

  • Tank Size

    30-gallon

  • Engine Idle Control

    Pneumatic

Weights & Dimensions

  • Net Weight

    416.00 lbs.

  • Shipping Weight

    480.00 lbs.

  • Length

    38.00 in.

  • Width

    23.00 in.

  • Height

    46.00 in.

Options

  • IX-0055 Remote Start/Choke

    7-foot wire extension for key switch

  • IX-0059 Remote Start/Choke

    7-foot wire extension for key switch, sealed cable

  • AX-0017 Electric Start

    For easy starting - sealed battery, tray, box and cables included

  • AX-0077 Battery Box and Tray

    Attaches to engine side of unit

  • IX-0001 Vibration Isolator Pads

    Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

Warranty Information
  • 2 Year Pump Exchange
  • 3 Year Honda Engine
Additional Info
