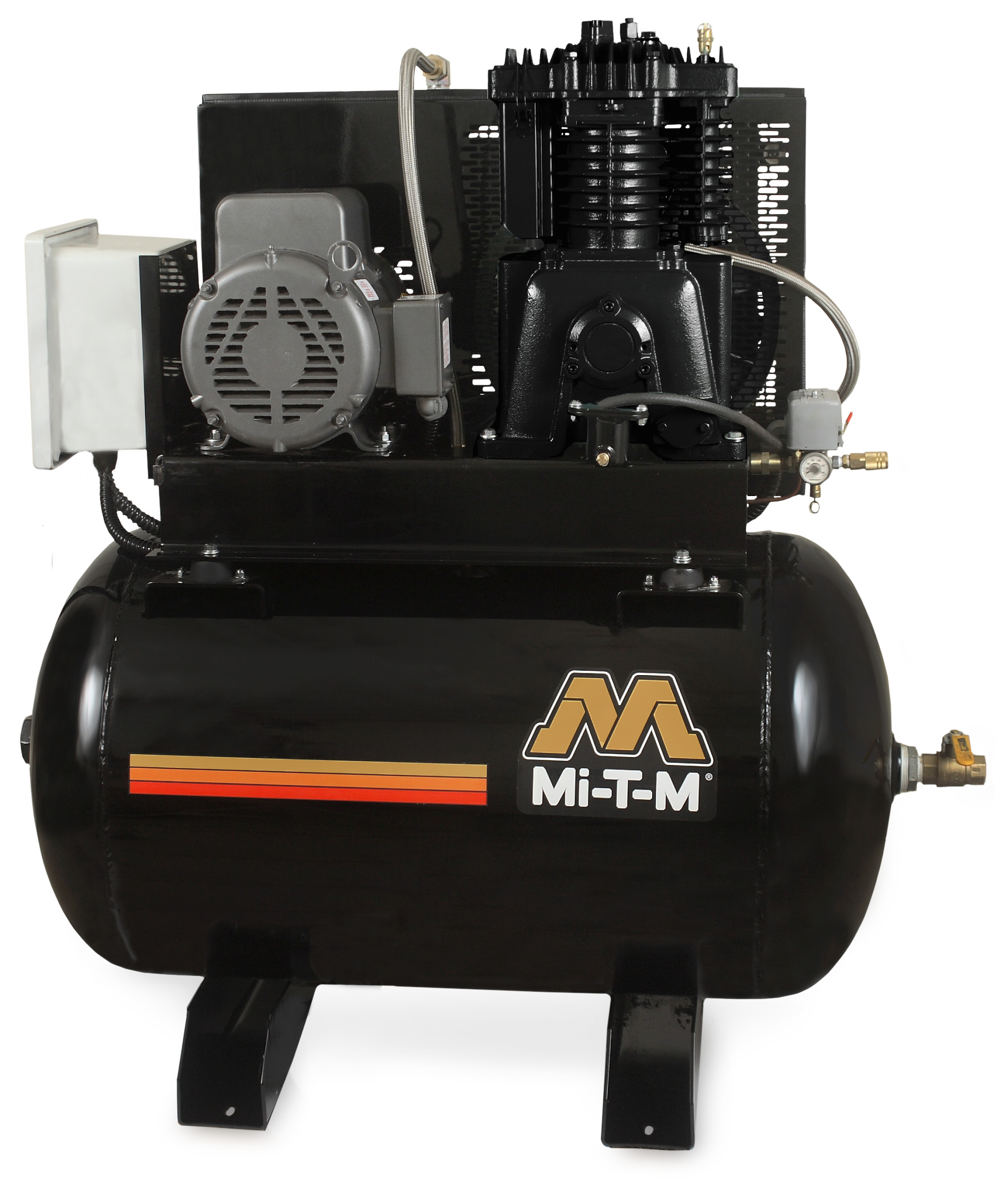

ACS M Series – 7.5 HP Simplex Horizontal

The M Series air compressors are available in many motor configurations and offer maximum air power day-in and day-out.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor
Industrial low RPM motor · Magnetic start for thermal overload protection

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve

Models Available
ACS-23175-80HM 230V, 1Ø, 31.0A 708 lb. ship wt./604 lb. net wt.
ACS-20375-80HM 200V, 3Ø, 23.0A 679 lb. ship wt./575 lb. net wt.
ACS-23375-80HM 230V, 3Ø, 20.0A 668 lb. ship wt./564 lb. net wt.
ACS-46375-80HM 460V, 3Ø, 10.0A 668 lb. ship wt./564 lb. net wt.

Specifications

CFM @ PSI

23.5 @ 175
Pump RPM

1250
Tank Size

80-gallon
Bolt Down (LxW)

20.75 x 23.5 in.

Weights & Dimensions

Net Weight

0.00 lbs.
Shipping Weight

0.00 lbs.
Length

52.00 in.
Width

26.50 in.
Height

53.00 in.

Options

No options

Videos

Links / Blog Articles

Check out the latest tips and advice

Warranty Information

1 Year Electric Motor
2 Year Pump Exchange
