80-Gallon

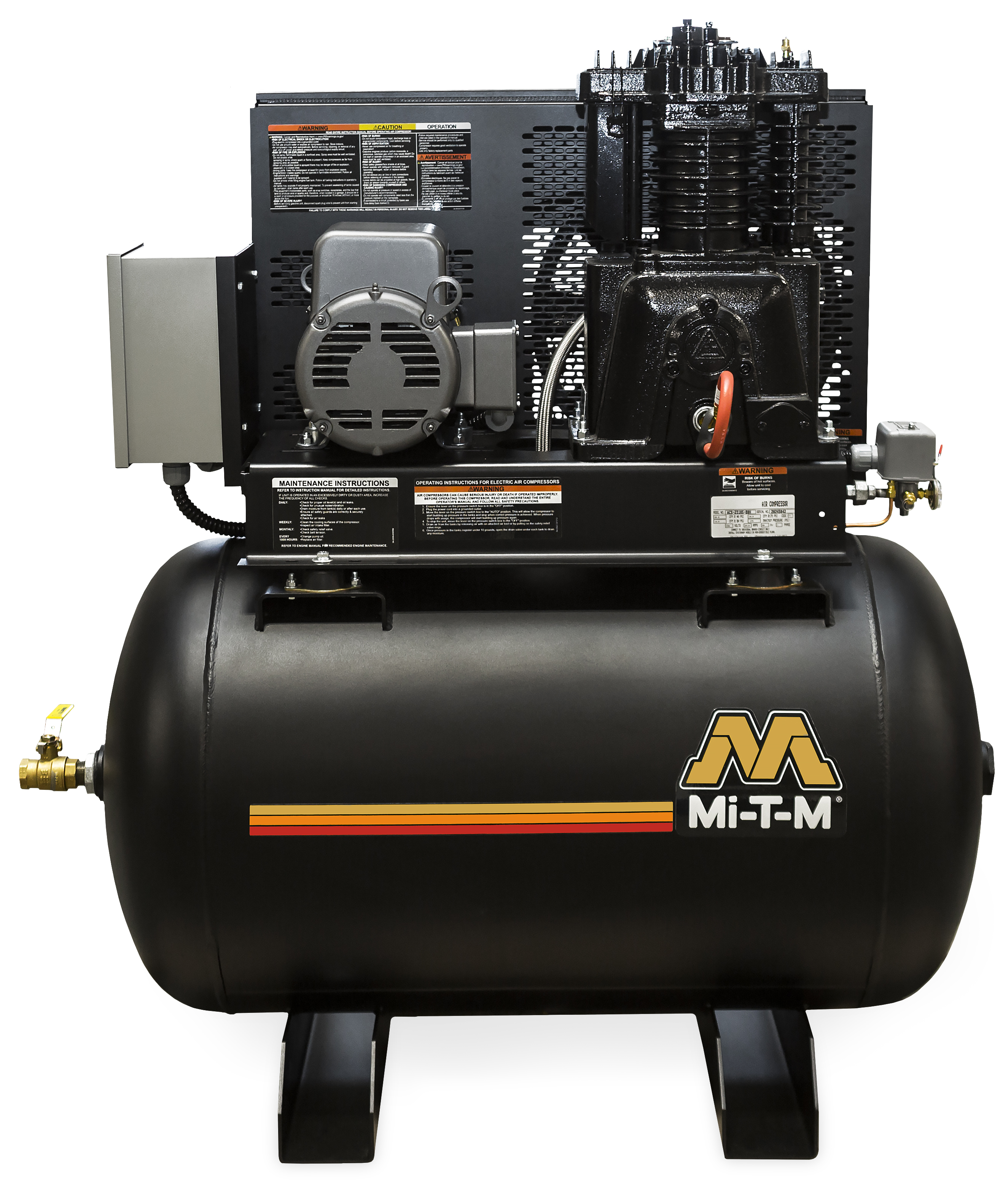

ACS Series – 7.5 HP Simplex Horizontal

These horizontal 80-gallon units are specifically designed to finish jobs quickly and efficiently in workshops, service bays and more.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor
Industrial low RPM motor · Magnetic start for thermal overload protection

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve

Models Available
ACS-23175-80H 230V, 1Ø, 31.0A 678 lb. ship wt./574 lb. net wt.
ACS-20375-80H 200V, 3Ø, 23.0A 649 lb. ship wt./545 lb. net wt.
ACS-23375-80H 230V, 3Ø, 20.0A 638 lb. ship wt./534 lb. net wt.
ACS-46375-80H 460V, 3Ø, 10.0A 638 lb. ship wt./534 lb. net wt.

Specifications

CFM @ PSI

23.5 @ 175
Pump RPM

1250
Tank Size

80-gallon
Bolt Down (LxW)

20.75 x 23.5 in.

Weights & Dimensions

Net Weight

0.00 lbs.
Shipping Weight

0.00 lbs.
Length

52.00 in.
Width

26.50 in.
Height

53.00 in.

Options

IX-0001 Vibration Isolator Pads

Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
IX-0006 Electric Tank Drain

Automatically drains liquid from compressor tank
IX-0052 After Cooler

Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10Â° of ambient
IX-0056 Pneumatic Tank Drain

Automatically drains liquid from compressor tank; unit cannot include an after cooler
IX-0057 Pneumatic Tank Drain

Automatically drains liquid from compressor tank; you must also have IX-0052 after cooler option
IX-0061 Low Oil Monitor

Low oil sensor does not allow unit to start when oil levels fall below an adequate level
IX-0062 Low Oil Monitor

Low oil sensor does not allow unit to start when oil levels fall below an adequate level
IX-0063 Low Oil Monitor

Low oil sensor does not allow unit to start when oil levels fall below an adequate level

Videos

Links / Blog Articles

Check out the latest tips and advice

Warranty Information

1 Year Electric Motor
2 Year Pump Exchange
