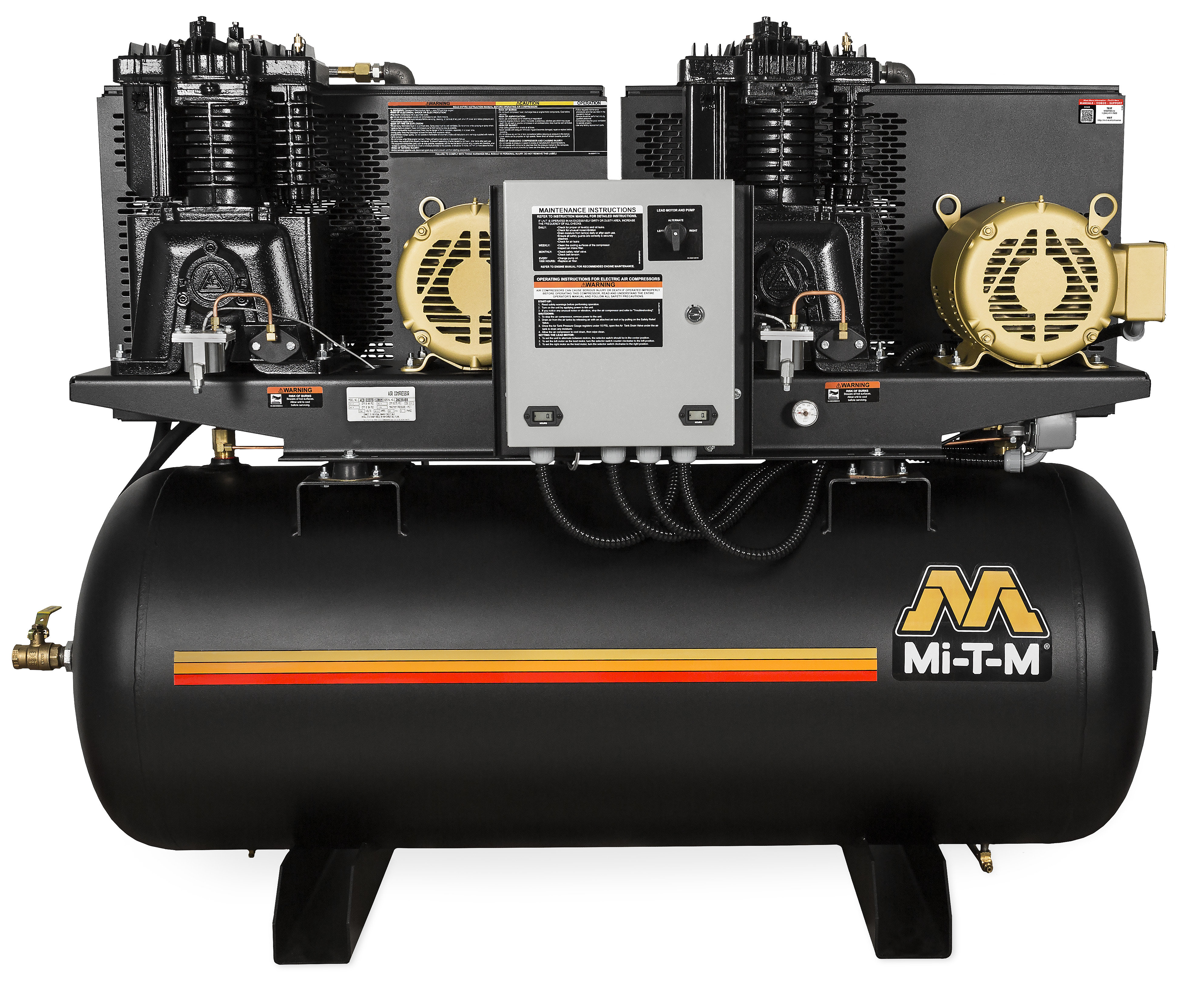

ACD M Series – 7.5 HP Duplex Horizontal - 120-Gallon
120-Gallon
ACD M Series – 7.5 HP Duplex Horizontal
The M Series air compressors are available in many motor configurations and offer maximum air power day-in and day-out.
Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator
Motor
Industrial low RPM motor · Magnetic start for thermal overload protection
Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard
Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve · 3 position switch - compressor 1 (lead motor pump), automatic alternating and compressor 2 (lead motor pump)
Models Available
ACD-23175-120HM 230V, 1Ø, 62.0A 1109 lb. ship wt./1005 lb. net wt.
ACD-20375-120HM 200V, 3Ø, 46.0A 1151 lb. ship wt./1047 lb. net wt.
ACD-23375-120HM 230V, 3Ø, 40.0A 1029 lb. ship wt./925 lb. net wt.
ACD-46375-120HM 460V, 3Ø, 20.0A 1029 lb. ship wt./925 lb. net wt.
Specifications
-
CFM @ PSI
46.4 @ 175
-
Pump RPM
1250
-
Tank Size
120-gallon
-
Bolt Down (LxW)
34.5 x 23.5 in.
Weights & Dimensions
-
Net Weight
0.00 lbs.
-
Shipping Weight
0.00 lbs.
-
Length
74.00 in.
-
Width
26.50 in.
-
Height
58.00 in.
Options
- No options
Warranty Information
- 1 Year Electric Motor
- 2 Year Pump Exchange
