ACD M Series – 5.0 HP Duplex Horizontal - 120-Gallon

expand-icon

Resources

Find A Local Dealer

Get Started

120-Gallon

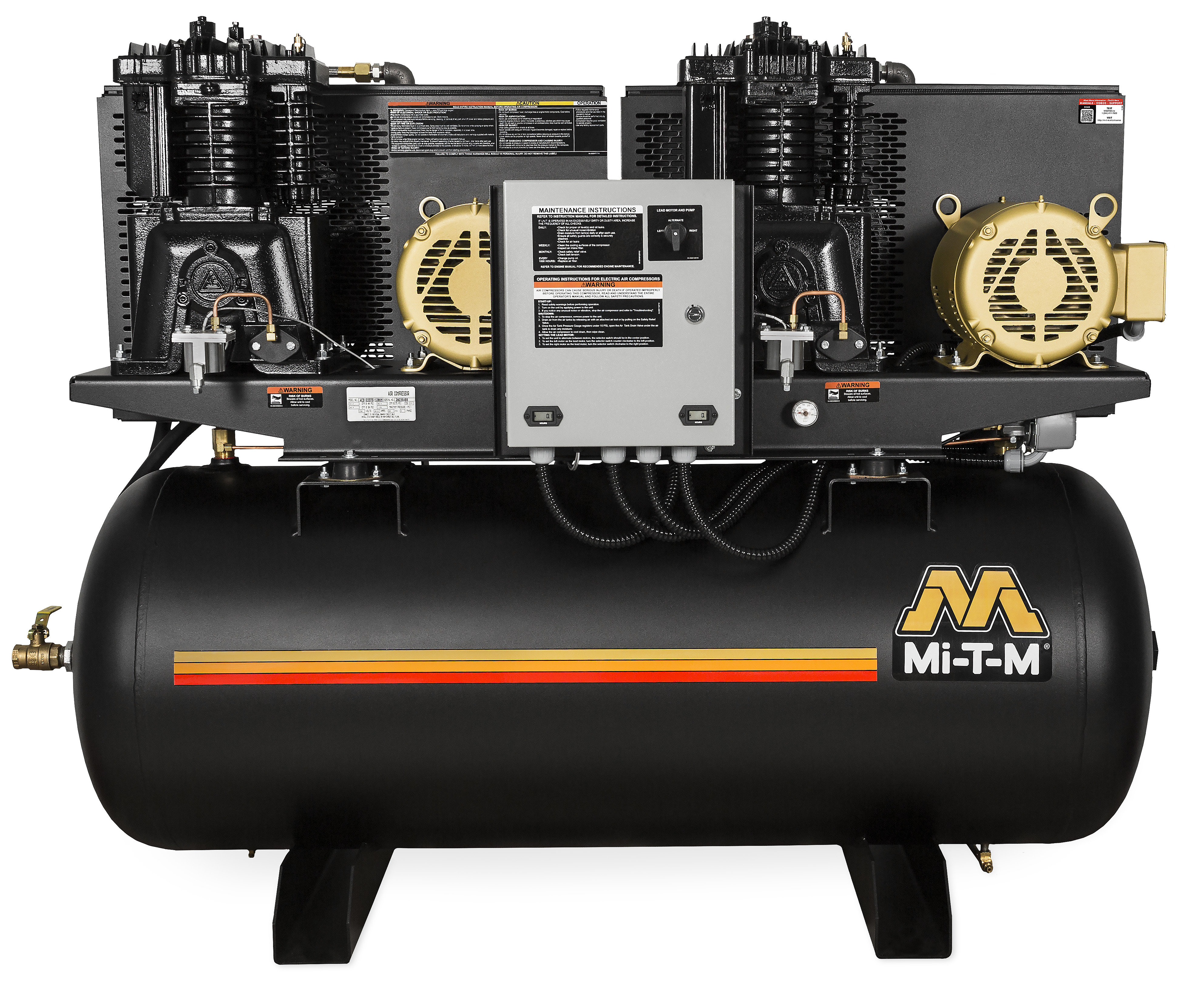

ACD M Series – 5.0 HP Duplex Horizontal

The M Series air compressors are available in many motor configurations and offer maximum air power day-in and day-out.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor
Industrial low RPM motor · Magnetic start for thermal overload protection

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve · 3 position switch - compressor 1 (lead motor pump), automatic alternating and compressor 2 (lead motor pump)

Models Available
ACD-23105-120HM    230V, 1Ø, 46.0A    1073 lb. ship wt./969 lb. net wt.
ACD-20305-120HM    200V, 3Ø, 32.2A    1013 lb. ship wt./909 lb. net wt.
ACD-23305-120HM    230V, 3Ø, 27.6A       985 lb. ship wt./881 lb. net wt.
ACD-46305-120HM    460V, 3Ø, 13.8A       985 lb. ship wt./881 lb. net wt.

Specifications

  • CFM @ PSI

    36.0 @ 175

  • Pump RPM

    860

  • Tank Size

    120-gallon

  • Bolt Down (LxW)

    34.5 x 23.5 in.

Weights & Dimensions

  • Net Weight

    0.00 lbs.

  • Shipping Weight

    0.00 lbs.

  • Length

    74.00 in.

  • Width

    26.50 in.

  • Height

    58.00 in.

Options

  • No options
Warranty Information
  • 1 Year Electric Motor
  • 2 Year Pump Exchange
