ADD Series â€“ 10.0 HP Duplex Horizontal - 120-Gallon

Get Started

120-Gallon

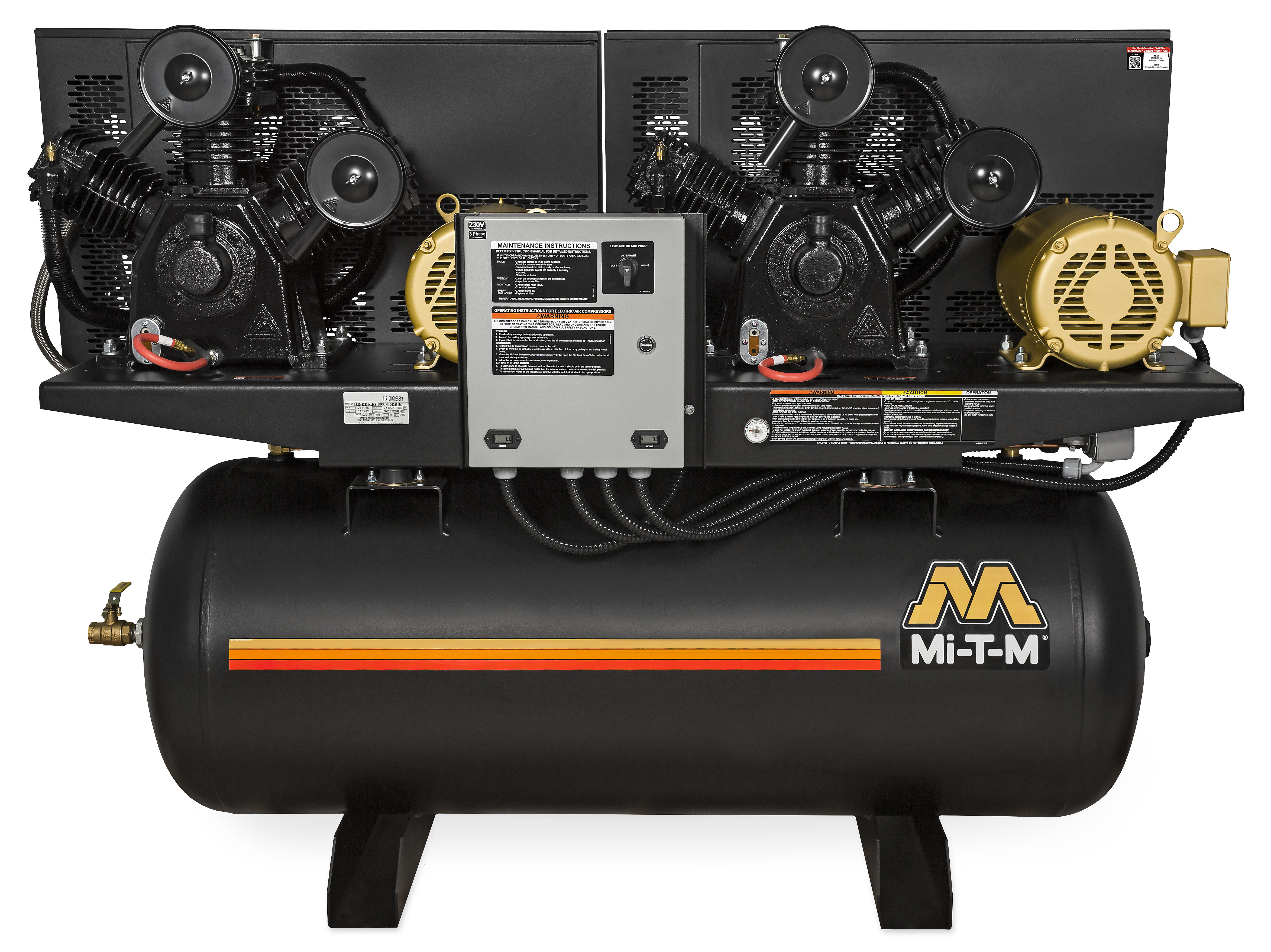

ADD Series – 10.0 HP Duplex Horizontal

These horizontal 120-gallon units are specifically designed to finish jobs quickly and efficiently in workshops, service bays and more.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor
Industrial low RPM motor · Magnetic start for thermal overload protection

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve · 3 position switch - compressor 1 (lead motor pump), automatic alternating and compressor 2 (lead motor pump)

Models Available
ADD-23110-120H 230V, 1Ø, 78.0A 1373 lb. ship wt./1223 lb. net wt.
ADD-20310-120H 200V, 3Ø, 61.6A 1333 lb. ship wt./1183 lb. net wt.
ADD-23310-120H 230V, 3Ø, 53.6A 1313 lb. ship wt./1163 lb. net wt.
ADD-46310-120H 460V, 3Ø, 26.8A 1313 lb. ship wt./1163 lb. net wt.

Specifications

CFM @ PSI

68.4 @ 175
Pump RPM

990
Tank Size

120-gallon
Bolt Down (LxW)

34.5 x 23.5 in.

Weights & Dimensions

Net Weight

0.00 lbs.
Shipping Weight

0.00 lbs.
Length

74.00 in.
Width

26.50 in.
Height

58.00 in.

Options

IX-0001 Vibration Isolator Pads

Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
IX-0006 Electric Tank Drain

Automatically drains liquid from compressor tank
IX-0032 Pneumatic Tank Drain

Automatically drains liquid from compressor tank
IX-0034 After Cooler

Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10Â° of ambient
IX-0064 Low Oil Monitor

Low oil sensor does not allow unit to start when oil levels fall below an adequate level
IX-0065 Low Oil Monitor

Low oil sensor does not allow unit to start when oil levels fall below an adequate level
IX-0066 Low Oil Monitor

Low oil sensor does not allow unit to start when oil levels fall below an adequate level

Videos

Links / Blog Articles

Check out the latest tips and advice

Warranty Information

1 Year Electric Motor
2 Year Pump Exchange
