120-Gallon

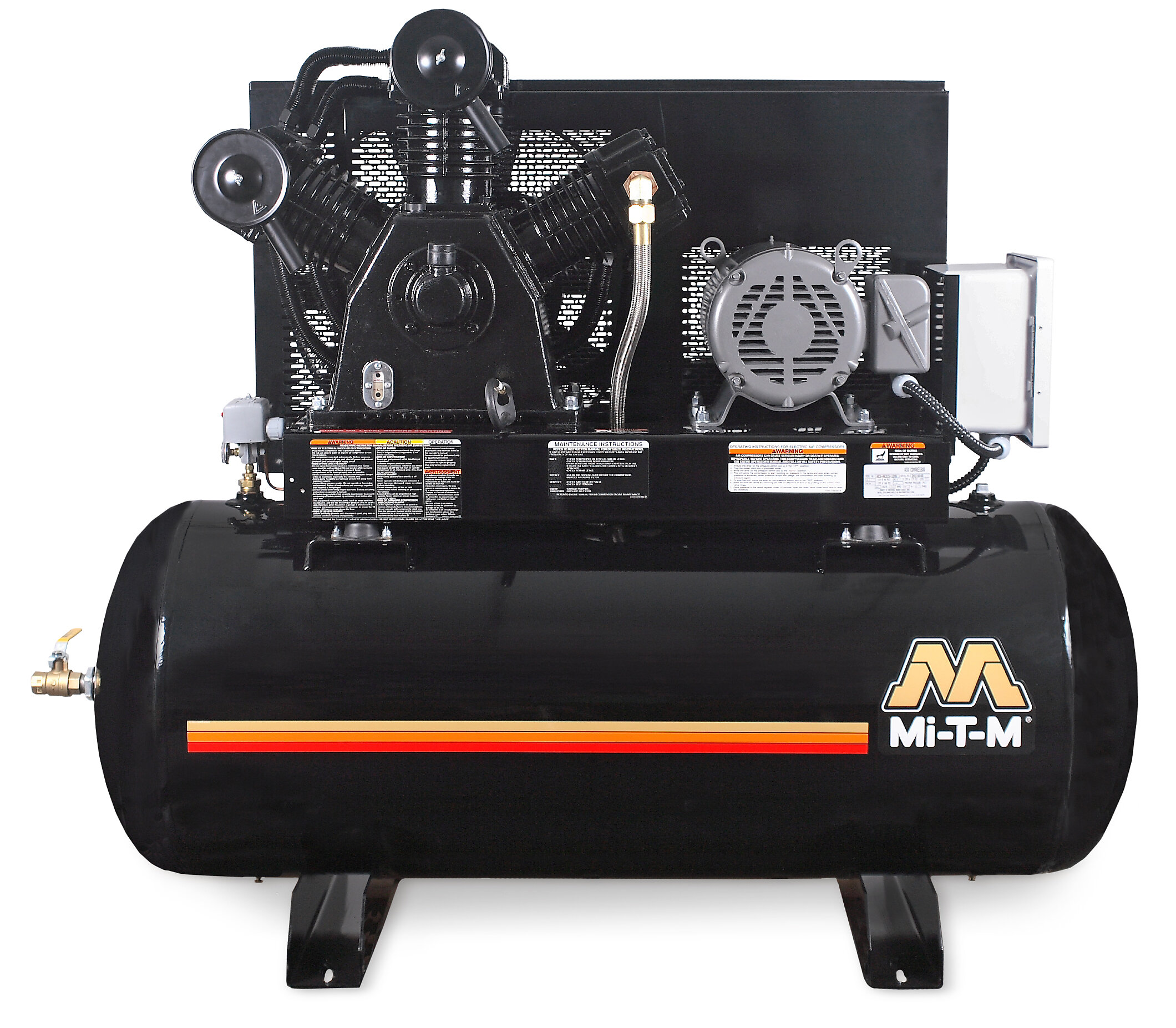

AES Series – 15.0 HP Simplex Horizontal

These horizontal 120-gallon units are specifically designed to finish jobs quickly and efficiently in workshops, service bays and more.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor
Industrial low RPM motor · Magnetic start for thermal overload protection

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve

Models Available
AES-20315-120H 200V, 3Ø, 44.0A 1178 lb. ship wt./1028 lb. net wt.
AES-23315-120H 230V, 3Ø, 38.0A 1163 lb. ship wt./1013 lb. net wt.
AES-46315-120H 460V, 3Ø, 19.0A 1163 lb. ship wt./1013 lb. net wt.

Specifications

CFM @ PSI

46.5 @ 175
Pump RPM

776
Tank Size

120-gallon
Bolt Down (LxW)

34.5 x 23.5 in.

Weights & Dimensions

Net Weight

0.00 lbs.
Shipping Weight

0.00 lbs.
Length

74.00 in.
Width

26.50 in.
Height

58.00 in.

Options

IX-0001 Vibration Isolator Pads

Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
IX-0004 After Cooler

Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10Â° of ambient
IX-0006 Electric Tank Drain

Automatically drains liquid from compressor tank
IX-0032 Pneumatic Tank Drain

Automatically drains liquid from compressor tank
IX-0064 Low Oil Monitor

Low oil sensor does not allow unit to start when oil levels fall below an adequate level
IX-0065 Low Oil Monitor

Low oil sensor does not allow unit to start when oil levels fall below an adequate level
IX-0066 Low Oil Monitor

Low oil sensor does not allow unit to start when oil levels fall below an adequate level

Videos

Links / Blog Articles

Check out the latest tips and advice

Warranty Information

1 Year Electric Motor
2 Year Pump Exchange
