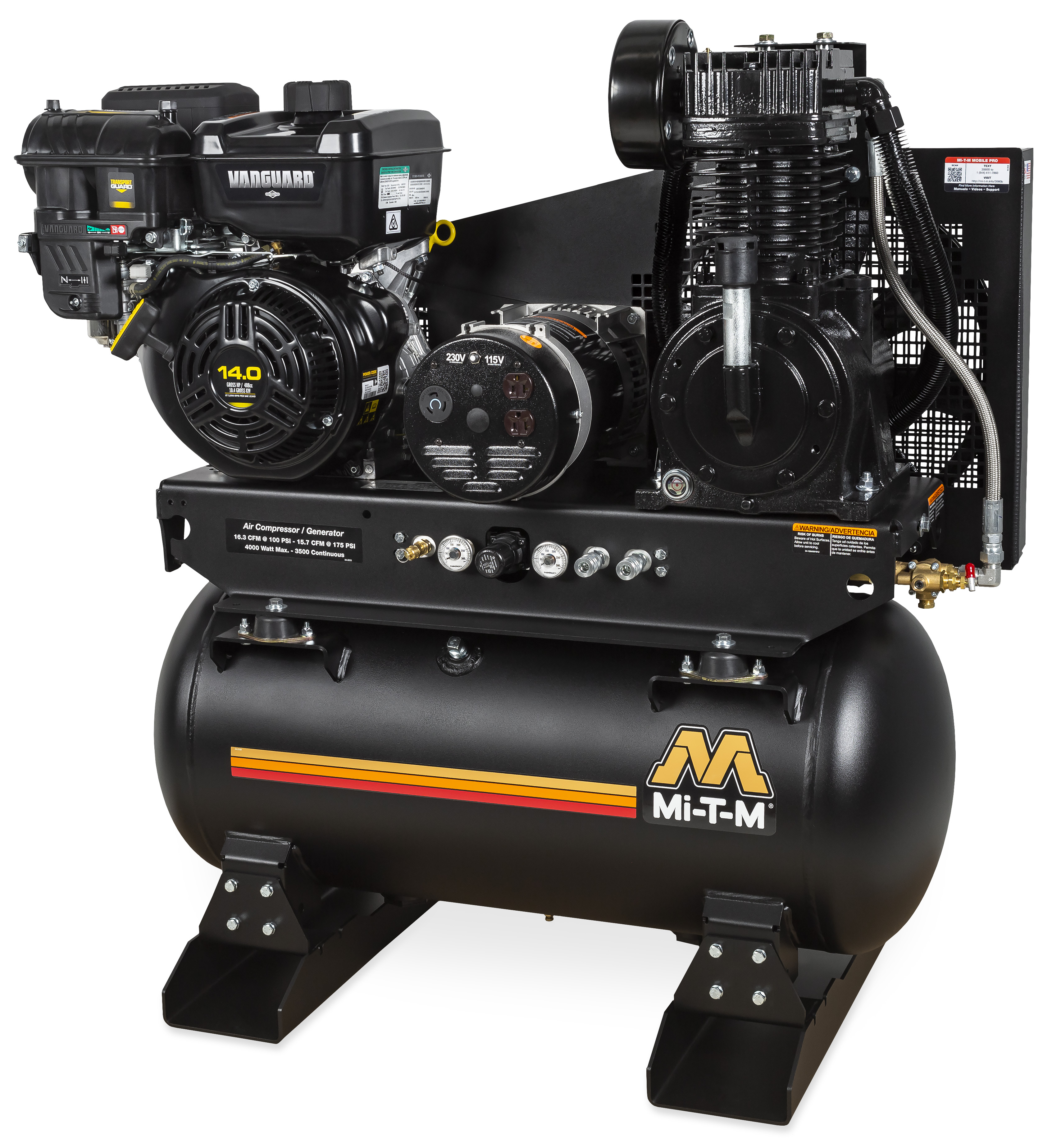

30-Gallon Two Stage Gasoline Combination - AG2-SV14-30M

Get Started

AG2-SV14-30M

The 30-gallon two stage air compressor/generators tie two units into one for optimal power remodelers, contractors and DIYers appreciate.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator
Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A and (1) NEMA L6-20R 240V, 20A receptacles

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 ½-inch fly wheel · Quality pilot valve unloader

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
Equipped with 150-PSI maximum rated regulator.

Specifications

CFM @ PSI

16.4 @ 90
CFM @ PSI

15.7 @ 175
Alternator Wattage: Max. Output

4000 watts
Alternator Wattage: Cont. with Comp. On-Load

2300 watts
Alternator Wattage: Cont. with Comp. Off-Load

3500 watts
Displacement/ Engine

408cc Vanguard OHV

Weights & Dimensions

Net Weight

450.00 lbs.
Shipping Weight

550.00 lbs.
Length

40.00 in.
Width

24.50 in.
Height

45.00 in.

Options

IX-0001 Vibration Isolator Pads

Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
AX-0063 Lifting Hook

For easier portability
AX-0083 Idle Down

When activated it automatically throttles down engine to conserve fuel

Warranty Information

2 Year Alternator
2 Year Pump Exchange
3 Year Vanguard Engine
