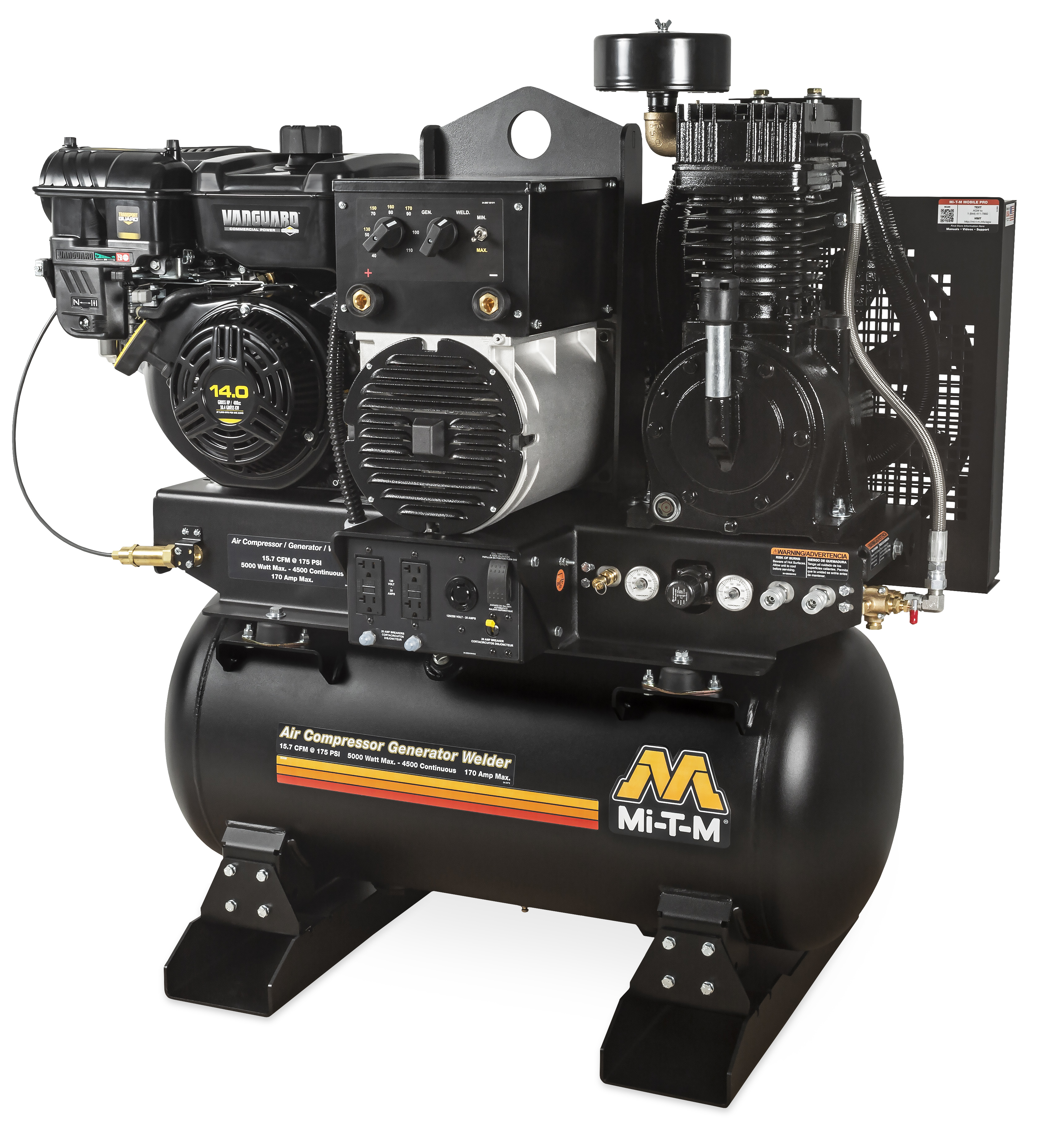

Two Stage Gasoline 30-Gallon - AGW-SV14-30M

air compressor generator welder
expand-icon

Resources

Find A Local Dealer

Get Started

AGW-SV14-30M

This AGW Series combines an air compressor, generator and welder into one machine, making it the complete on-site unit to efficiently tackle numerous jobs at once.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator
Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings

Welder
Amperage selection switch, 170A or 220A maximum

Frame
Powder coated ASME receiver tank · Powder coated two-piece belt guard

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 1/2-inch fly wheel

AGW Series Operation
Generator Mode
AC current only · Selector switch set to idle down · Switch is set to full throttle

Welder Mode
DC current only · Engine must be running full throttle · Selector switch must be set to full throttle

Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
Equipped with 150-PSI maximum rated regulator.

Specifications

  • Displacement/ Engine

    408cc Vanguard OHV with electric start - battery and battery cables not included

  • Rated Speed

    3600 RPM

  • CFM @ 90 PSI

    16.4

  • CFM @ 175 PSI*

    15.7

  • Tank Size

    30-gallon

  • Max. AC Output

    5000 watts

  • Rated AC Output

    4500 watts

  • Alternator Wattage: Cont. On-Load @ 90 PSI

    3000 watts

  • Alternator Wattage: Cont. On-Load @ 175 PSI

    2500 watts

  • Frequency/Voltage

    60Hz/120V/240V

  • Max. Amps (120V/240V)

    41.5/20.8 Off-Load

  • Cont. Amps (120V/240V)

    37.5/18.8 Off-Load

  • Receptacles

    (2) 120V, 20A GFCI Duplex; (1) 120V/240V, 20A Twist Lock

  • Duty Cycle (10 Min. Run Time)

    150A @ 100%

  • DC Voltage

    50-170A Working Range

  • Fuel Tank

    1.53-gallon

Weights & Dimensions

  • Net Weight

    605.00 lbs.

  • Shipping Weight

    670.00 lbs.

  • Length

    46.00 in.

  • Width

    22.00 in.

  • Height

    47.00 in.

Options

  • IX-0001 Vibration Isolator Pads

    Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications

  • AX-0070 Battery Tray, Box and 2-Foot of Cables

    Attaches to engine side of unit

  • AX-0016 Battery, Battery Tray, Box and 2-Foot Cables

    Attaches to engine side of unit

Warranty Information
  • 2 Year Alternator
  • 2 Year Pump Exchange
  • 3 Year Vanguard Engine
